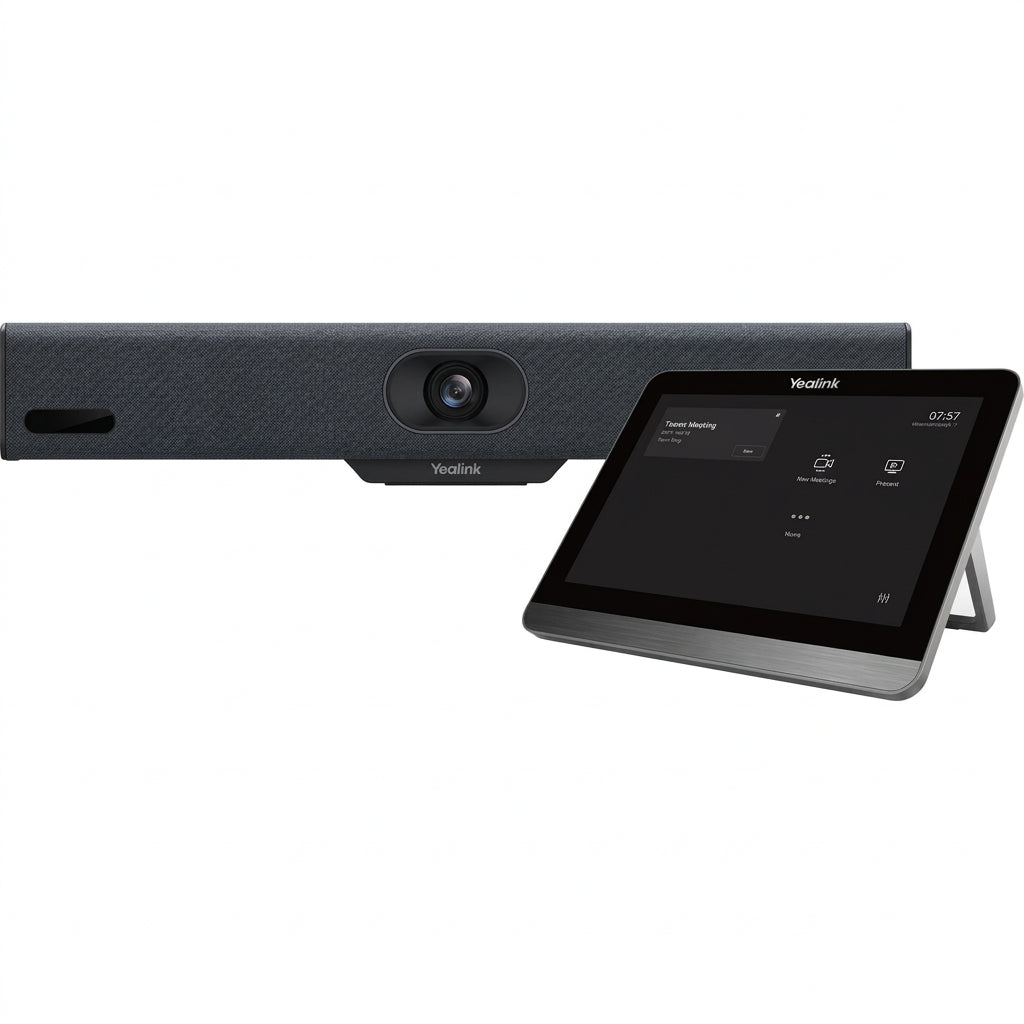

Yealink A10-020 MeetingBar A10 4K Video Bar with CTP18 Touch Panel

Yealink A10-020 MeetingBar A10 Video Conferencing Kit with CTP18 Touch Panel

The Yealink A10-020 MeetingBar A10 Video Conferencing Kit combines a 4K conference camera, eight-microphone array, integrated speaker, and CTP18 8-inch touchscreen controller. Designed for home offices, huddle rooms, and small meeting spaces, this Android-based conferencing system supports Microsoft Teams, Zoom, intelligent camera tracking, and centralized meeting control.

Built for businesses, hybrid workplaces, and professional collaboration environments, the MeetingBar A10 delivers an integrated solution for video conferencing without requiring separate cameras, microphones, and speakerphones. Its 120-degree diagonal field of view accommodates multiple participants in compact meeting rooms, while AI-powered Auto Framing and Speaker Tracking automatically adjust the camera view. Eight built-in MEMS microphones use beamforming, noise reduction, and acoustic echo cancellation to improve speech intelligibility. The integrated 5W speaker supports full-duplex conversations, allowing participants to speak and listen simultaneously during meetings.

The included Yealink CTP18 collaboration touch panel provides an intuitive interface for joining calls, adjusting camera settings, and managing meeting functions. Its 8-inch IPS capacitive touchscreen supports 10-point multitouch input and Power over Ethernet connectivity. The MeetingBar A10 features integrated Wi-Fi, Bluetooth, an electronically controlled privacy shutter, and multiple wired connections. Native Microsoft Teams and Zoom functionality, USB device mode, and centralized device management support flexible deployment across corporate offices, conference rooms, and hybrid meeting environments.

Key Features

• All-in-One Video Conferencing System: Integrates a 4K camera, microphones, speaker, Android computing platform, and networking capabilities into one compact conference bar.
• CTP18 Touchscreen Controller Included: Features an 8-inch IPS display with 1280 x 800 resolution for meeting management, camera adjustments, and collaboration controls.
• Intelligent Camera Framing: Uses automatic participant framing, speaker tracking, and electronic pan-tilt-zoom functionality to maintain appropriate camera views during meetings.
• Eight-Microphone Beamforming Array: Captures voices throughout small meeting spaces while AI noise reduction and acoustic echo cancellation help minimize unwanted background sounds.
• Microsoft Teams and Zoom Support: Supports native conferencing applications and device mode for compatible computer-based meeting workflows.
• Electronic Privacy Shutter: Provides an integrated camera cover that electronically closes when video capture is not required.
• Flexible Network Connectivity: Includes dual-band Wi-Fi, Bluetooth 4.2, Gigabit Ethernet, HDMI, USB, and Yealink VCH connectivity for integration into professional meeting rooms.
• Centralized Device Management: Supports compatible Yealink, Microsoft Teams, and Zoom management platforms for remote configuration, monitoring, and system maintenance.

Technical Specifications

General Specifications

• Brand: Yealink
• Manufacturer Part Number: A10-020
• Manufacturer Product Number: 1203684
• Product Type: All-in-One Video Conferencing System with Touch Controller
• Video Conferencing Bar: Yealink MeetingBar A10
• Touch Controller: Yealink CTP18
• Recommended Applications: Home Offices, Huddle Rooms, Small Conference Rooms
• Conferencing Platforms: Microsoft Teams, Zoom
• Additional Operating Mode: USB Device Mode
• MeetingBar Operating System: Android 13
• Touch Controller Operating System: Android 10
• Supported Collaboration Features: Meeting Calendar, One-Touch Join, Content Sharing, Meeting Controls

MeetingBar A10 Camera Specifications

• Camera Type: Integrated 4K Conference Camera
• Supported Conferencing Video Resolutions: 1080p at 30 fps, 720p at 30 fps
• Diagonal Field of View: 120 Degrees
• Horizontal Field of View: 105 Degrees
• Camera Zoom: 4x Electronic Pan-Tilt-Zoom
• Automatic Framing: Supported
• Speaker Tracking: Supported
• Multi-Focus Framing: Supported
• Smart Gallery: Supported with Compatible Zoom Configurations
• Camera Privacy: Electronic Privacy Shutter
• Supported Video Codecs: H.264, H.264 High Profile, H.264 SVC

MeetingBar A10 Audio Specifications

• Microphone Configuration: 8 x Integrated MEMS Microphones
• Microphone Technology: Beamforming Microphone Array
• Maximum Specified Voice Pickup Distance: Approximately 14.8 ft
• High-Quality Voice Pickup Distance: Approximately 11.5 ft
• Microphone Frequency Response: 100 Hz - 8 kHz
• Noise Reduction: AI-Based Noise Cancellation
• Acoustic Processing: Echo Cancellation and Dereverberation
• Automatic Gain Control: Supported
• Audio Communication: Full Duplex
• Speaker Configuration: Integrated High-Fidelity Speaker
• Speaker Rated Power: 5W
• Speaker Maximum Power: 8W
• Speaker Frequency Response: 210 Hz - 20 kHz
• Speaker Output: 88 dB SPL at 1W, 93 dB SPL at 3W, Measured at 1.6 ft
• Speaker Sensitivity: 84 dB SPL at 1W, Measured at 1.6 ft
• Audio Sampling Rate: 48 kHz
• Speaker Impedance: 4 Ohms
• Total Harmonic Distortion: Less than 5% at 5W, 1 kHz
• Speaker Sound Direction: Forward-Facing

MeetingBar A10 Connectivity

• HDMI Connection: 1 x HDMI Output with CEC Support
• USB Connection: 1 x USB 2.0
• USB-C Connection: 1 x USB-C for Content Sharing
• Audio Connection: 1 x Line Input/Output
• Ethernet Connection: 1 x RJ45 10/100/1000 Mbps
• Yealink Expansion Connection: 1 x VCH Port (RJ45)
• Power Connection: 1 x DC Power Input
• Security: Integrated Security Lock Slot
• System Reset: Integrated Reset Access
• Wireless Networking: Dual-Band Wi-Fi, 2.4 GHz and 5 GHz
• Bluetooth Version: Bluetooth 4.2
• IP Networking: IPv4 and IPv6
• IP Configuration: DHCP and Static IP
• Network Security: TLS 1.2/1.3, AES 256-Bit Encryption
• Network Management: HTTP/HTTPS
• Network Protocols: VLAN, LLDP, IEEE 802.1X, SNTP
• Quality of Service: IEEE 802.1p/q, DiffServ

CTP18 Collaboration Touch Panel Specifications

• Controller Model: Yealink CTP18
• Display Size: 8"
• Display Technology: IPS Capacitive Touchscreen
• Display Resolution: 1280 x 800
• Display Aspect Ratio: 16:10
• Touch Interface: 10-Point Multitouch
• Operating System: Android 10
• Meeting Controls: Join, Answer, Hang Up, Camera Adjustment, Participant Layout, Audio and Video Controls
• Content Annotation: Supported with Compatible Conferencing and Content-Sharing Configurations
• Wired Network Interface: 1 x RJ45 Ethernet
• USB Interface: 1 x USB-C for Device Debugging
• Wireless Networking: Dual-Band Wi-Fi, 2.4 GHz and 5 GHz
• Additional Wireless Connectivity: Bluetooth and Ultrasonic Connectivity
• Power Technology: Power over Ethernet, IEEE 802.3af
• Power Input: 48V DC, 0.27A via PoE
• Normal Operating Power Consumption: 7W
• Maximum Power Consumption: 8W
• Adjustable Stand: 28-50 Degrees
• Installation Options: Tabletop or Wall Mounting
• Dimensions at 50-Degree Stand Position (L x W x H): 5.9" x 8" x 3.9"
• Dimensions at 28-Degree Stand Position (L x W x H): 5.9" x 8" x 3.6"

Power and Physical Specifications

• MeetingBar A10 Power Adapter Input: AC 100-240V
• MeetingBar A10 Power Adapter Output: DC 48V, 0.7A
• MeetingBar USB Power Output: 5V, 0.5A
• MeetingBar Standby Power Consumption: 7.9W
• MeetingBar Average Power Consumption: 4.6W
• MeetingBar Peak Power Consumption: 8.1W
• MeetingBar Dimensions (L x W x H): 2.2" x 15" x 2.2"
• Operating Temperature: 32-104 Degrees Fahrenheit
• Storage Temperature: -22 to 158 Degrees Fahrenheit
• Operating Humidity: 10-90%
• Manufacturer-Listed A10-020 Carton Net Weight: 7.9 lb
• Manufacturer-Listed A10-020 Carton Gross Weight: 9.4 lb

4K Conference Camera with Intelligent Participant Tracking

The MeetingBar A10 incorporates a 4K imaging system with a wide-angle lens designed to capture participants positioned throughout small conference rooms. Its 120-degree diagonal field of view reduces the need for participants to sit directly in front of the camera.

Automatic framing identifies participants and adjusts the camera composition to keep them visible. Speaker Tracking electronically adjusts the camera view toward the person speaking, providing a more focused experience for remote attendees. Multi-Focus Framing and Zoom-compatible Smart Gallery functionality offer additional presentation options for supported conferencing environments.

The integrated electronic privacy shutter provides a physical barrier over the camera when video capture is disabled, supporting workplace privacy requirements.

Eight-Microphone Array with AI Noise Reduction

The integrated MEMS microphone array uses beamforming technology to capture voices from different positions within the meeting room. Its specified pickup distance extends approximately 14.8 feet, with an approximately 11.5-foot high-quality pickup range.

Yealink's AI-based audio processing reduces common office distractions, including keyboard activity and environmental noise. Acoustic echo cancellation and dereverberation processing help improve speech clarity in rooms with reflective surfaces.

The built-in 5W speaker supports full-duplex audio communication, allowing local and remote participants to speak naturally without relying on external speakerphone equipment.

CTP18 Touchscreen Meeting Controller

The included CTP18 collaboration touch panel allows meeting participants to control conference functions directly from a tabletop display. Its 8-inch capacitive screen provides an interactive interface for joining scheduled meetings, adjusting camera views, managing participants, and controlling meeting audio.

The panel supports wired Ethernet and compatible wireless network connections. Power over Ethernet enables the controller to receive power and network connectivity through a single compatible Ethernet connection, simplifying tabletop installation.

Its adjustable stand provides viewing angles between 28 and 50 degrees, allowing users to position the touchscreen comfortably during meetings. Wall-mounting support offers an alternative installation option for permanent conference room configurations.

Microsoft Teams, Zoom, and Device Mode Compatibility

The MeetingBar A10 supports native Microsoft Teams and Zoom conferencing experiences through its integrated Android platform. Users can join supported meetings directly through the conferencing system without requiring a dedicated desktop computer for standard room operation.

USB device mode provides additional flexibility for compatible computer-based conferencing applications. This configuration allows organizations to integrate the MeetingBar into supported bring-your-own-device workflows.

The system also supports content sharing, meeting calendar integration, and centralized management through compatible conferencing platforms.

Remote Management and Professional Installation

For business environments operating multiple meeting rooms, the MeetingBar A10 supports remote configuration, monitoring, updates, and diagnostics through compatible Yealink management services. Supported administration options also include Microsoft Teams Admin Center and Zoom Device Management.

The compact video bar supports installation near a conference room display using compatible mounting hardware. The included Ethernet and HDMI connections provide straightforward integration with existing room infrastructure, while the CTP18 controller offers convenient access to meeting controls.

What's in the Box

• 1 x Yealink MeetingBar A10 Video Conferencing Bar
• 1 x Yealink CTP18 Collaboration Touch Panel
• 1 x MeetingBar A10 Power Adapter
• 1 x MeetingBar A10 Ethernet Cable, 9.8 ft
• 1 x HDMI Cable, 5.9 ft
• 1 x MeetingBar A10 Mounting Bracket and Installation Accessories
• 1 x CTP18 PoE Power Adapter
• 1 x CTP18 Ethernet Cable, 24.6 ft
• 1 x CTP18 Ethernet Cable, 9.8 ft
• 1 x CTP18 Cable Lock Box
• 1 x CTP18 Mounting Bracket and Accessories
• Quick Start Documentation
