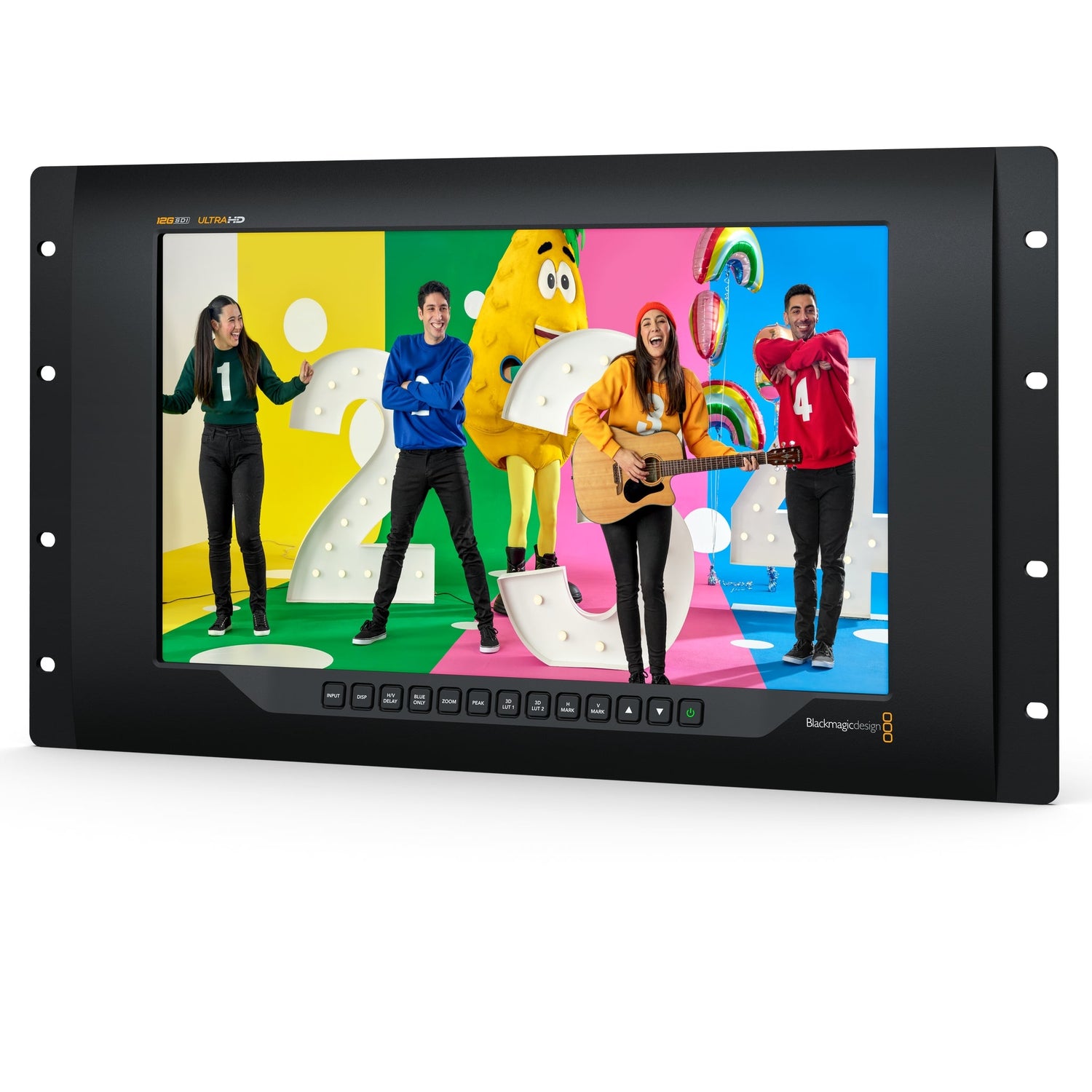

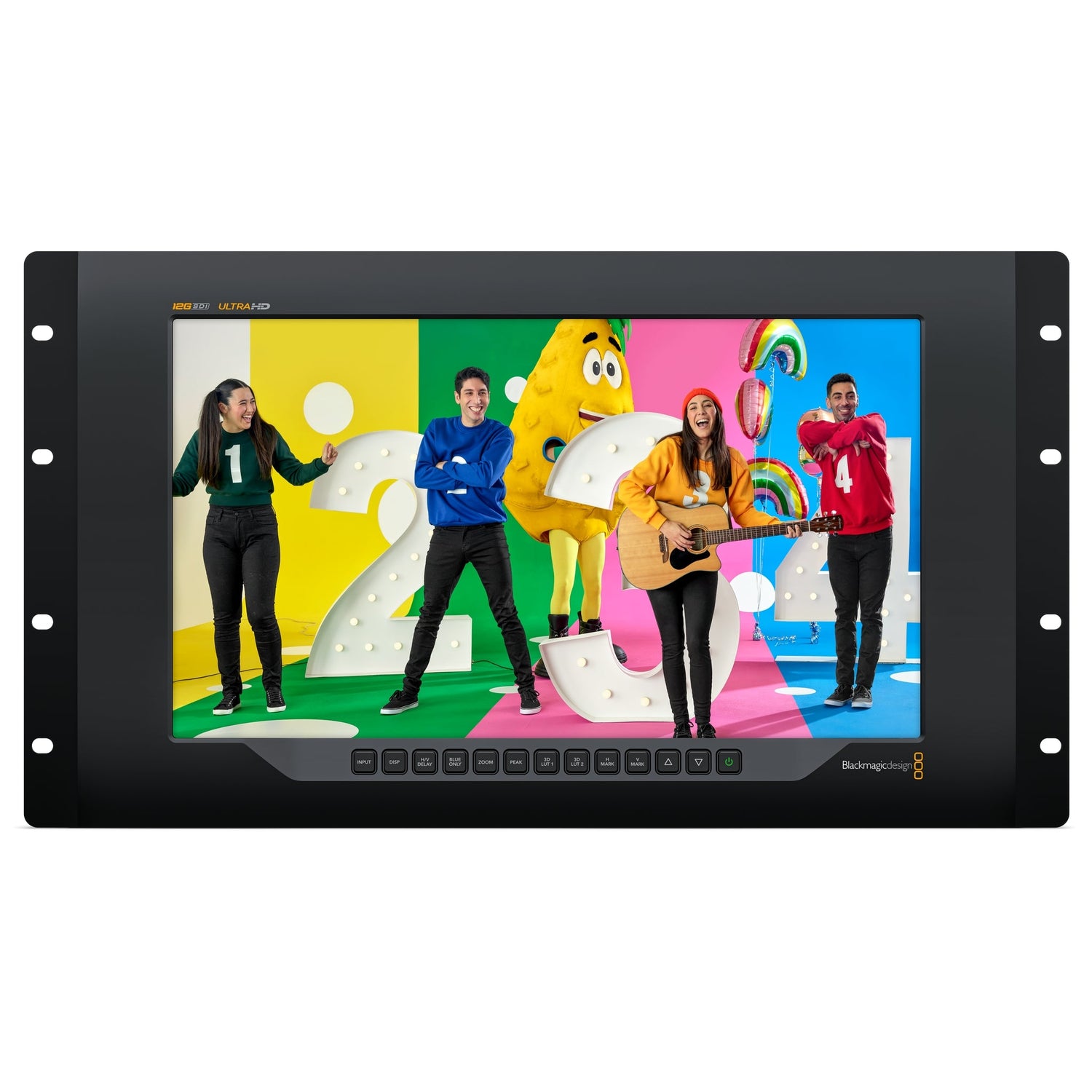

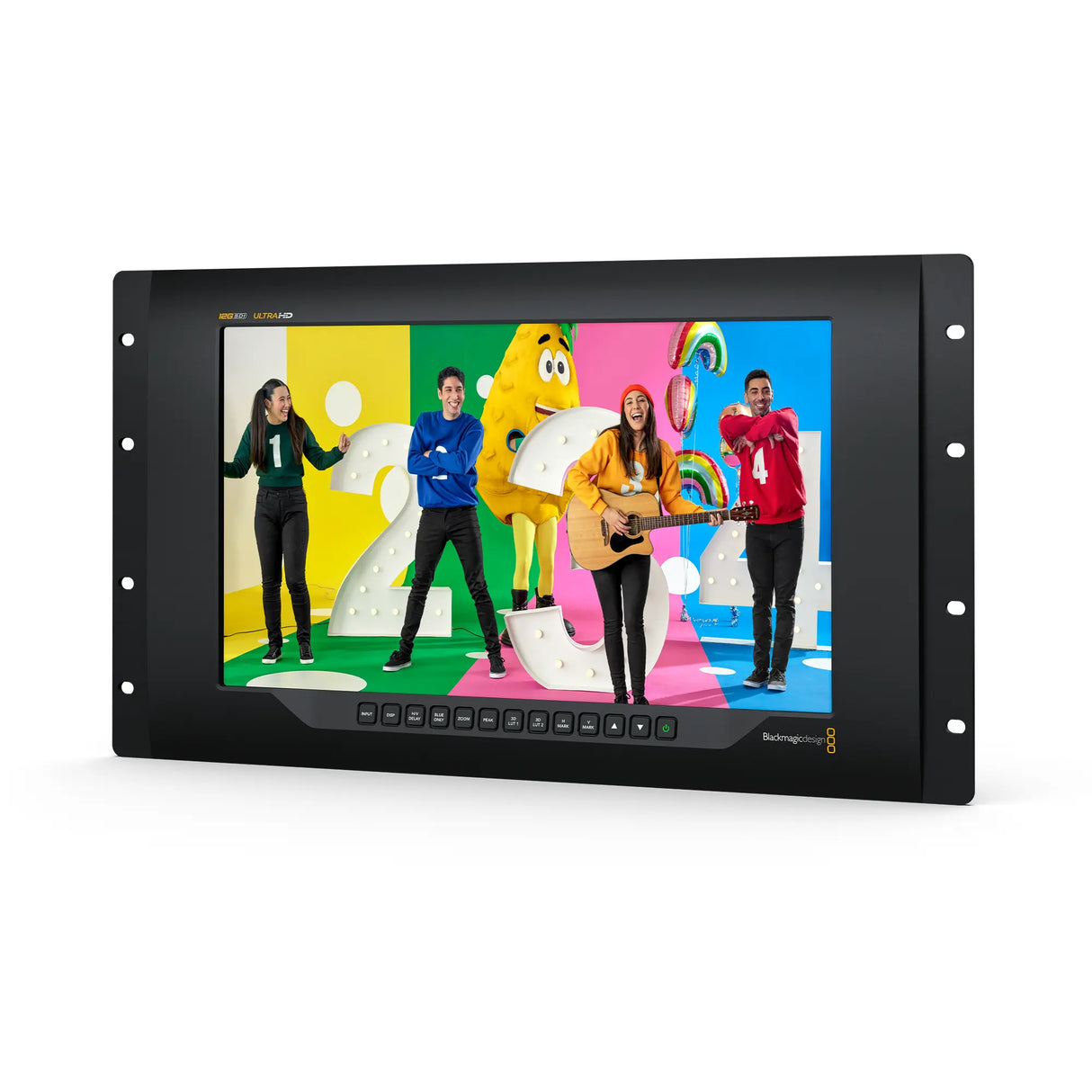

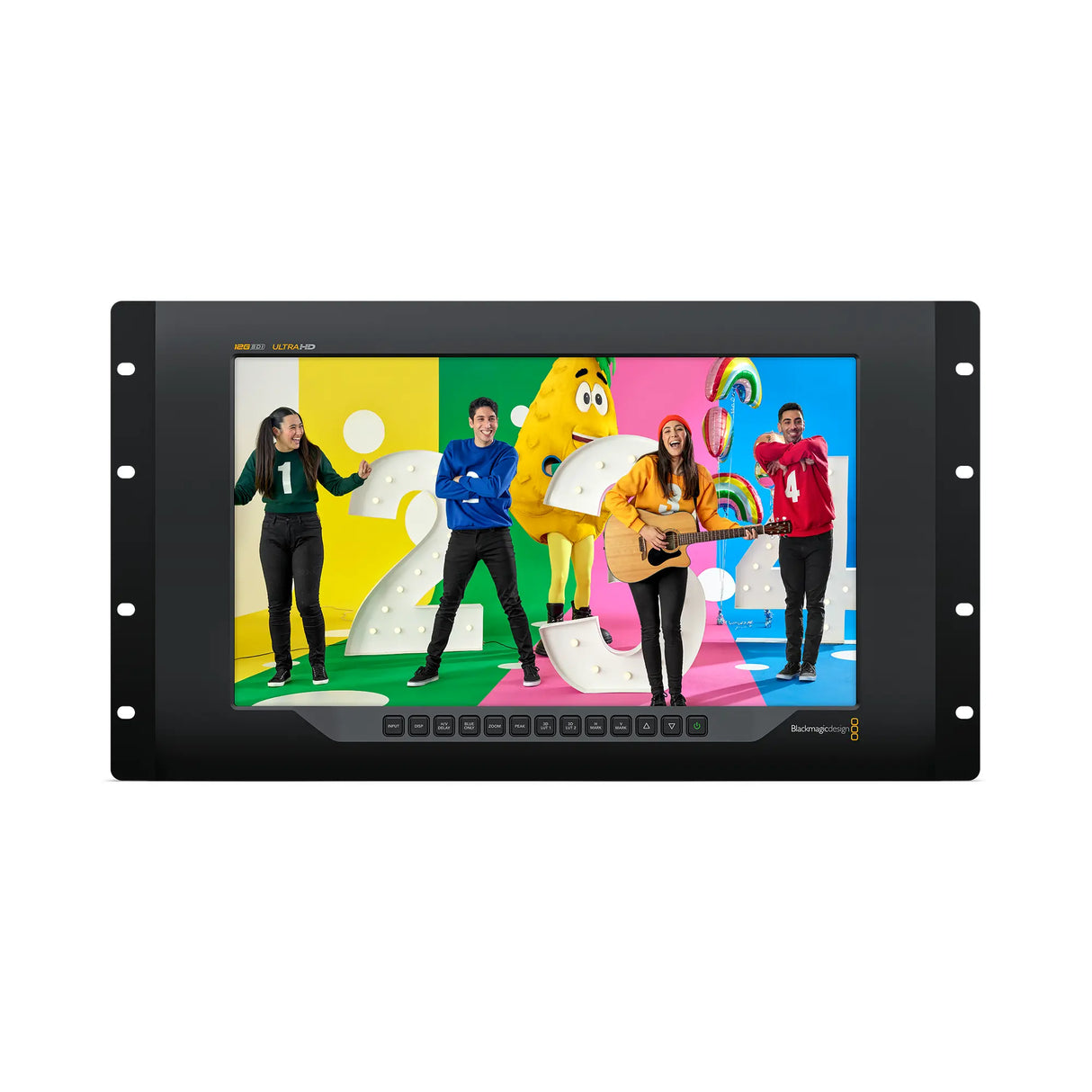

Blackmagic Design SmartView 4K G3 Ultra HD Broadcast Monitor, 12G-SDI/SMPTE-2110 IP

Blackmagic Design SmartView 4K G3 Ultra HD Broadcast Monitor, 12G-SDI/SMPTE-2110 IP

The Blackmagic Design SmartView 4K G3 Ultra HD Broadcast Monitor is a state-of-the-art display solution designed specifically for broadcast and live production environments. Touted as the first Ultra HD broadcast monitor to feature both 12G-SDI and SMPTE-2110 IP video inputs, it represents a significant breakthrough in professional video technology. Its dual input capabilities ensure seamless integration into both IP-based broadcast systems and a wide array of 12G-SDI professional video equipment. Supporting resolutions up to 2160p60, this monitor caters to the highest quality video production standards.

With its robust feature set, the SmartView 4K G3 addresses the needs of both current and future broadcast workflows. Among its many advanced capabilities are 3D LUTs for accurate color grading, as well as various monitoring controls like focus peaking, H/V delay, blue only, and framing guides. The monitor also includes versatile power options, offering both AC and 12V DC power connections to suit different operational needs. These features make it an indispensable tool for anyone looking to elevate their broadcast or live production quality to the next level.

This powerful monitor doesn’t just stop at high-resolution video; it also incorporates advanced networking features, making it compatible with the latest IP video workflows. Whether you're working in a traditional SDI-based setup or migrating to a more modern IP-based environment, the SmartView 4K G3 offers the flexibility and reliability you need.

Key Features

• Pioneering Ultra HD broadcast monitor with 12G-SDI and SMPTE-2110 IP video inputs
• Supports up to 2160p60 resolution, ideal for high-quality broadcast and live production
• Equipped with AC and 12V DC power connections for flexible operation
• Advanced monitoring controls including focus peaking, H/V delay, blue only, and framing guides
• 3D LUTs for precise color grading
• Auto-detection of multiple video formats including 4K, Ultra HD, 2K, HD, and SD

Specifications

• SDI Inputs: 2
• SDI Outputs: 1 loop out
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
• Optical Video Input: SFP Optical Fiber connector cage
• SD Format Support: 525i59.94 NTSC, 625i50 PAL
• HD Format Support: Up to 1080p60
• 2K Format Support: Up to 2Kp60 DCI
• Ultra HD Format Support: Up to 2160p60
• 4K Format Support: Up to 4Kp60 DCI
• Video Sampling: 4:2:2 and 4:4:4
• IP Video Compliance: SMPTE 2110-20, SMPTE 2110-21, and more
• Display Resolution: 3840 x 2160 pixels
• Display Element: 15.6" TFT Active Matrix LCD
• Power Consumption: 24 W
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Package Contents

• SmartView 4K G3
• Welcome wallet with QR code for software download
• 12 Months Limited Manufacturer's Warranty
