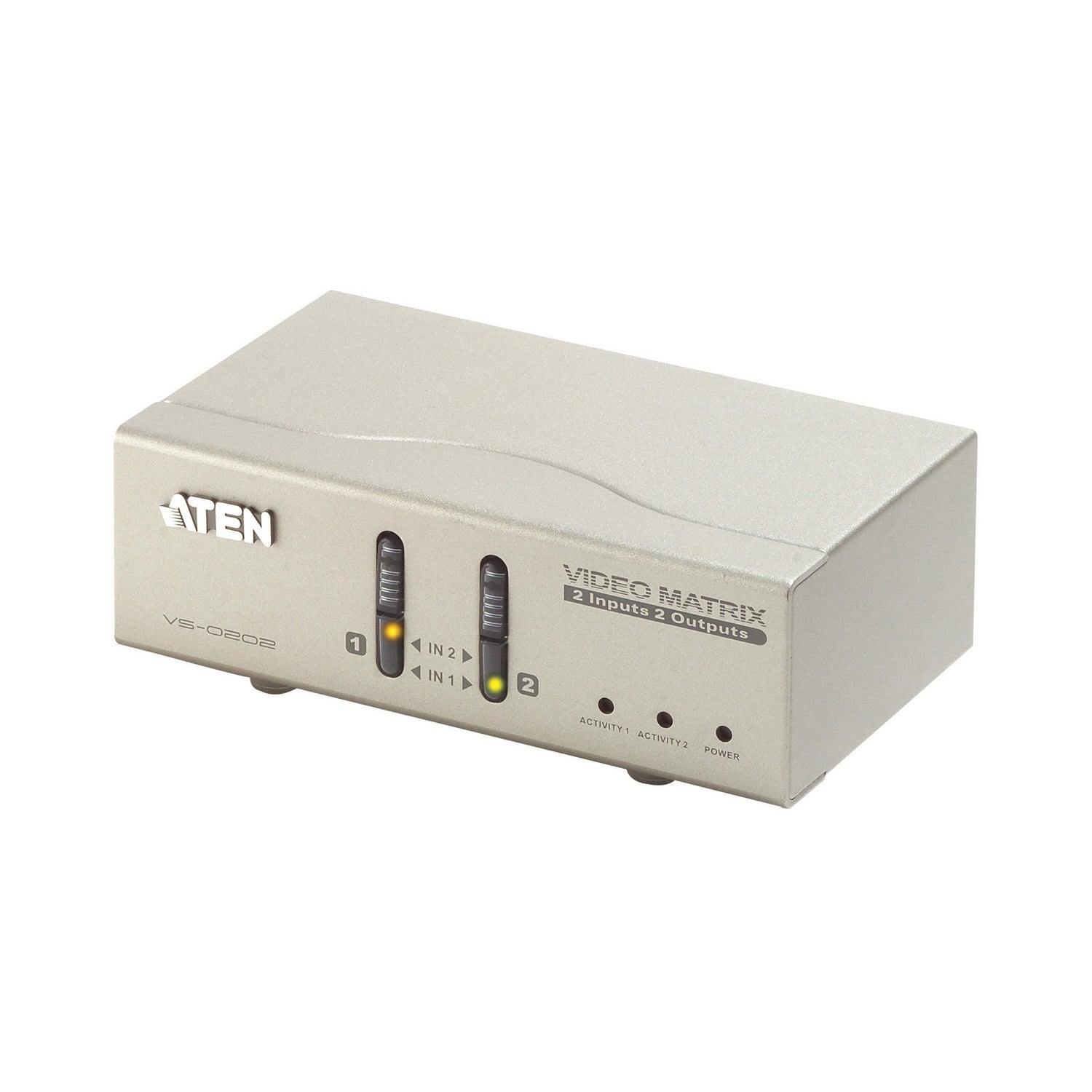

ATEN VS0202 2 Port Video Matrix Switch
The VS0202 Video Matrix Switch allows video and audio from 2 computers to be routed to 2 monitors,projectors and speakers. Ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.
Key Features

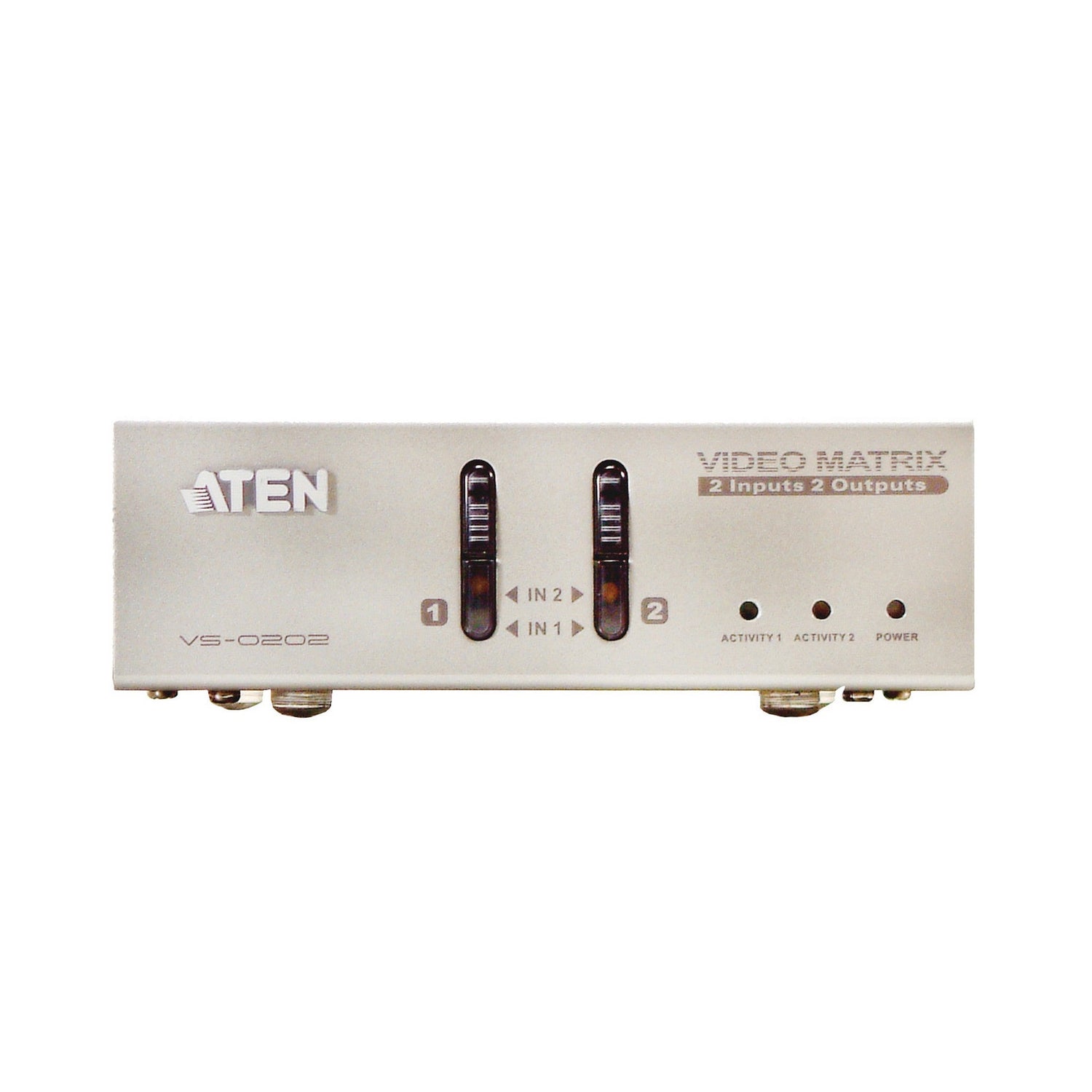

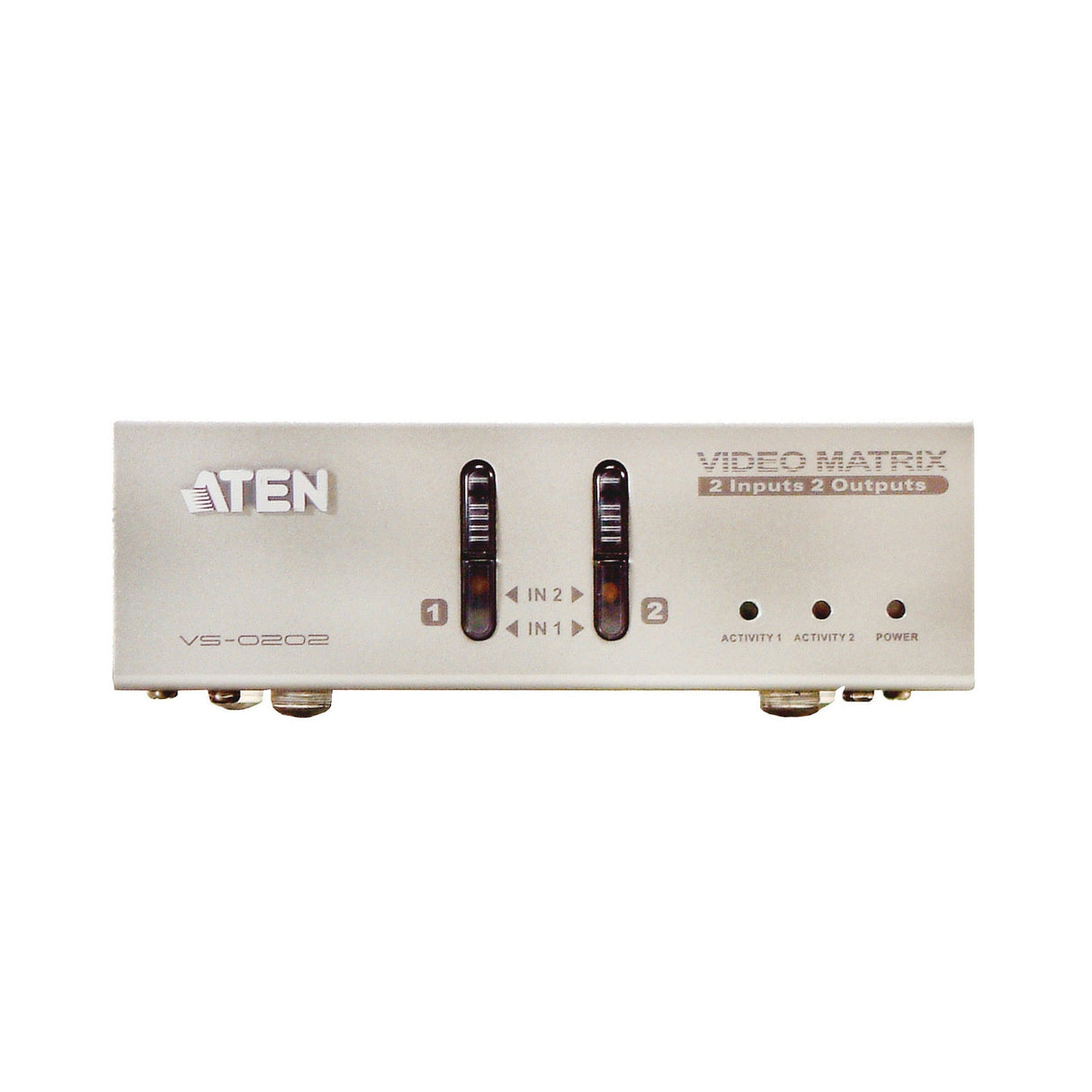

- Each of the 2 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.
- Audio enabled.
- Duplicate and enhance video signals to up to 65 m (max.) *
- Expandable: Cascade to ATEN's video splitters to support hundreds of video displays.
- With up to 300 MHz Video Bandwidth.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Technical Specifications
Display Connections : 2
Computer Connections : 2
Port Selection : Pushbutton

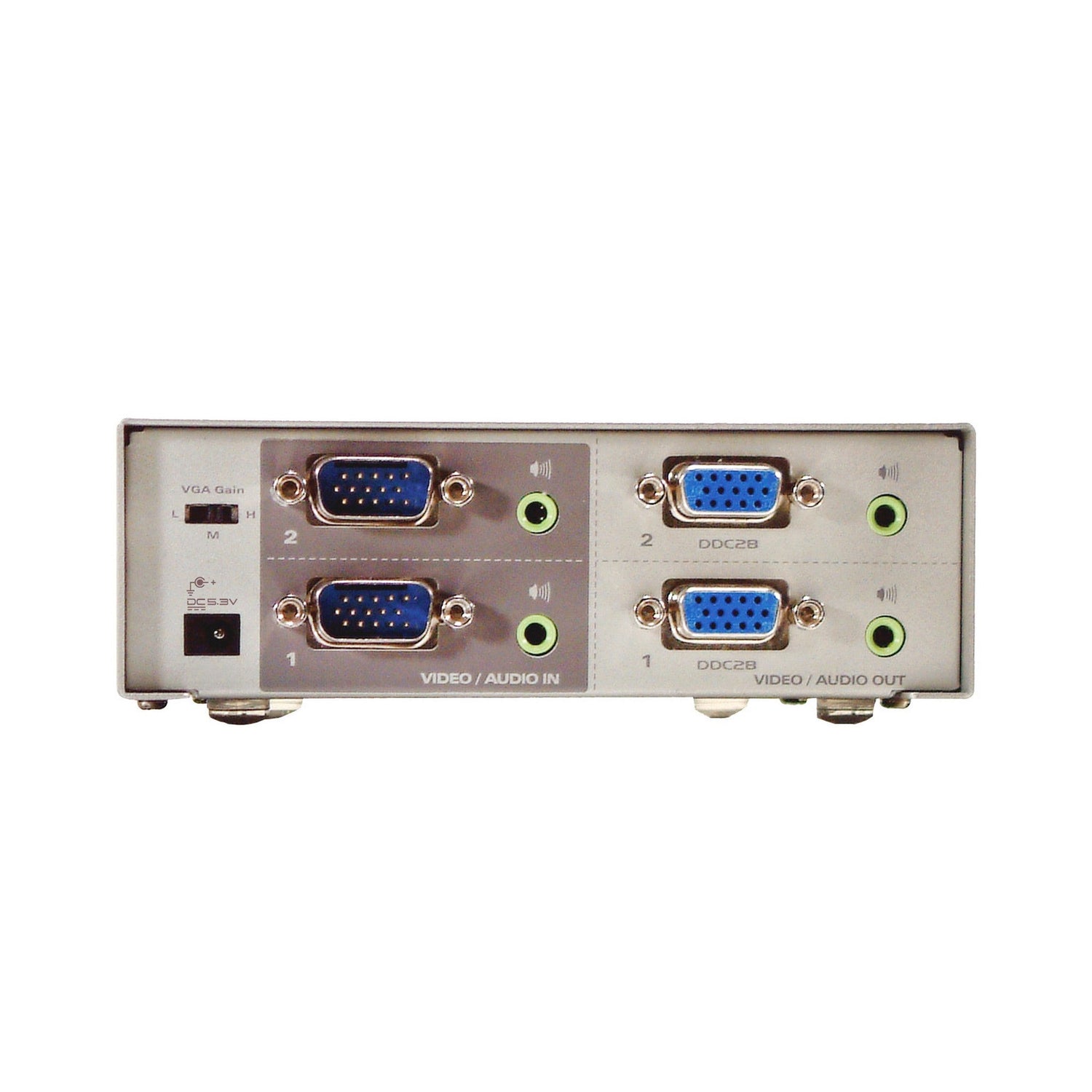

Connectors
Input
Vdieo : 2 x HDB-15 Male (Blue)
Audio : 2 x Mini Stereo Jack Female (Green)
Output
Vdieo : 2 x HDB-15 Female (Blue)
Audio : 2 x Mini Stereo Jack Female (Green)
Power : 1 x DC Jack (Black)
LEDs
Power : 1 (Blue)
Activity / Source : 2 (Green)
Input 1 : 2 (Green)
2 : 2 (Orange)
Video
1920 x 1440 @ 60Hz
Video Bandwidth
300 MHz
Sync Range
Sync Positive/Negative
Signal Range
65m (210')
Power Consunption
DC 5.3V ,2.39W (Max.)
Environment
Operating Temp. : 0-50C
Storage Temp. : -20-60C
Humidity : 0-80% RH, Non-condensing
Physical Properties
Housing : Metal
Weight : 0.47 kg
Dimensions ( L x W x H )
13.00 x 7.50 x 4.50 cm
