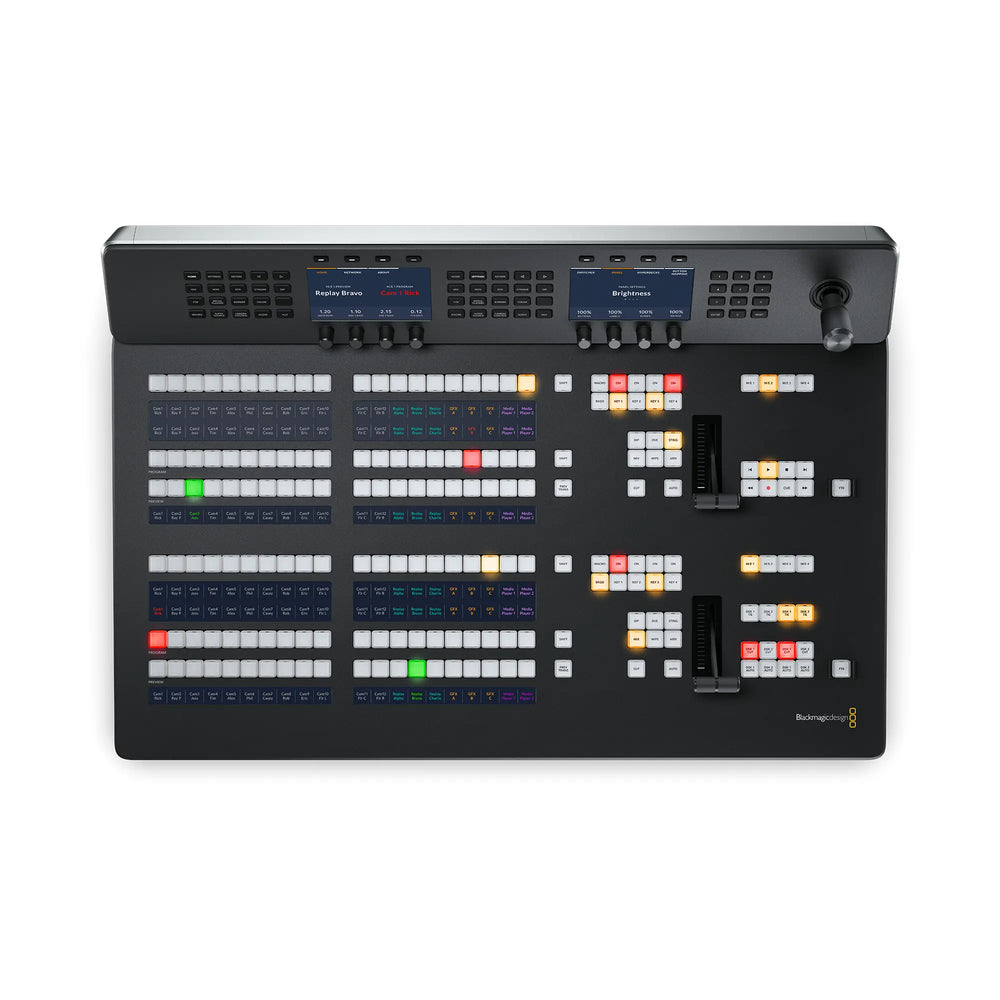

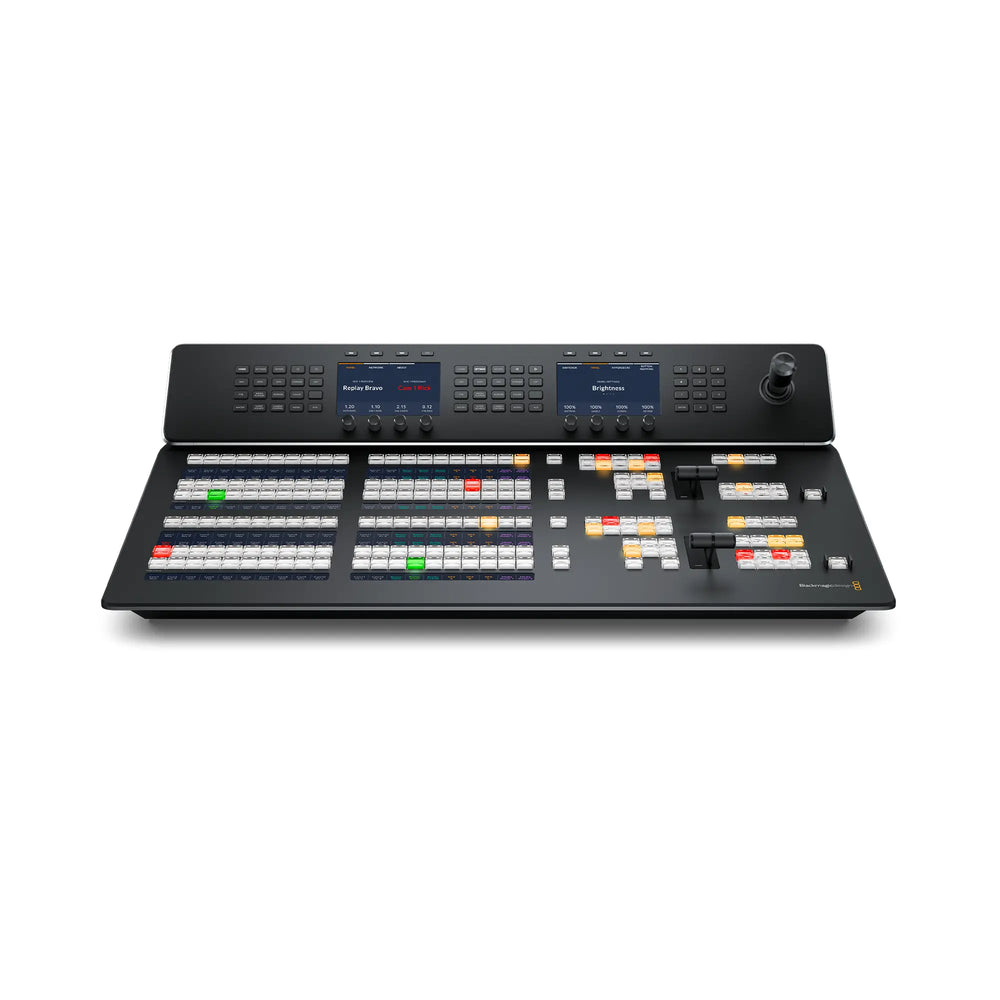

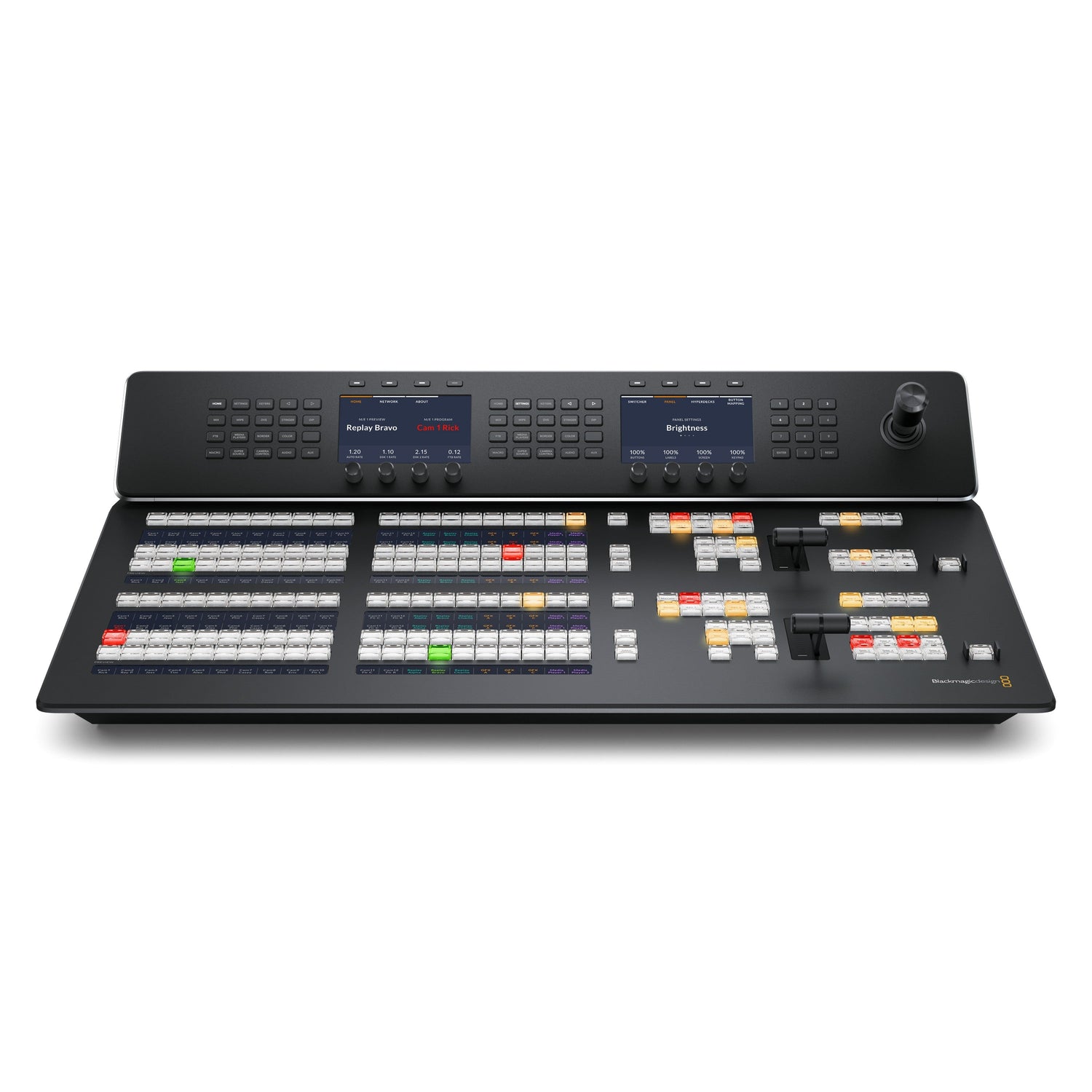

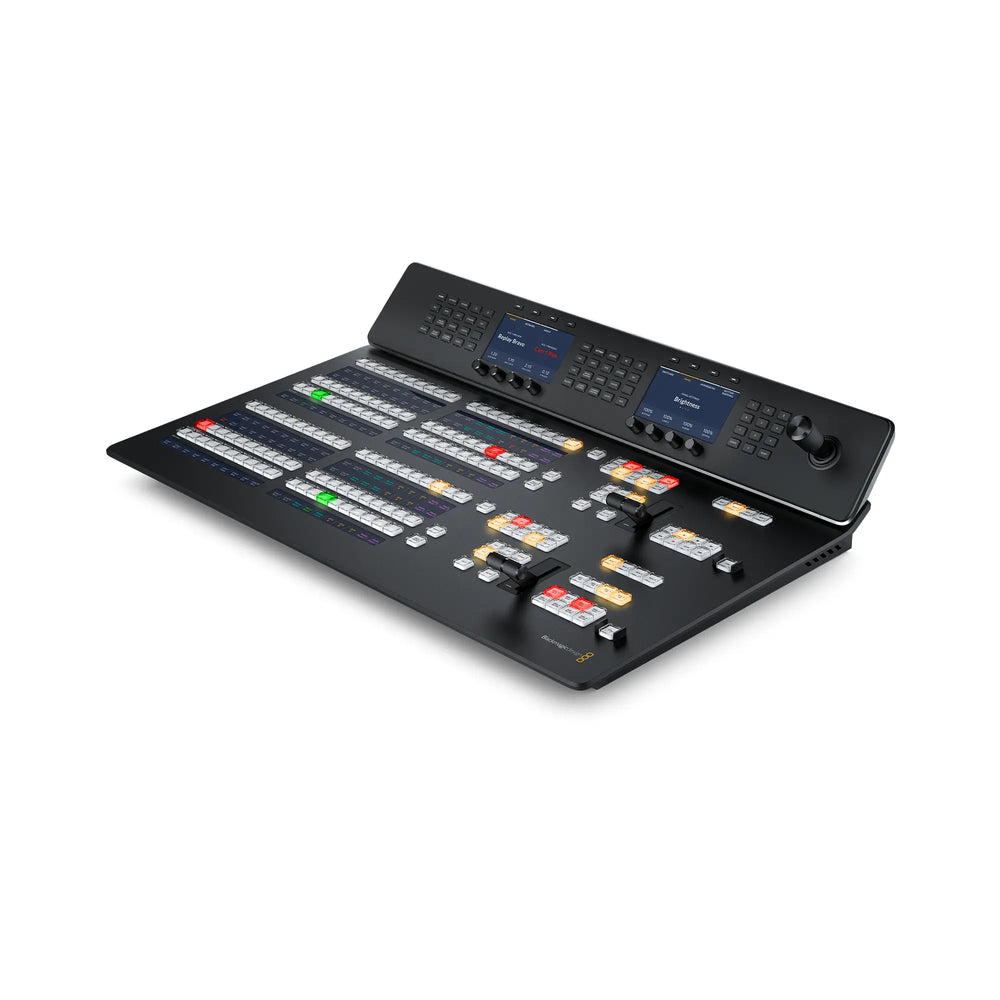

Blackmagic Design ATEM 2 M/E Advanced Panel

Blackmagic Design ATEM 2 M/E Advanced Panel

The Blackmagic Design ATEM 2 M/E Advanced Panel is a professional-grade switcher designed for live video production. Ideal for studios, sports venues, concert halls, and more, this advanced panel provides ultimate control and customization. Its dual rows, each with 20 input buttons, transform how directors manage live broadcasts. Each row can independently control up to 4 M/Es, and the included LCDs allow for personalized labeling, ensuring simplicity and efficiency in high-pressure environments.

The ATEM 2 M/E Advanced Panel is loaded with features that enhance workflow and provide robust control options. From its tri-color LED crosspoint buttons to its independent system control LCDs, every detail is carefully crafted to meet professional standards. The panel also supports up to 40 shifted cross points, making it an incredibly versatile tool for any live production setup. With its comprehensive software support, including compatibility with both Mac and Windows, updating and managing your panel is seamless and straightforward.

This product ensures reliability with its redundant power supply feature, guaranteeing uninterrupted performance during critical live events. The ATEM 2 M/E Advanced Panel is not just a piece of equipment; it's an investment in excellence for any broadcast professional looking to enhance their production capabilities.

Key Features

• Dual M/E rows with 20 input buttons each
• Customizable LCD labeling for all input buttons
• Control up to 4 M/Es per row
• Tri-color LED crosspoint buttons
• Two independent system control LCDs for each row
• Dedicated macro buttons
• Redundant power for uninterrupted performance
• Comprehensive software support for Mac and Windows

Specifications

• Ethernet: 4 x 10/100/1000 BaseT with loop output
• Software Updates: 1 x USB-C
• Number of Mix Effects Rows: 2
• Direct Cross Points: 20
• Shifted Cross Points: 40
• Crosspoint Button Type: Tri-Color LED
• Crosspoint Label: 6 rows, 24 character LCD
• Next Transition Selectors: 2 x BKG, Key 1 - Key 4
• On-Air Indicator: 8
• Power Status Indicators: None
• DSK Transition Selectors: Auto, Cut, Tie/Preview x 2
• Preview Transition: 2
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 2
• Menu Control: 20 buttons x 2
• Dedicated Macro Buttons: 2 x 20
• Transport Control Buttons: 8
• Destination Bus: 2
• Source Select Bus: 2
• Fader Bar: 2
• 3 Axis Joystick: 1
• Numeric Keypad: 1
• Software Applications: ATEM Software Control Panel
• Operating Systems: Mac 10.14 Mojave, 10.15 Catalina or later; Windows 10, 64-bit
• Input Voltage: 2 x Internal 100 - 240V AC
• Redundant Power: Yes
• Power Usage: 150W
• Operating Temperature: 0 to 40 C (32 to 104 F)
• Storage Temperature: -20 to 60 C (-4 to 140 F)
• Relative Humidity: Up to 95%

Package Contents

• ATEM 2 M/E Advanced Panel
• 12 Month Limited Manufacturer's Warranty
