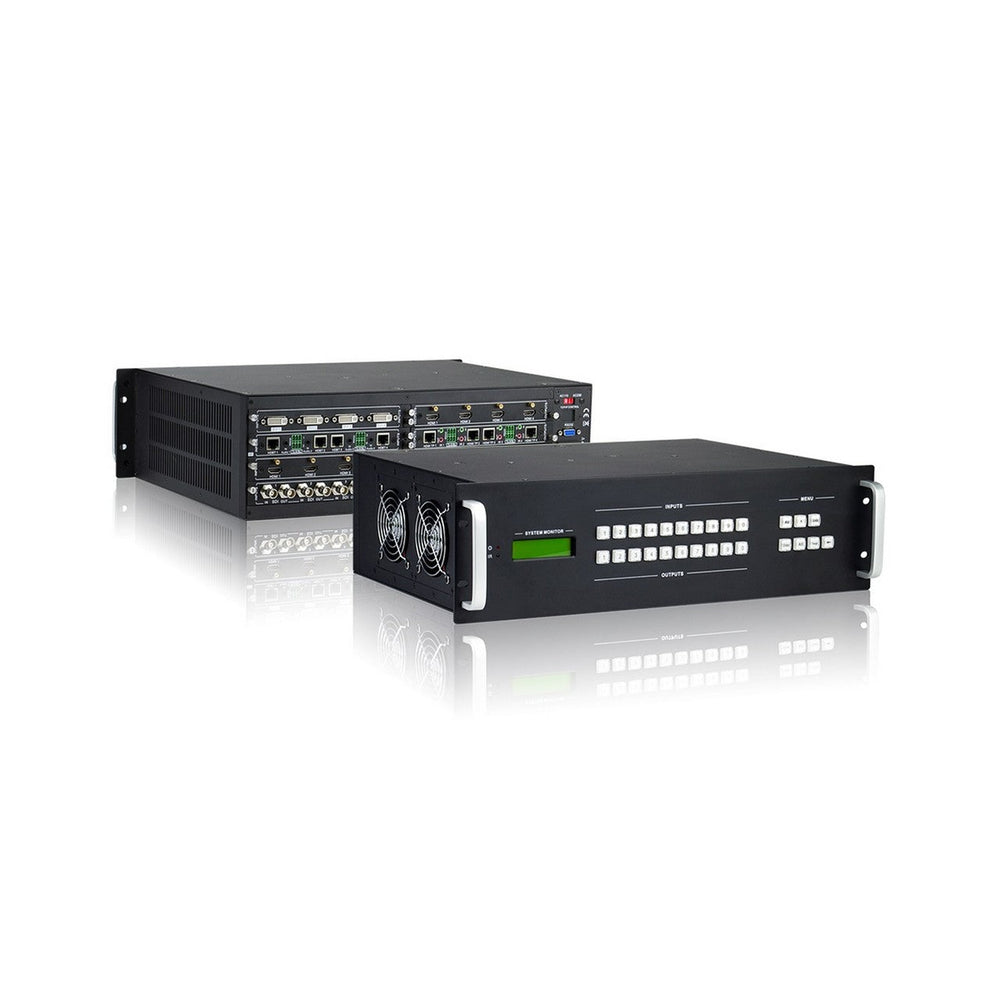

KanexPro HDMMX1616-4K 4K UHD 16 x 16 Modular Matrix Switcher
The KanexPro HDMMX1616-4K is a sixteen input by sixteen output modular matrix switcher chassis with four input slots and four output slots; each modular input or output card supports up to four device connections. As an add-on to front panel control, the HDMMX1616-4K can be controlled via IR, RS232, or TCP/IP connections.
Key Features
- Customizable 16x16 modular switch serving various AV connections
- 4K UHD resolution via HDMI & HDBaseT
- Supported connections: VGA, SDI, DVI, HDMI, HDBaseT & Fiber optic
- High-bandwidth up to 10.2 Gbps
- Add I/O modular cards based on expandability
- Cross-point ultra-switching
- Advanced HDCP & EDID management
- Hot swappable design
- Clear illuminated buttons
- Control via IR, Ethernet & RS-232
- 10 global presets
- Front panel LCD for switching & status
- Front panel security lock
- 3 RU rack-mountable aluminum enclosure
- Dual-Internal power supply (100Volt~240Volt AC, 50/60Hz)
Technical Specifications
I/O Connections
Chassis Input
4 x Input Cards
Chassis Output
4 x Output Cards
Bandwidth for each I/O
340 MHz (10.2 Gbps)
Input/ output impedance
75 ohms
Switching speed
200ns (max)
Gain
0 dB
Max delay
5nS (+/- 1nS)
Control
Serial control port
RS-232, 9-pin female D connector
Pin Configurations
2 = TX, 3 = RX, 5 = GND
Front panel control
Buttons
TCP/IP Control via Ethernet
Power, ESD & Regulatory
International Power Supply
110VAC ~ 240VAC, 50/60Hz
Power Consumption
135 watts fully populated
ESD protection
15kV
Regulatory
CE, RoHs
Case Dimension
483mm x 356mm x 133mm (19 in. x 14 in. x 5.25 in.)
Product Shipping Weight
7.71 kg (17 lbs.)
