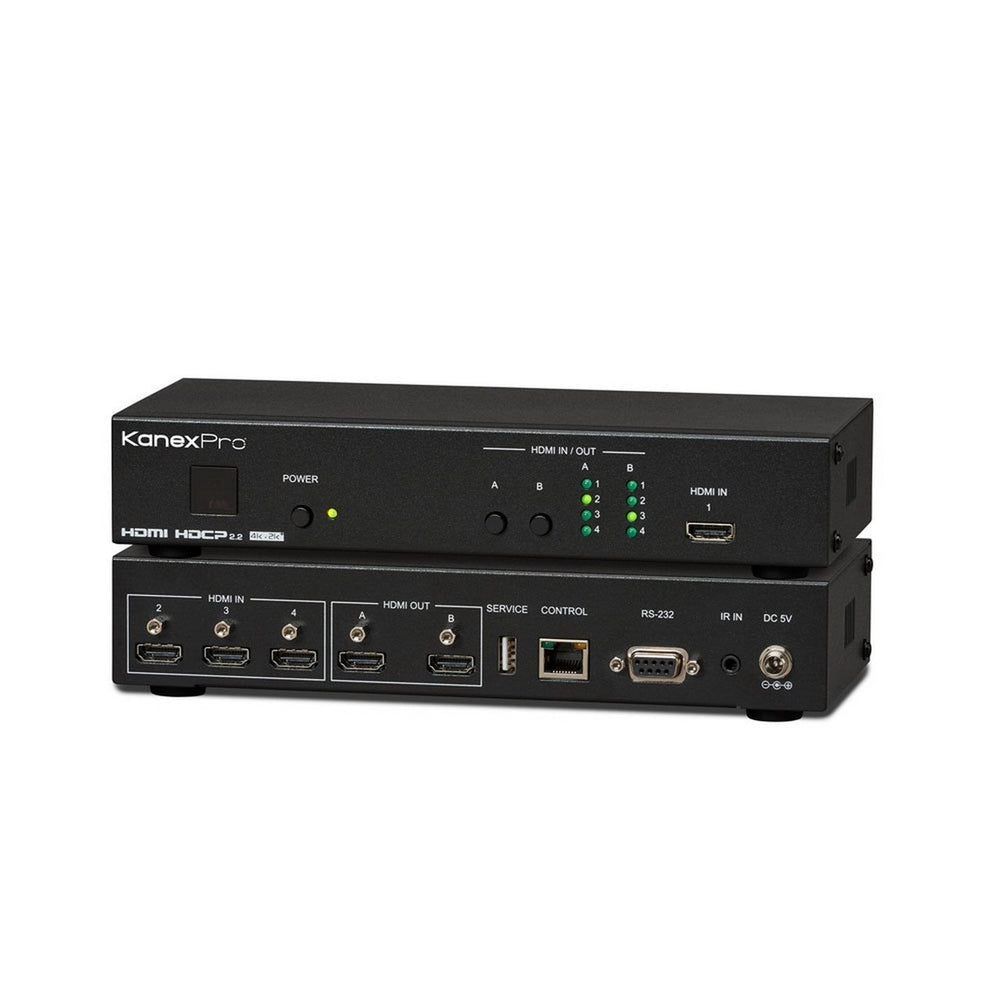

KanexPro HDMX42-18G 4 x 2 HDMI2.0, 4K/60 Matrix Switcher with HDR10
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
KanexPro HDMX42-18G 4 x 2 HDMI2.0, 4K/60 Matrix Switcher with HDR10
The KanexPro HDMX42-18G is an easy to use, cost-effective 4K/60Hz with 4:4:4, 16-bit Deep Color, HDR (High Dynamic Range) and HD audio formats based on HDMI 2.0 specs. Designed with 4-inputs and 2-outputs. For swift switching and routing of any HDMI sources such as laptops, Blu-ray players, and 4K based Apple TV to any four displays. This matrix switcher is HDCP 2.2 compliant and supports 4K@60Hz, 4:2:0 video. it can be controlled via front panel buttons, IR remote and RS232 commands.
Key Features
- Switch 4 HDMI devices to 2 Displays with 4K/60 + HDR & 4:4:4
- Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs
- Supports resolutions up to 4096-2160@60Hz (4:4:4, 8-bit)
- HDMI 2.0 and DVI 1.0 compliant
- HDCP 1.4 and 2.2 compliant
- Maximum data rate up to 18Gbps with Deep Color support up to 16-bit at 1080p
- Supports pass-through of LPCM 7.1, Bit stream and HD Bit stream audio formats
- Supports EDID management via five pre-defined internal EDIDs and two external EDID options
- Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote
- Backed by KanexPro 3-year parts and labor warranty
Technical Specifications
Video Bandwidth
600MHz/18Gbps
Input Ports
4 HDMI
Output Ports
2 HDMI
Control Interfaces
1 IR Extender (3.5mm) 1RS-232 (9-pin D-sub) 1IP Control (RJ45)
Supported Resolutions
480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB)
HDMI Cable Length
10m (1080p@60Hz, 12-bit)
3m (4K@60Hz, 4:4:4, 8-bit)
IR Frequency
30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate
115200bps
Power Supply
5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection
Human Body Model
-12kV (Air Discharge)
-8kV (Contact Discharge)
Dimensions
9.4" x 1.7" x 4.0" (WHD)
Case Only
9.4" x 1.8" x 4.4" (WHD)
Weight
(1.75 lbs) 796g
