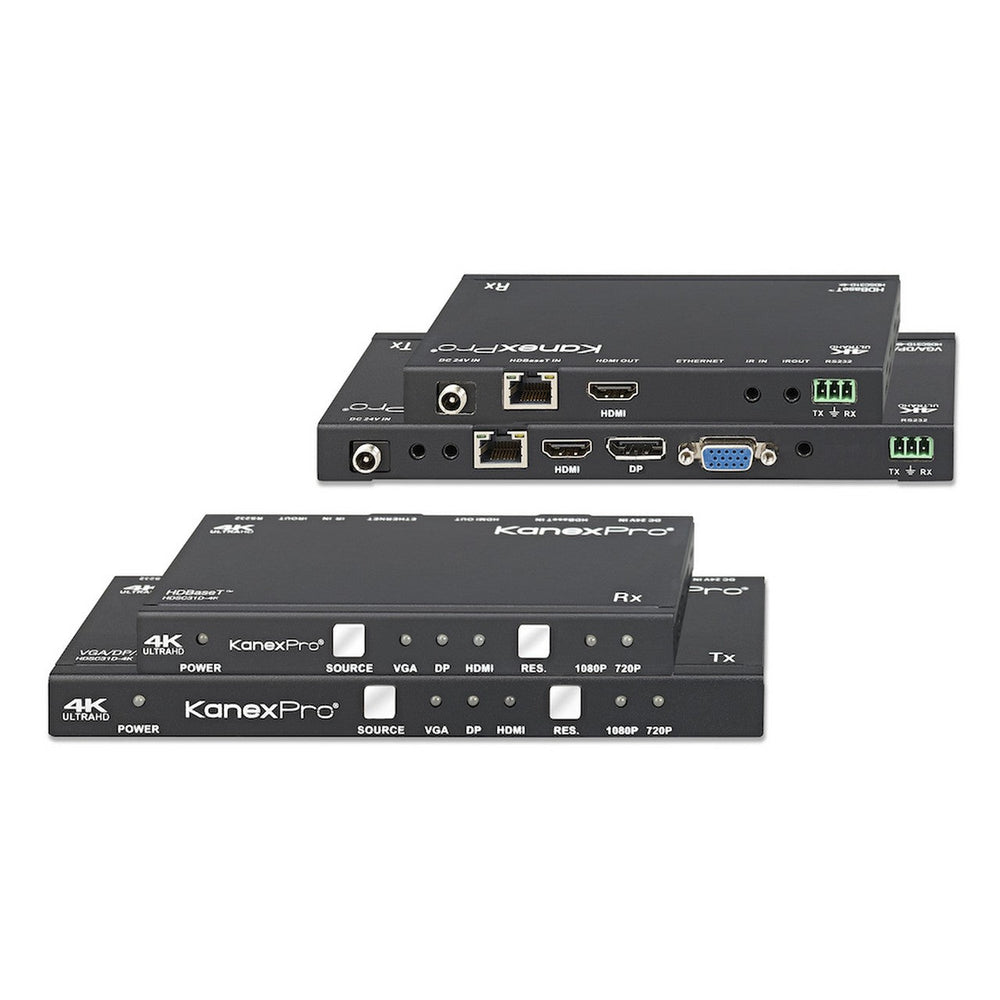

KanexPro HDSC31D-4K 3-Input Huddle Room Switcher Over HDBaseT and 4K

KanexPro HDSC31D-4K 3-Input Huddle Room Switcher Over HDBaseT and 4K

The KanexPro HDSC31D-4K is a three input Collaboration Auto-Switcher Scaler designed for sending DisplayPort, HDMI, or VGA signals with control up to 230 feet (70 meters) over a shielded CATx cable to an HDBaseT receiver supporting resolutions up to 4K/30Hz. The sender or receiver can be powered from either sides requiring only one power supply supporting POE (Power over Ethernet) and allowing you to switch between the sources and up-scale or downscale to desired video resolutions.

Key Features

• 3-input Collaboration Auto - Switcher & Scaler w/ HDBaseT
• Reliable switching with selectable output resolutions up to 4K UHD
• Extend 3-inputs via HDBaseT up to 230 feet (70m)
• Send 4K UHD - 24/30Hz signals up to 115 feet (35 meters)
• 40 meters: 1080p @60Hz@48bit; 1080p@120Hz@24bit
• 70 meters: 1080p@60Hz@36bit; 3D1080p@30Hz36bit
• 3D, 1080p@60Hz@36bit; 4K x 2K@30Hz@24bit
• Bi-directional POE support (Tx to Rx or Rx to Tx)
• VGA video also supports: C-video & YPbPr
• Built-in EDID management
• Controllable via IR, front-panel, & RS-232
• Supports CEC & HDCP 2.2 compliant
• Locking power supplies
• Compact & slim design for flexible installation
• Includes mounting kits
• International power supply

Technical Specifications

Video Input
Input
1 HDMI
1 VGA,
1 HDBaseT in
Input Connector
4 female HDMI
2 female VGA (15 pin)
Video Signal
DP/HDMI/VGA
Video Output
Output
1 HDMI
1 HDBaseT out
Output Connector
1 female HDMI
Video Signal
1 HDMI Video
IR Input
Input
1 IR IN
Input Connector
3.5mm mini jack
IR Output
Output
1 IR OUT
Output Connector
3.5mm mini jack
Video General
Resolution range
HDMI: up to 4K/30Hz
VGA: 1024x768, 1280x720
1280x800, 1920x1080
1600x1200, 1920x1200
Bandwidth
HDMI: 10.2 Gbps
Maximum Pixel Clock
165MHz
Temperature
0~45 C
Humidity
10% ~ 90%
Power Supply
DC 24V
Power Consumption
3.8 Watts max
Case Dimension
W347mm x H28mm x D110mm
Product Weight
0.63 Kg
