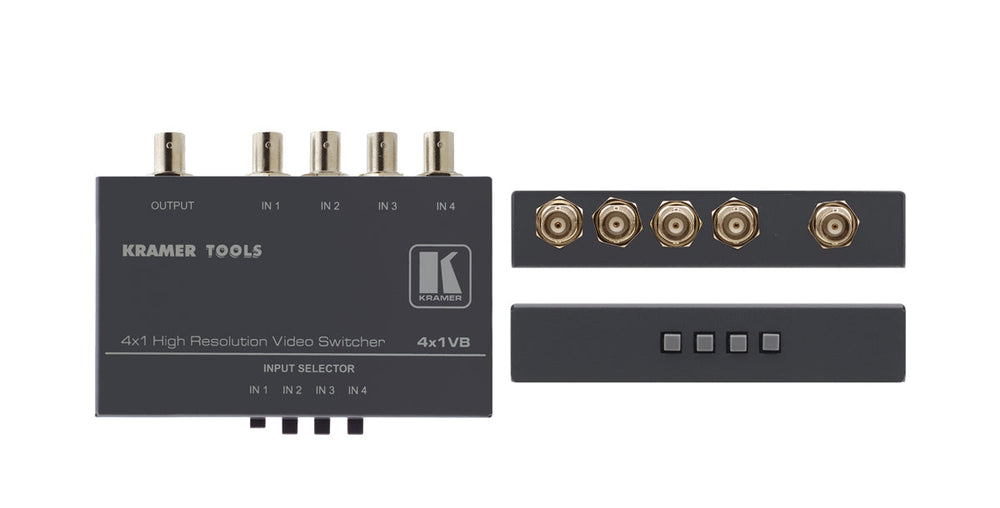

Kramer 4X1VB 4 x 1 Composite Video Mechanical Switcher, BNCs
Kramer 4X1VB 4 x 1 Composite Video Mechanical Switcher, BNCs is a high quality 4x1 mechanical switcher designed for composite video signals using BNC connectors. It accepts up to four inputs and allows the user to select any input to be routed to one output using buttons located on the side panel. High quality switching components are used to ensure minimal crosstalk and very high bandwidth. The entirely passive design of the 4x1VB eliminates the need for a power supply. Unselected inputs are automatically terminated via 75 resistors. The 4x1VB is part of the Kramer TOOLS family of compact, high quality, cost effective solutions for a variety of applications.
Key Feature
- High Bandwidth - 400MHz (-3dB).
- Video on BNC Connectors.
- Mechanical (Passive) Switching - No power required.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Technical Specs
Input
4 video, 1Vpp/75? on BNC connectors.
Output
1 composite or single component video, 1Vpp/75? on a BNC connector.
BANDWIDTH (-3DB):
400MHz.
SWITCHING SYSTEM:
Mechanical, break-before-make.
DIMENSIONS:
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
WEIGHT:
0.28kg (0.62lbs) approx.
ACCESSORIES:
Mounting bracket.
OPTIONS:
RK-3T 19" rack adapter.
