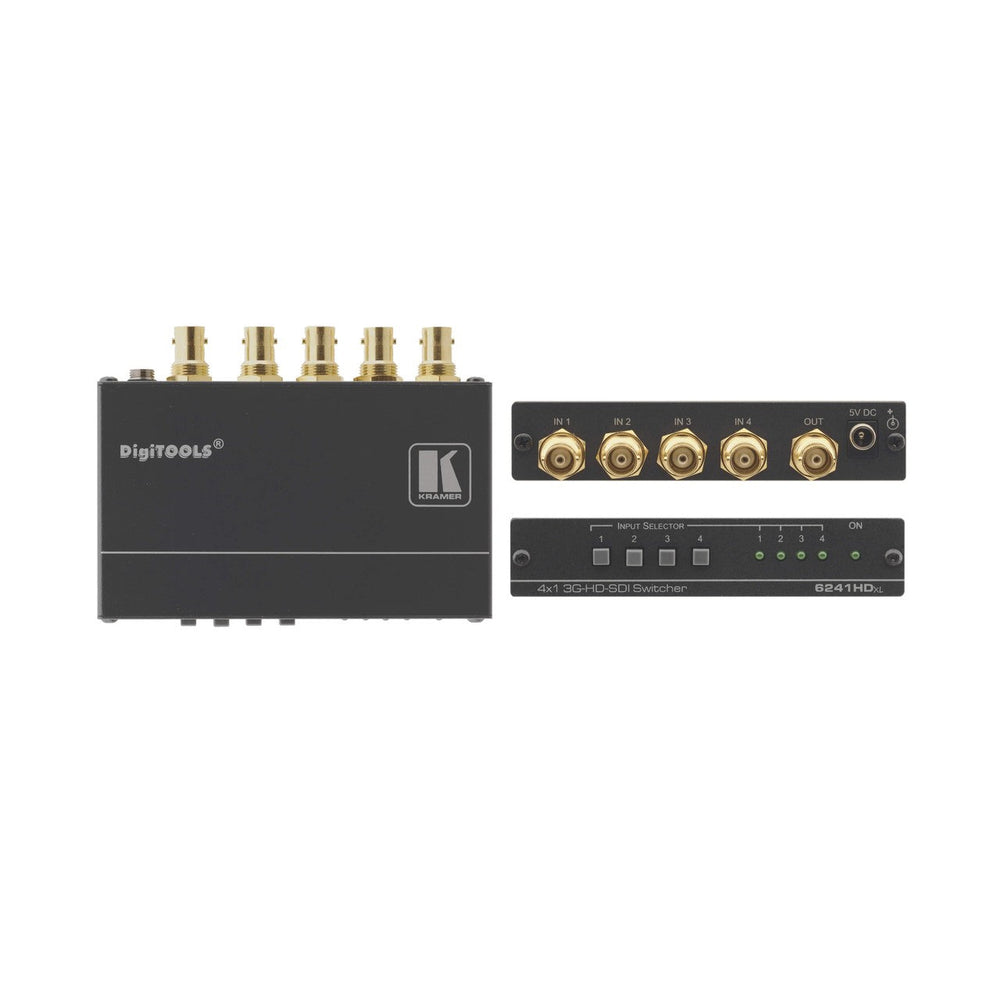

Kramer 6241HDXL 4 x 1 3G HD-SDI Switcher
The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.
Key Features
- Max. Data Rate - 3Gbps
- HDTV Compatible
- Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
- Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
Technical Specifications
INPUTS
4 SMPTE 259M/344M serial digital video inputs (75 OHMS) on BNC connectors
OUTPUTS
1 SMPTE 259M/344M serial digital video output (75 OHMS) on BNC connectors
MAX. DATA RATE
2.97Gbps
MAX. OUTPUT LEVEL
800mVpp/75 OHMS
EQUALIZATION
Automatic equalization for losses on 75 OHMS coaxial cable
POWER CONSUMPTION
5V DC, 410mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.5lbs) approx.
SHIPPING DIMENSION
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.2lbs) approx.
