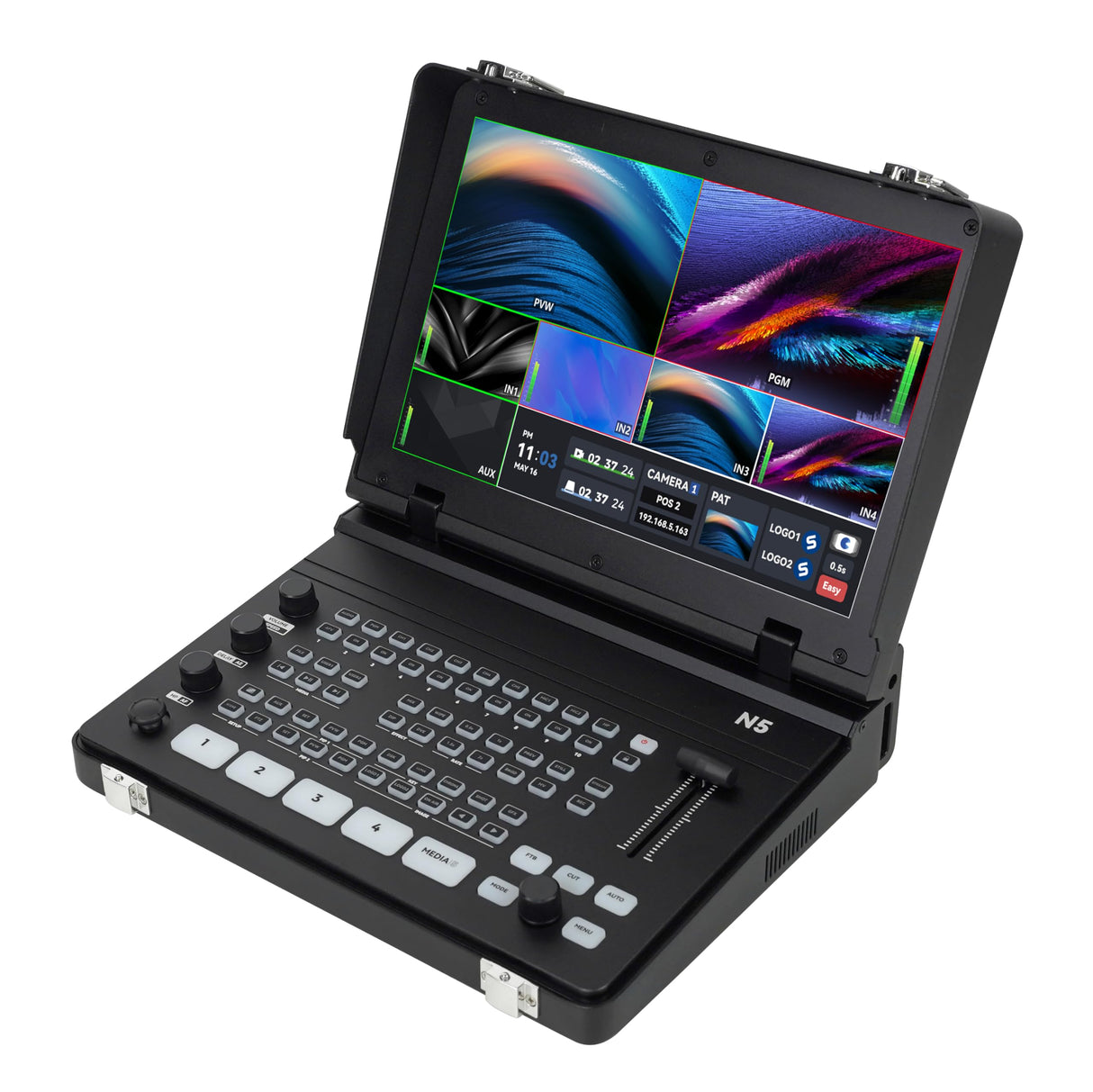

Sprolink NeoLIVE N5S 8-Input SDI/HDMI Live Streaming Switcher 10.1in Touch

Sprolink NeoLIVE N5S - Laptop-Style 8-Input SDI/HDMI Live Production Switcher

The Sprolink NeoLIVE N5S is a professional laptop-style live production switcher designed for on-the-go broadcast and streaming workflows. Featuring a 10.1-inch flip-up touchscreen and eight total inputs - four 3G-SDI and four HDMI - the N5S delivers broadcast-grade flexibility in a self-contained, portable form factor. HDMI inputs 1 and 2 support 4K resolution, enabling high-resolution source integration alongside your SDI camera chain.

Built for operators who need to produce and stream without a dedicated PC, the NeoLIVE N5S includes a hardware-based live streaming engine that pushes directly to platforms via Ethernet. Dual HDMI outputs plus one SDI output allow simultaneous program and multiview monitoring on three external displays. USB and HDD recording lets you capture your full program locally while streaming, and the built-in media player can pull video files from USB storage for use as a live input source.

Advanced production tools round out the feature set: PTZ camera control for up to four cameras, chroma key compositing, Lower Third dynamic text overlays, portrait/landscape screen rotation, AFV/MIX audio mixing with headphone monitoring, and a web server interface for remote control. NDI input support (optional) adds IP camera and source flexibility for networked production environments. Whether you are a live event producer, house-of-worship AV team, or broadcast professional, the NeoLIVE N5S centralizes your entire production workflow in one compact unit.

Key Features

• 8 Total Inputs (4x SDI + 4x HDMI): Accepts four 3G-SDI sources and four HDMI sources simultaneously; HDMI inputs 1 and 2 support 4K resolution for high-resolution camera and presentation integration.
• 10.1in Flip-Up Touchscreen: Integrated display gives direct tactile control over transitions, sources, and production settings without requiring an external monitor or control surface.
• Built-In Hardware Streaming Engine: Stream live to TikTok, YouTube, Instagram, and other RTMP/SRT destinations directly over Ethernet - no capture card or PC required; dual-channel simultaneous streaming supported.
• Flexible Outputs with Multiview: Two independent HDMI outputs plus one SDI output support simultaneous PGM and multiview (MV) feeds so you can monitor multiple sources and program output on three displays at once.
• USB/HDD Recording and Media Playback: Record program audio and video locally to a USB drive or external hard disk while streaming; built-in media player lets you use stored video files as a live input source.

Technical Specifications

• Video Inputs: 4x 3G-SDI, 4x HDMI (HDMI 1-2 support 4K)
• Video Outputs: 2x HDMI (PGM + MV independent), 1x SDI
• Display: 10.1in flip-up capacitive touchscreen
• Streaming: Dual-channel RTMP/SRT streaming via Ethernet; no PC required
• Recording: USB drive or external HDD recording
• Audio: Professional audio mixer with AFV and MIX modes; headphone monitoring output
• Capture: USB Type-C 3.0 lossless capture output
• NDI: NDI input support (optional)
• PTZ Control: Controls up to 4 PTZ cameras
• Production Tools: Chroma key, Lower Third text overlay, multiple transition effects, Super Source output
• Remote Control: Built-in web server for remote operation
• Screen Orientation: Portrait and landscape rotation supported
• Weight: Approx. 4 lb (see assumptions)
• Dimensions: Approx. 6 x 6 x 6 in (see assumptions)
