VigilLink VLSW-41H20R: 4x1 HDMI 2.0 Switch with Audio ARC 18Gbps

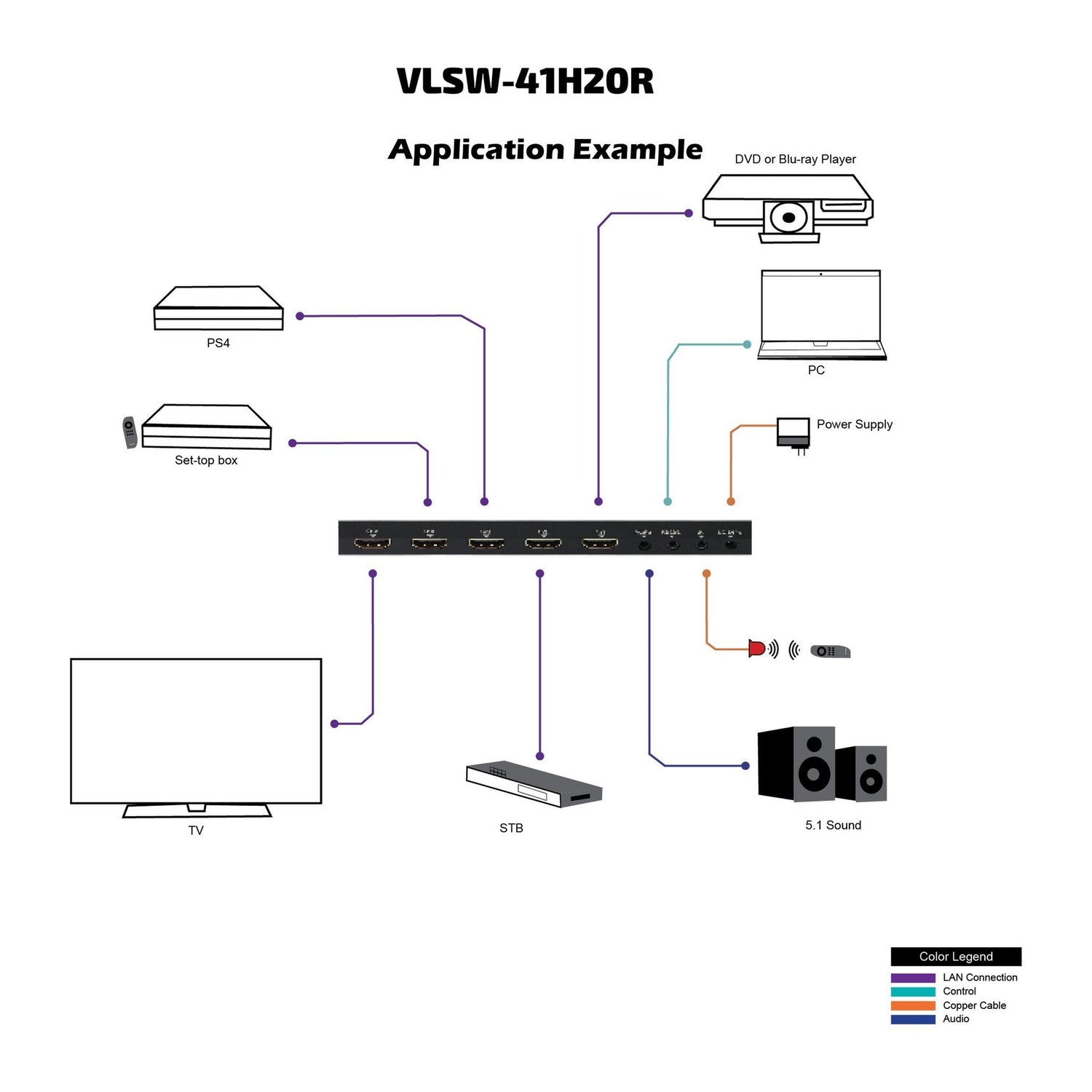

The VigilLink VLSW-41H20R is a high-performance 4x1 HDMI switcher designed to seamlessly connect up to four HDMI sources to a single HDMI display. Supporting HDTV formats up to 4Kx2K at 60Hz and all HDMI 3D TV formats, this switcher ensures exceptional video quality and versatility for various multimedia applications. Whether you're integrating multiple gaming consoles, streaming devices, or Blu-ray players, the VLSW-41H20R provides a reliable and efficient solution for managing your HDMI connections.

One of the standout features of the VLSW-41H20R is its ability to extract HDMI stream audio to separate digital and analog audio outputs. This functionality allows users to connect external audio systems or soundbars, enhancing the overall audio experience without compromising video quality. The switcher supports a wide range of audio formats, including PCM 2.1/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby TrueHD, and DTS-HD, catering to diverse audio preferences and setups.

Designed with user convenience in mind, the VLSW-41H20R offers multiple control options, including an IR receiver and RS232 port, facilitating seamless integration into existing control systems. Its compact dimensions and lightweight design make it easy to install in various environments, from home theaters to professional AV setups. With HDCP compliance (versions 1.4 and 2.2) and a robust 18Gbps video bandwidth, the VLSW-41H20R ensures compatibility with the latest HDMI standards and delivers a smooth, uninterrupted viewing experience.

Key Features

• Supports up to 4Kx2K at 60Hz and all HDMI 3D TV formats
• Extracts HDMI audio to separate digital and analog outputs
• Supports multiple audio formats: PCM 2.1/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby TrueHD, DTS-HD
• HDCP 1.4 and 2.2 compliant
• 18Gbps video bandwidth for high-quality video transmission
• IR receiver and RS232 port for versatile control options
• Compact and lightweight design for easy installation

Technical Specifications

HDCP Compliance: HDCP 1.4, 2.2
Video Bandwidth: 18Gbps
HDMI Audio Output: PCM 2.1/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby TrueHD, DTS-HD
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connections:
Input Ports: 4× HDMI (Female ports), 1× IR (Receive port), 1× RS232 port
Output Ports: 1× HDMI (Female port), 1× L/R & Optical port

Mechanical:
Dimensions: 7.09" (D) x 3.35" (W) x 0.46" (H)
Weight: 0.66 lbs

Power Consumption: 2.5W (Max)

Environmental:
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
