BZBGEAR BG-8K-DA12A-G2 1x2 8K HDMI 2.1 Splitter with Audio De-Embedding

BZBGEAR BG-8K-DA12A-G2 1x2 8K HDMI 2.1 Splitter with Auto Downscaling

Product Overview

The BZBGEAR BG-8K-DA12A-G2 is a high-performance HDMI 2.1 1x2 splitter built to distribute one HDMI source to two HDMI displays while preserving premium video and audio quality. With 48Gbps bandwidth support, it handles modern high-frame-rate and high-resolution signals up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) for ultra-smooth motion and detailed, deep-color playback.

Designed for both home entertainment and professional AV environments, this 8K HDMI splitter supports HDCP 2.3 content protection for compatible sources and displays, making it a strong fit for streaming devices, gaming consoles, and presentation systems where protected content and reliable signal distribution matter.

For flexible system design, the BG-8K-DA12A-G2 includes audio de-embedding via optical (S/PDIF) and 3.5mm analog output, plus advanced EDID management, auto downscaling, and HDR-to-SDR conversion to help maintain compatibility across mixed display types without constant reconfiguration.

Key Features

• 1x2 HDMI Signal Distribution: Sends one HDMI source to two HDMI displays for multi-screen viewing and mirrored output applications.
• 48Gbps HDMI 2.1 Bandwidth: Supports 48Gbps FRL and 18Gbps TMDS for high-data-rate video transport and modern HDMI 2.1 feature support.
• 8K60 and 4K120 Support: Handles up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) for next-gen gaming and high-performance AV playback.
• HDR Pass-Through: Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG for enhanced contrast, brightness, and color detail.
• Gaming-Optimized Features: Supports VRR, FVA, and ALLM to help reduce tearing and latency for smoother gameplay.
• Audio De-Embedding Outputs: Extracts audio to optical (S/PDIF) and 3.5mm analog for integration with external sound systems.
• Auto Downscaling and HDR-to-SDR Conversion: Improves compatibility when displays have different supported resolutions or HDR capabilities.
• Advanced EDID Management: Helps ensure reliable source-to-display communication in varied AV system builds.
• Firmware Upgradeable via USB-C: Dedicated USB Type-C service port supports firmware updates.
• Metal Enclosure: Durable metal housing designed for dependable use in home or professional installations.

Technical Specifications

• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3, HDCP 1.4
• Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
• Max Video Resolution: Up to 8K@60Hz 4:2:0 12-bit; 4K@120Hz 4:4:4 12-bit
• Color Depth: 8/10/12-bit
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• HDR Formats: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI Audio Formats (In/Out): LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Audio De-Embedding Output (Optical): LPCM/Dolby/DTS 5.1CH
• Audio De-Embedding Output (Analog): LPCM 2CH
• ESD Protection: IEC 61000-4-2; ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

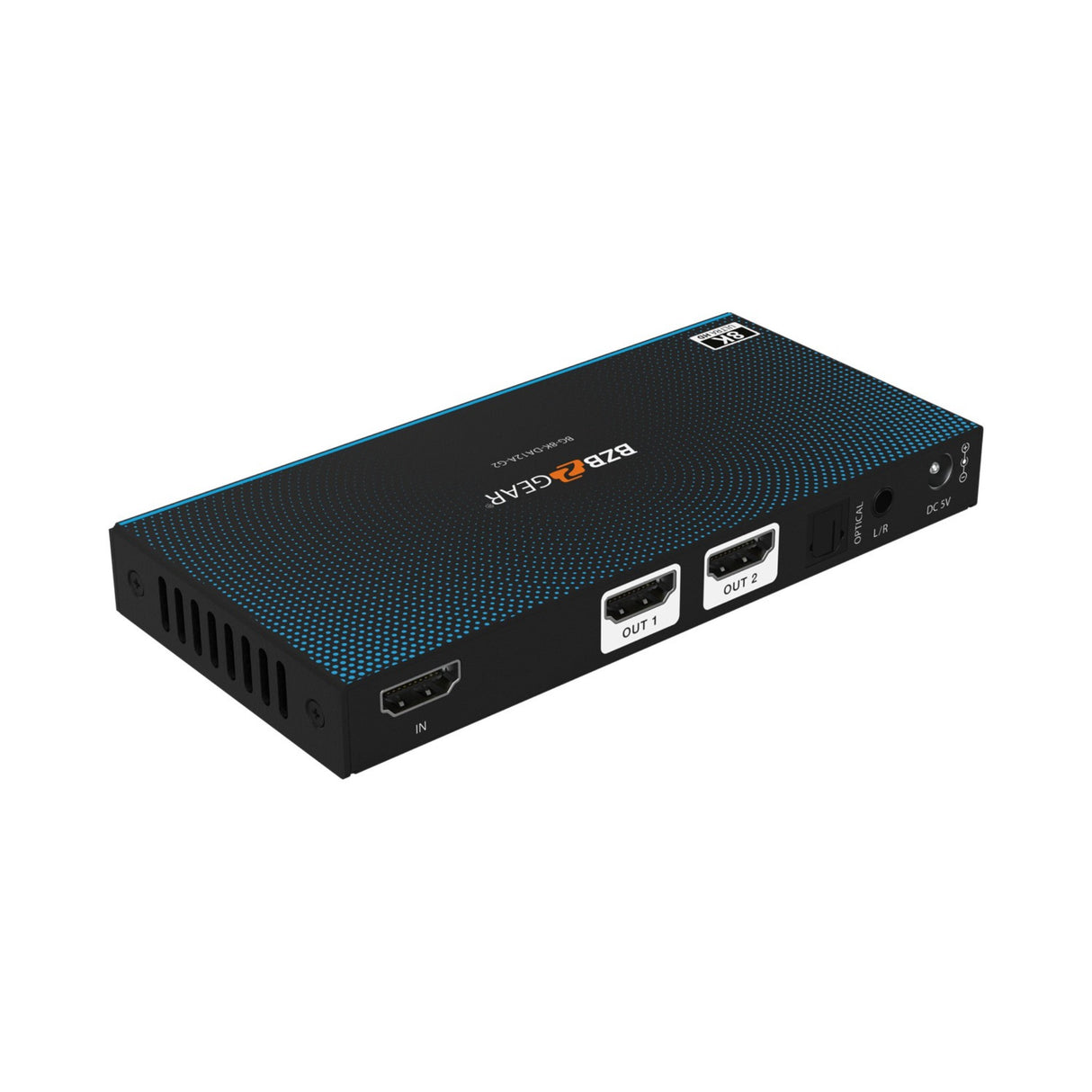

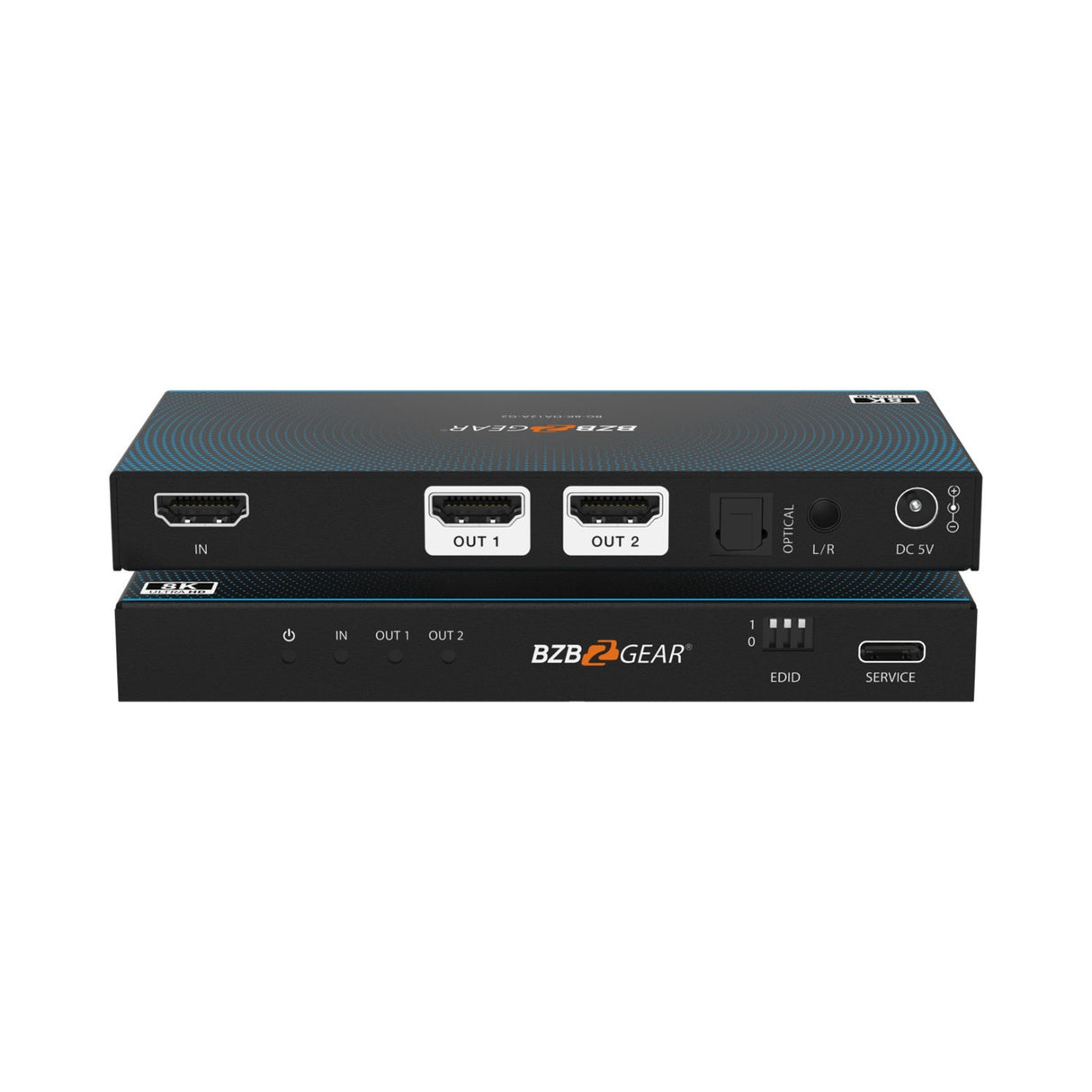

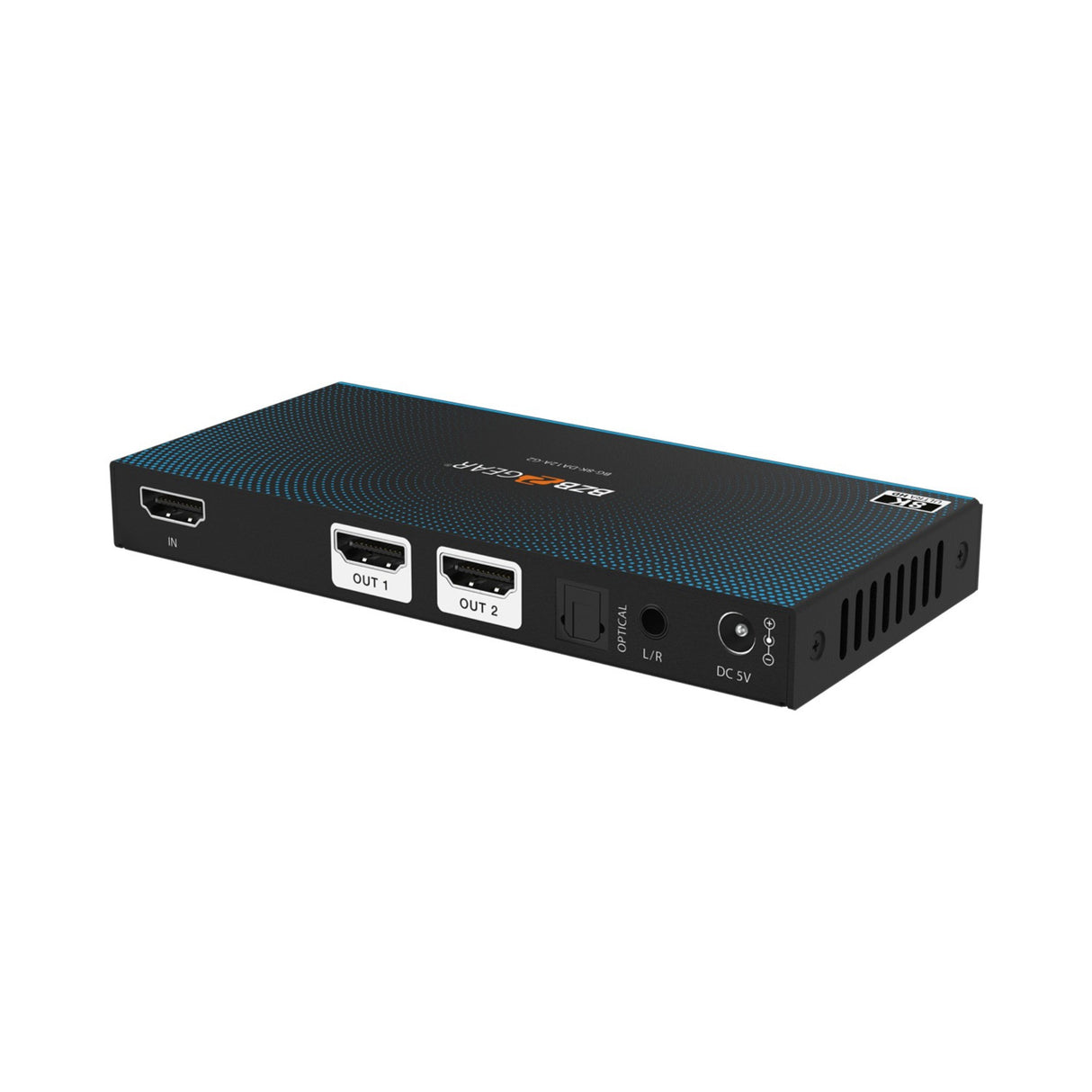

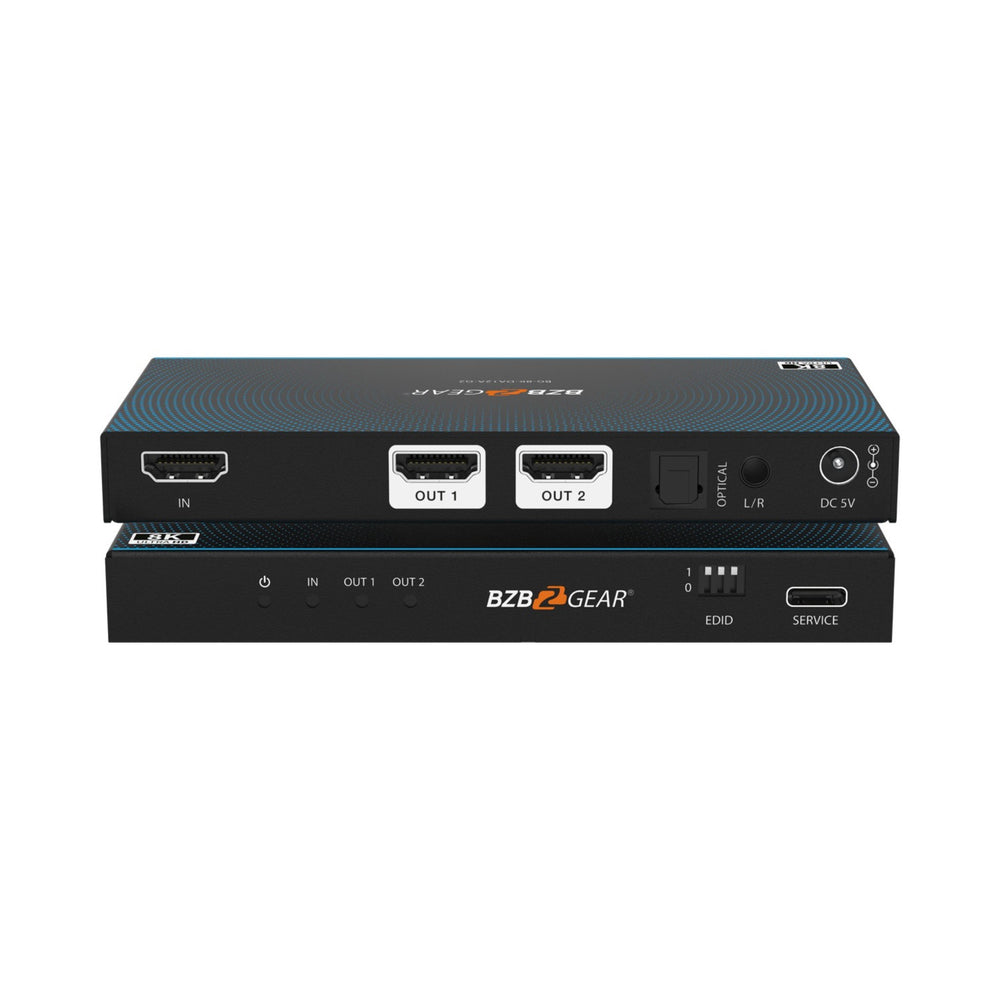

• Inputs: 1 x HDMI IN (Type A, 19-pin female)

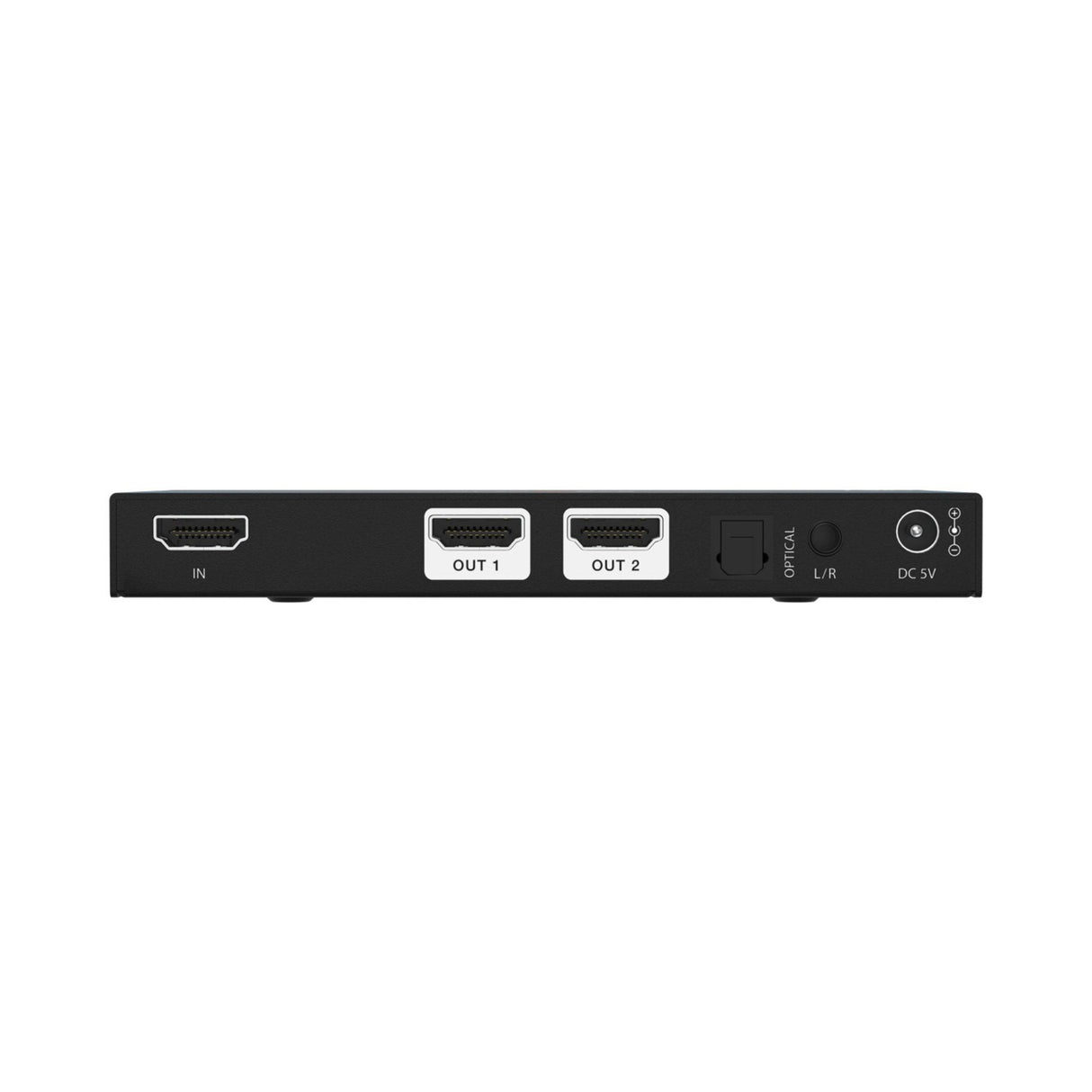

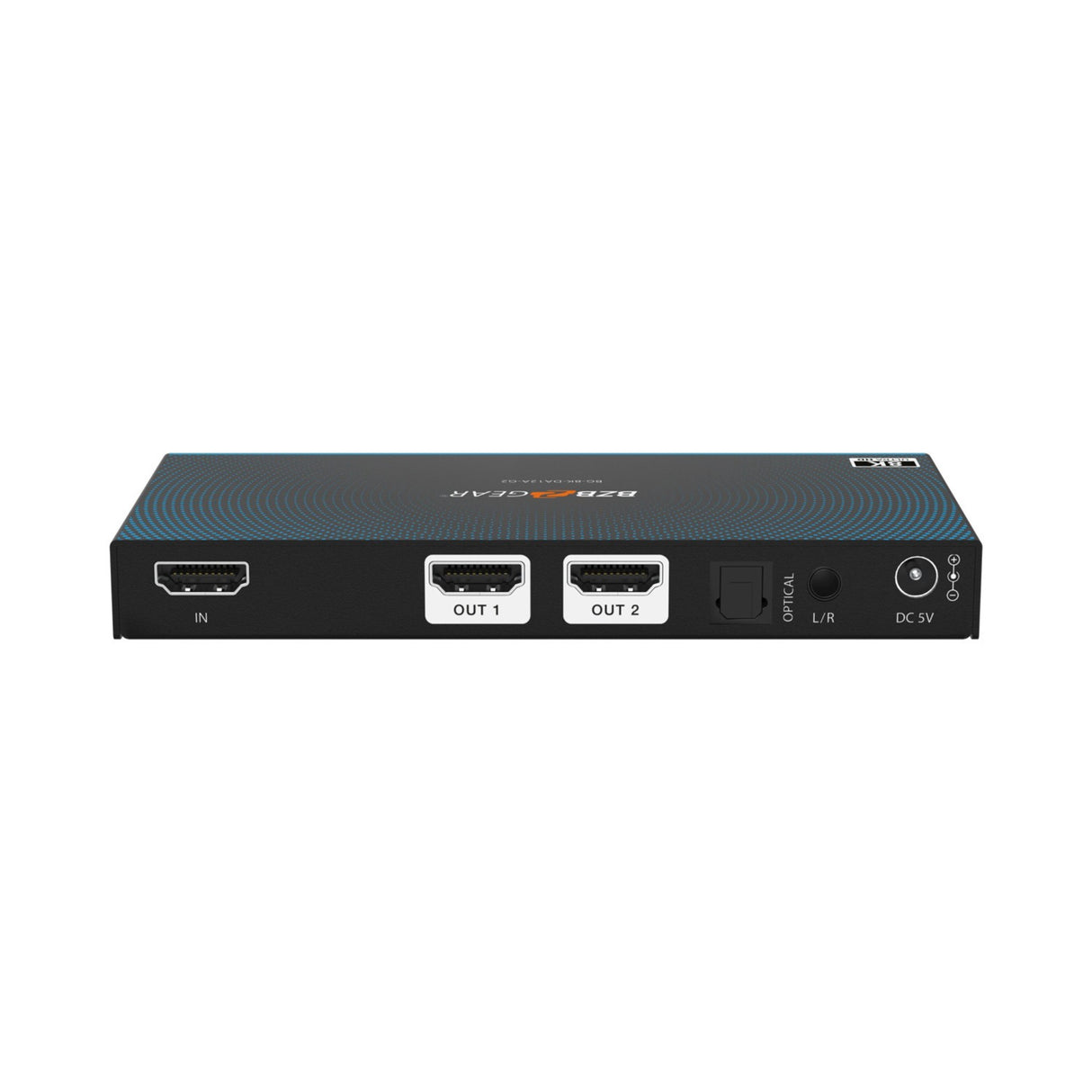

• Outputs: 2 x HDMI OUT (Type A, 19-pin female); 1 x Optical (S/PDIF); 1 x 3.5mm stereo mini-jack (L/R)

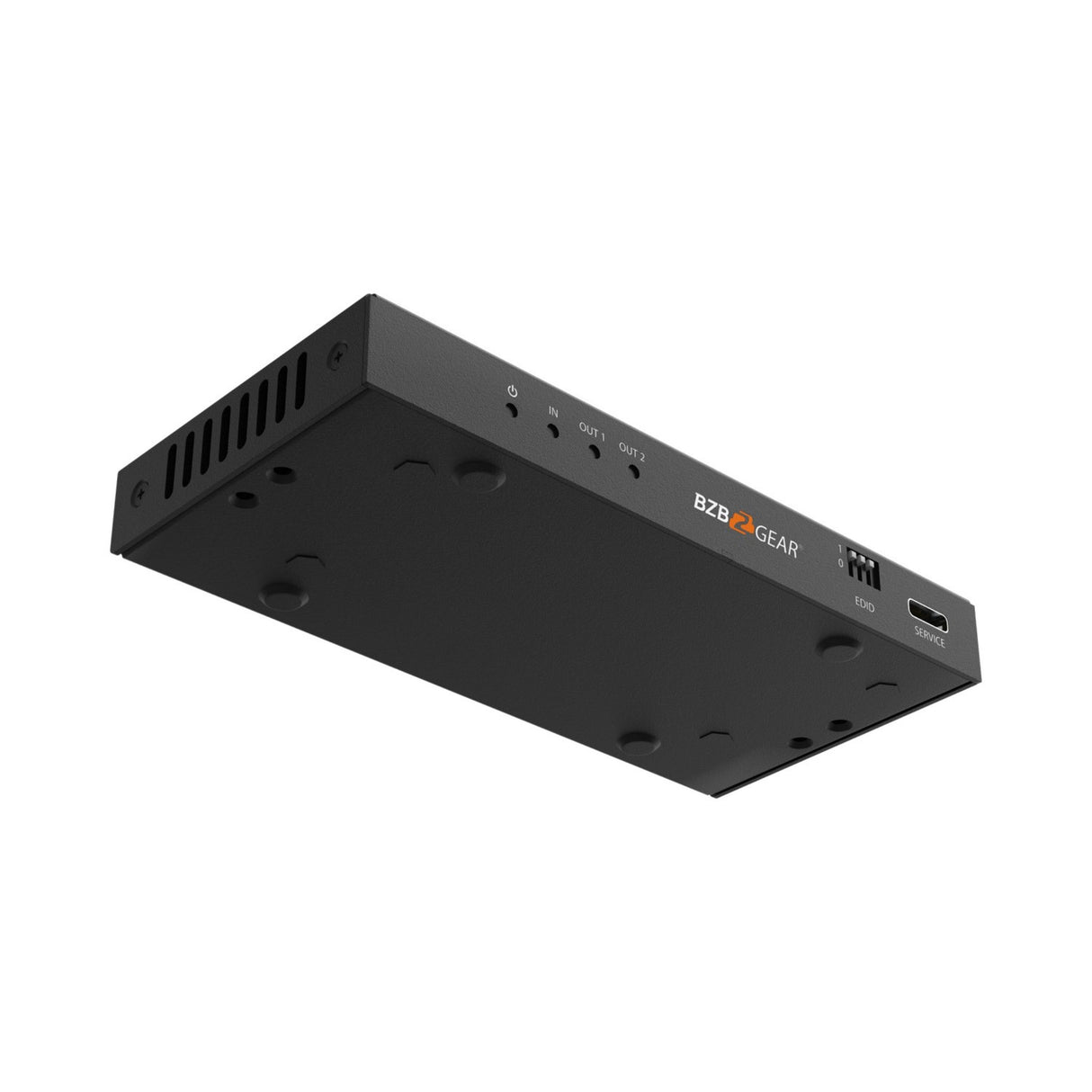

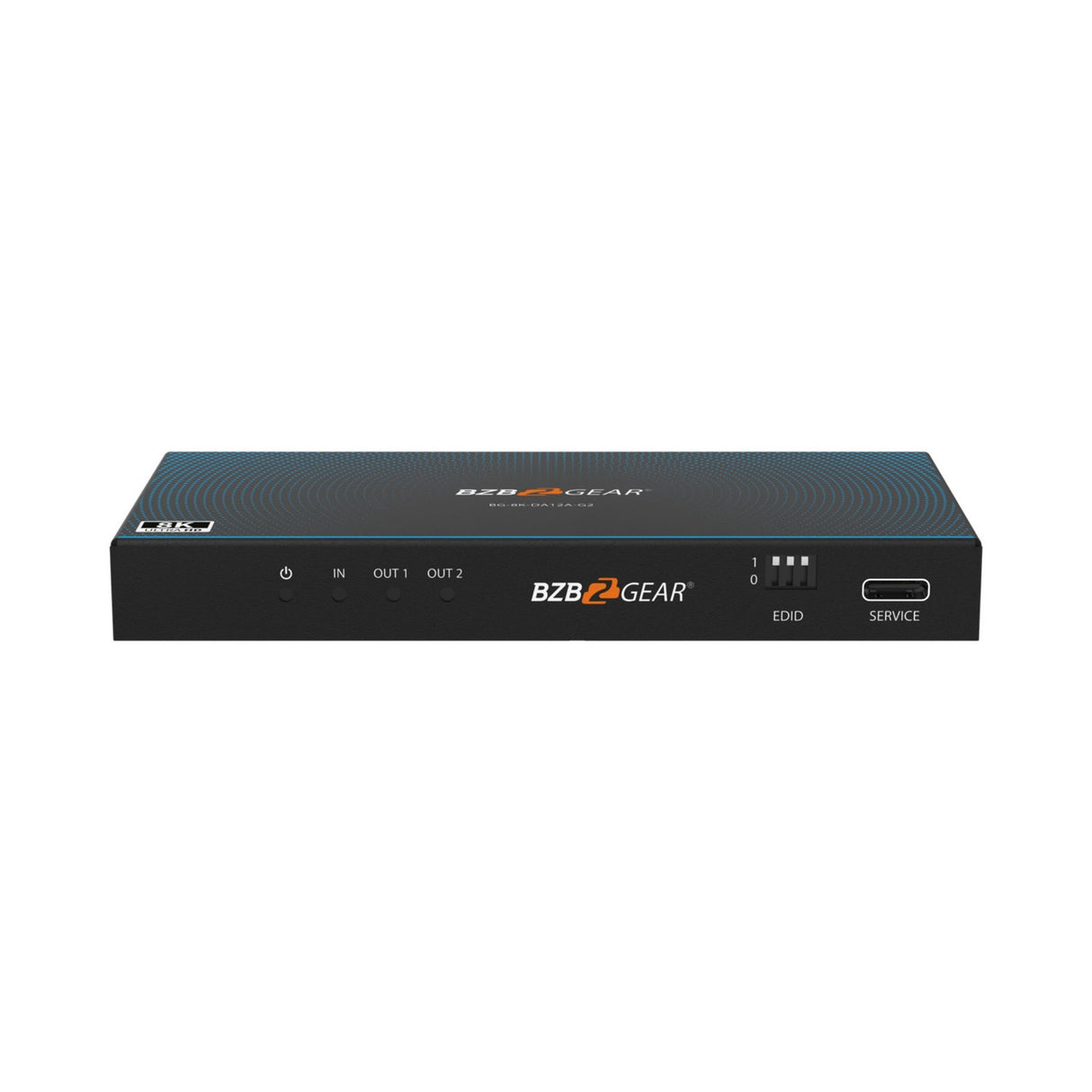

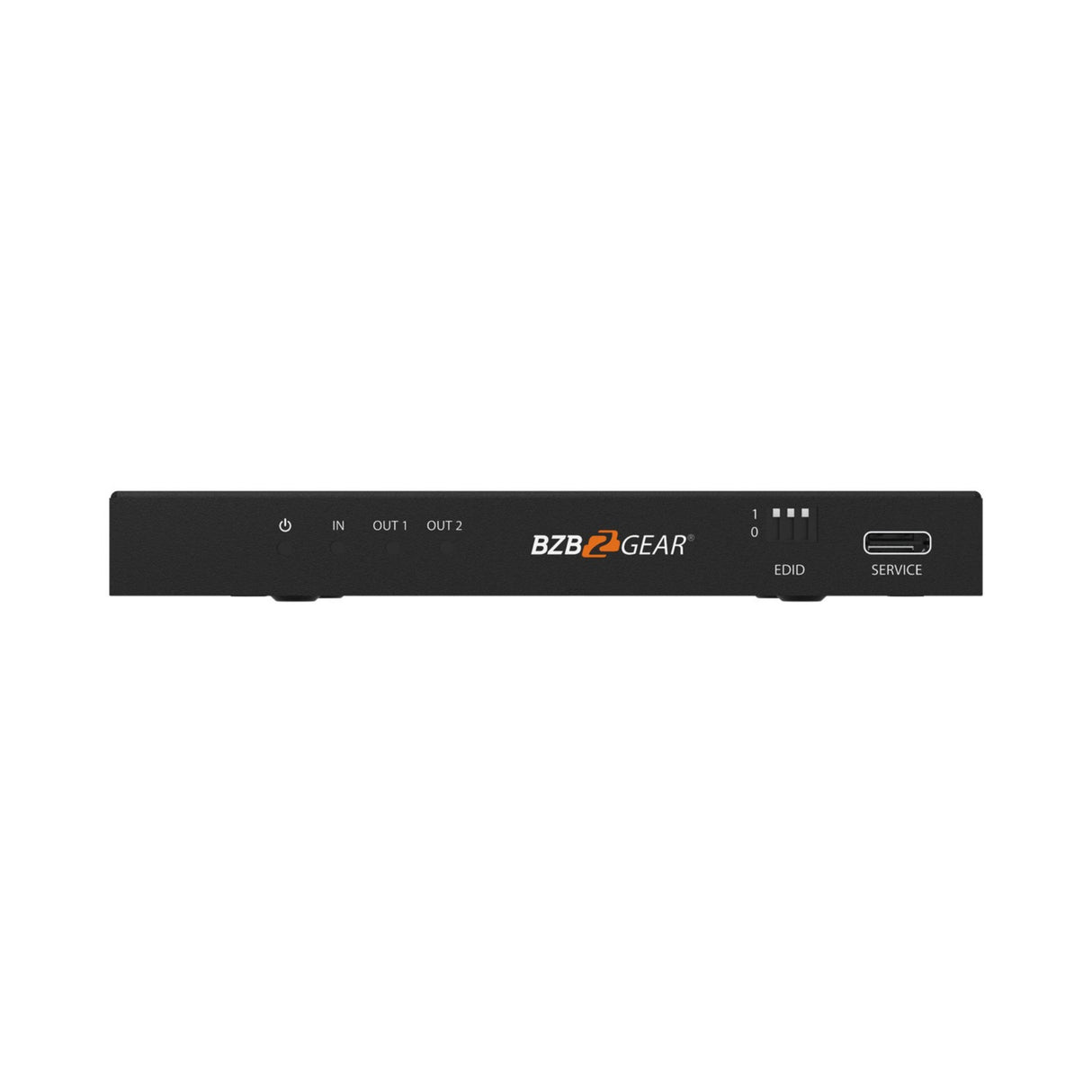

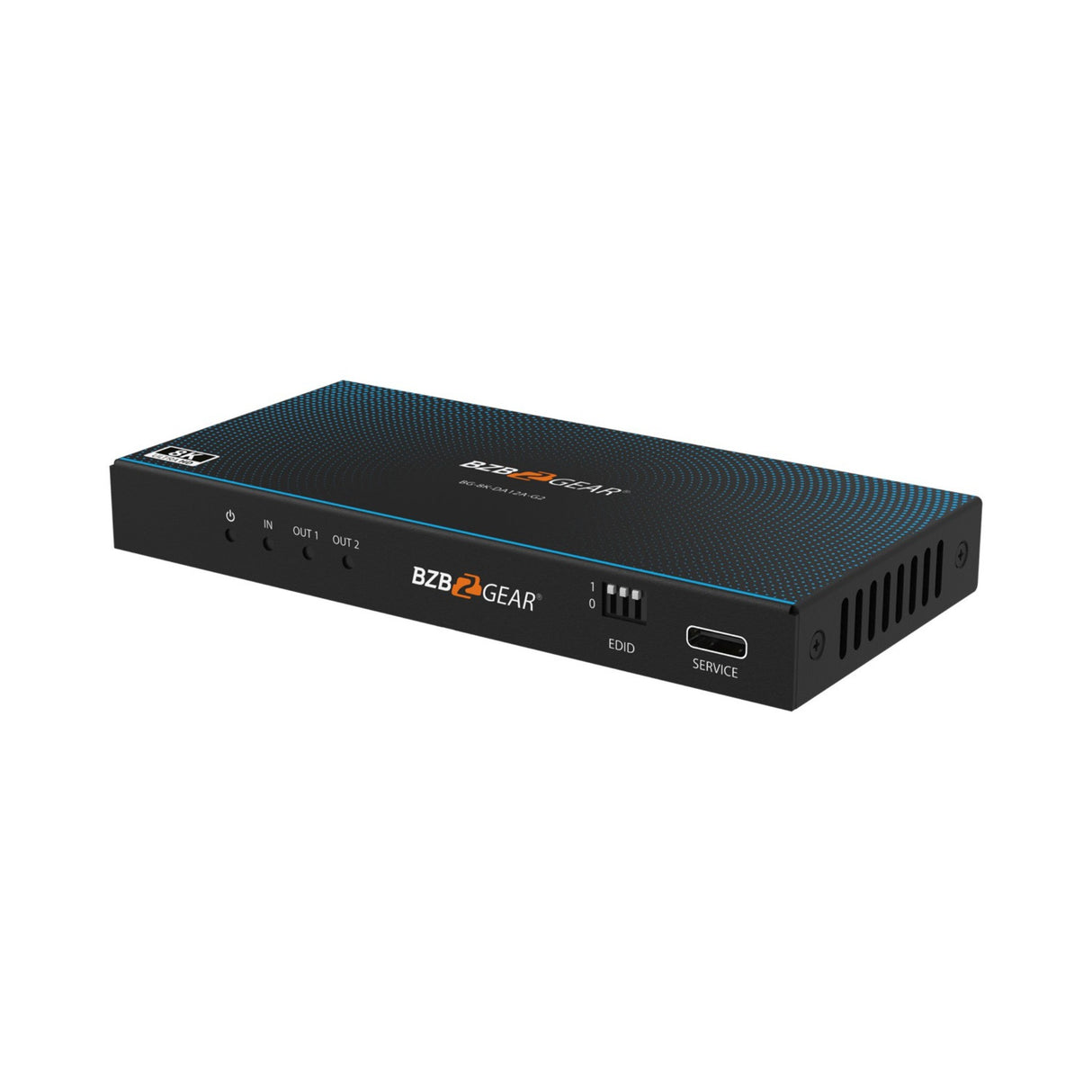

• Control/Service: 1 x USB Type-C (update port)
• Power Supply: AC 100-240V 50/60Hz input; DC 5V/2A output (US/EU standards, CE/FCC/UL certified)
• Max Power Consumption: 4.5W
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Relative Humidity: 20% to 90% RH (non-condensing)
• Recommended HDMI Cable Length (Ultra HDMI 2.1): Up to 10ft at 8K; up to 26ft at 4K60; up to 39ft at 4K24; up to 49ft at 1080p
• Cable Recommendation: “Premium High Speed HDMI” cable is highly recommended

Package Contents

• 1x 8K HDMI 1x2 Splitter
• 1x 5V/2A Multinational Power Supply
• 1x User Manual
