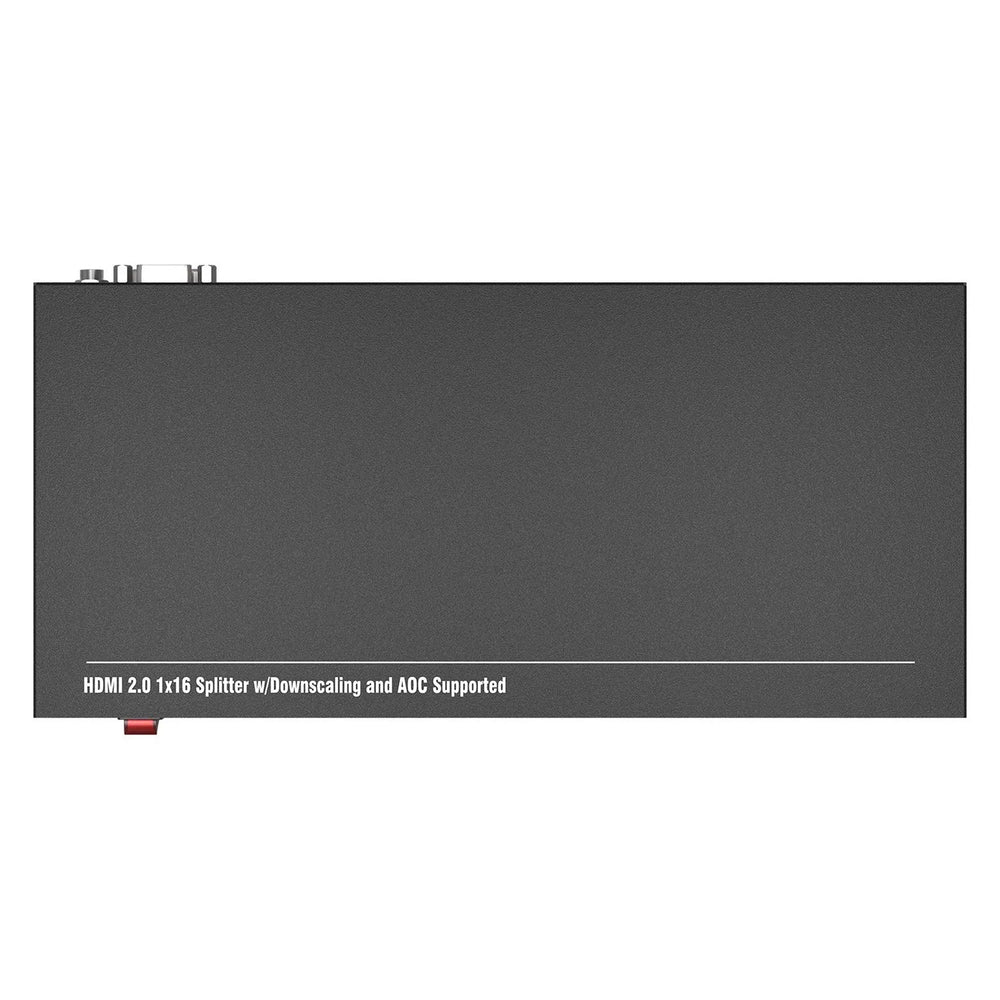

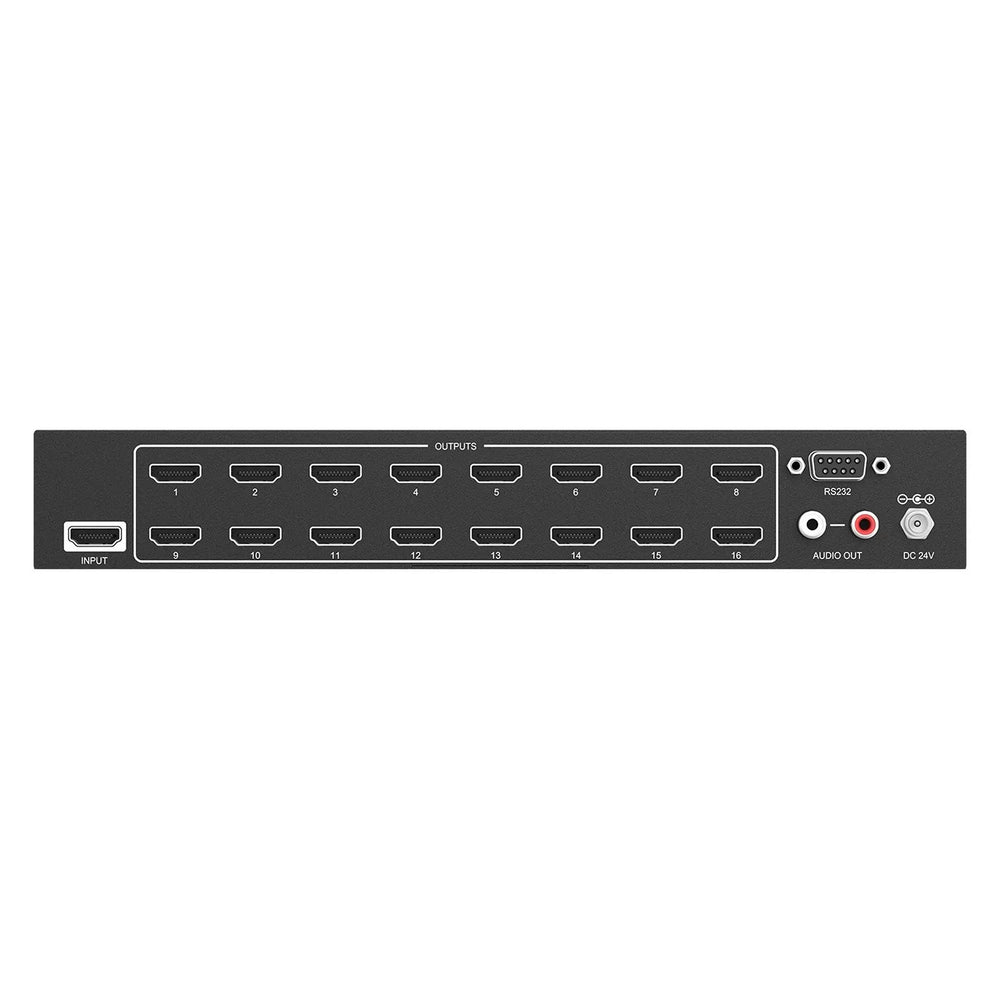

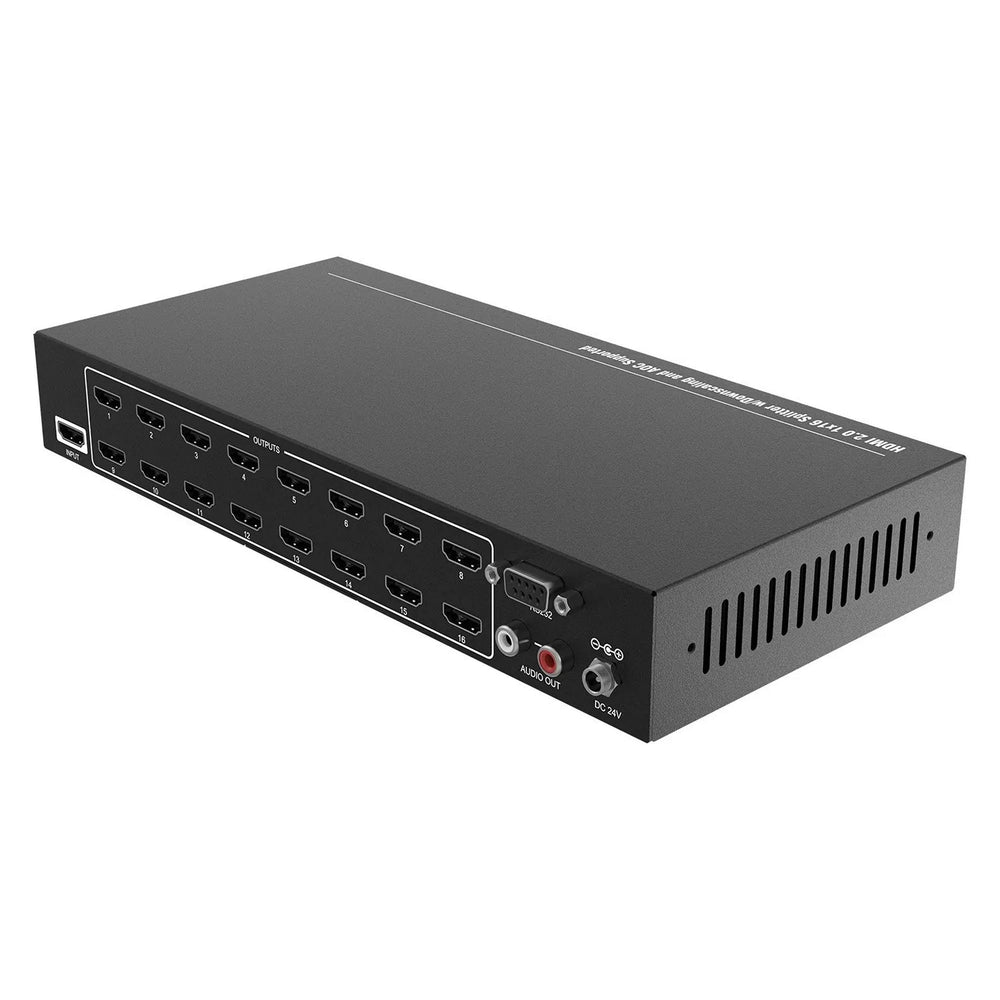

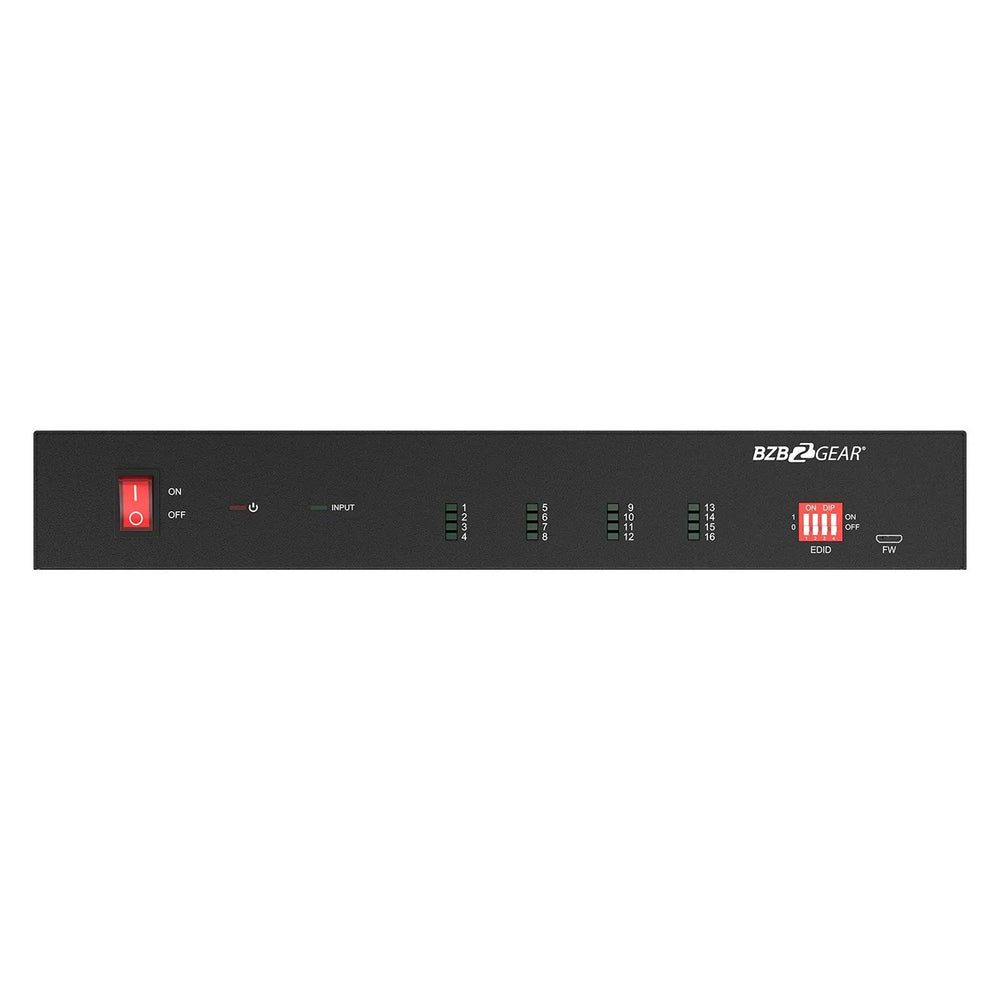

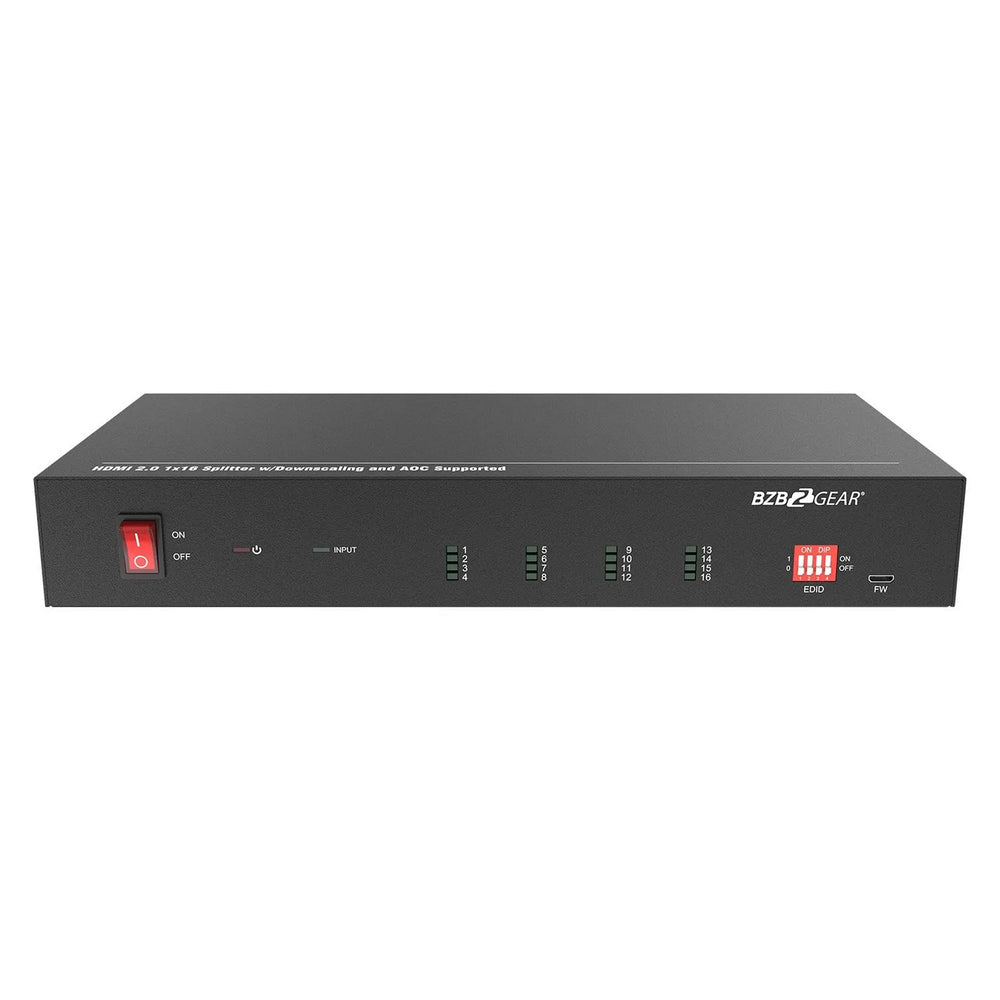

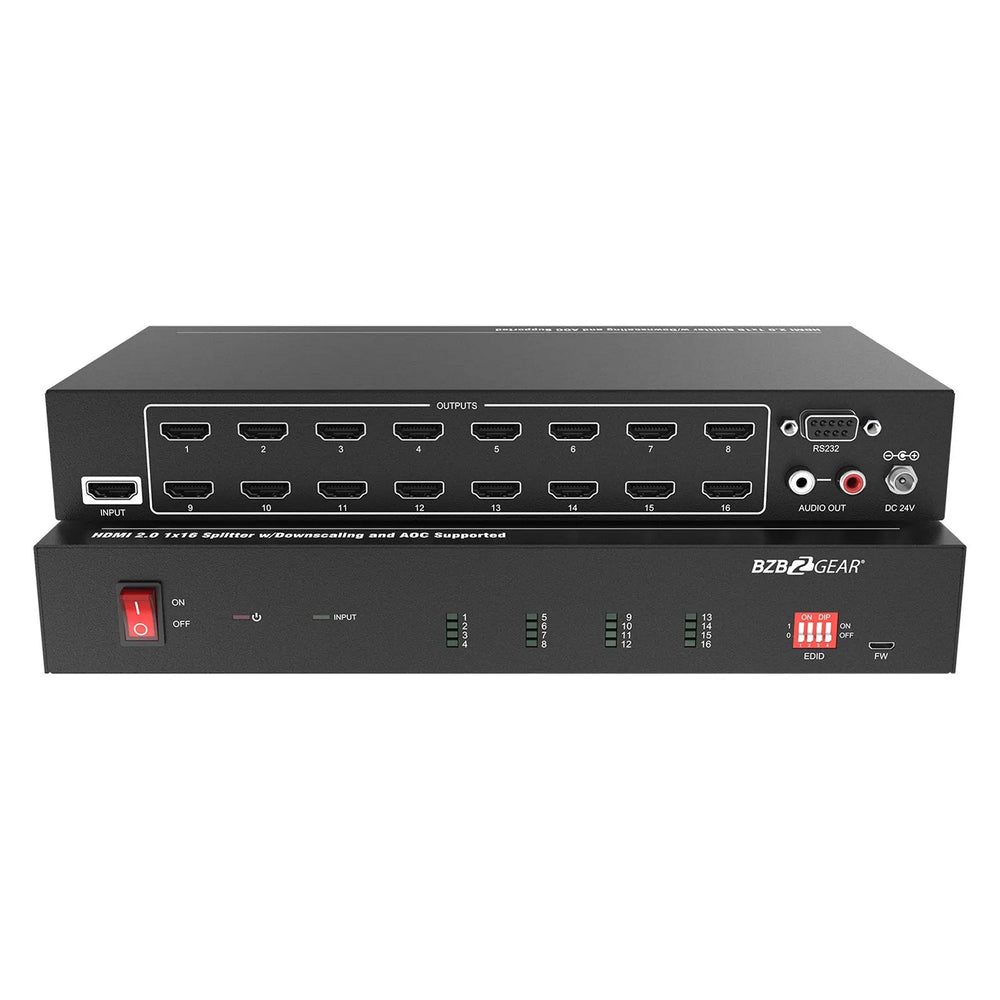

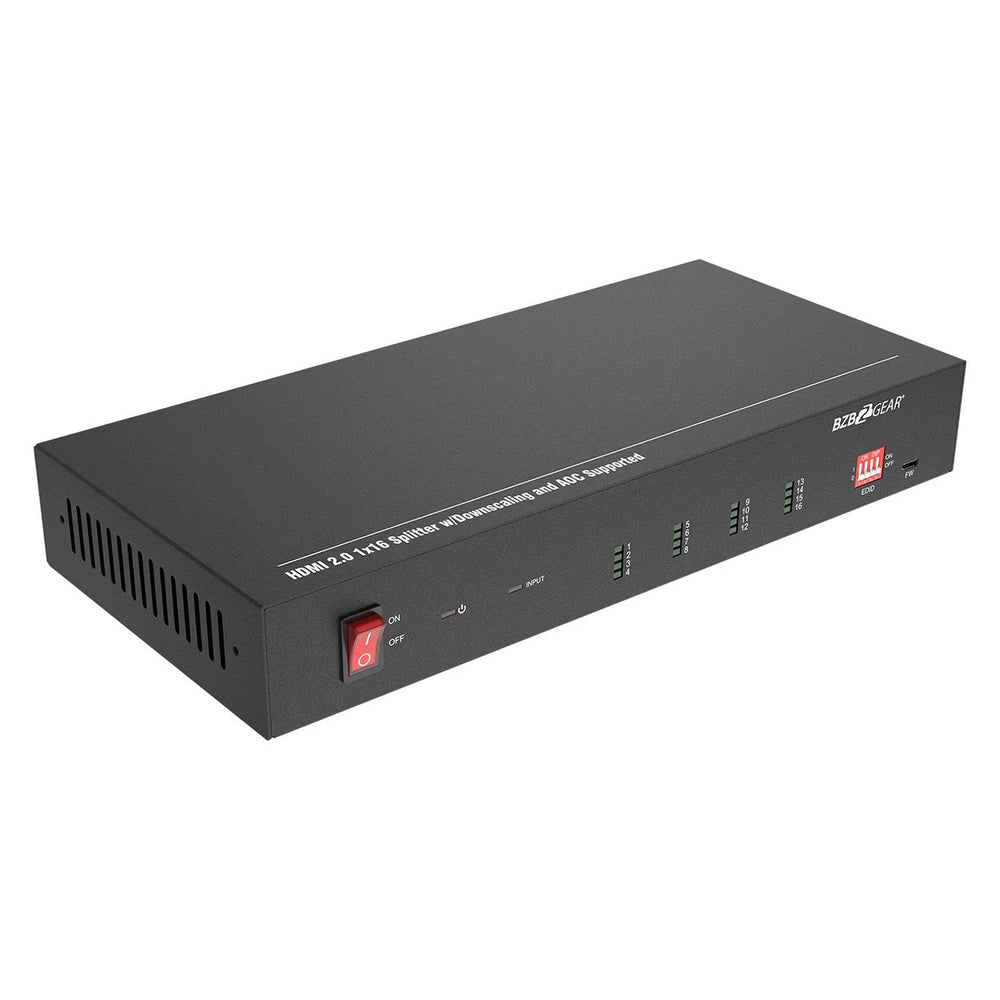

BZBGEAR BG-UHD-DA1X16 HDMI V2.0 1X16 Splitter with Downscaling and AOC Supported

The BG-UHD-DA1X16 can distribute one HDMI input to sixteen HDMI outputs. The splitter supports 4K signals up to 4K@60Hz 4:4:4, HDR 10, Dolby Vision and features advanced EDID management option using 4-pin DIP switch on the front panel of the unit. It also supports downscaling so a 4K video input can automatically be down scaled to a 1080p output when connecting a display that only supports resolution up to 1080p. Stereo analog L/R audio output is provided for audio de-embedding from HDMI input and the splitter supports CEC and RS232 control.

Key Features

• HDMI V2.0, 4K@60Hz 4:4:4 8bit, HDR 10, Dolby Vision.
• HDCP 2.2 compliant.
• Compatible with HDMI AOC cable, provides up to 5V100mA power on each output.
• Auto 4K to 1080p downscaling.
• Stereo analog L/R audio output for audio de-embedding from HDMI input.
