KanexPro SP-1X16SL18G 1 x 16 HDMI 2.0 Splitter with Downscaling

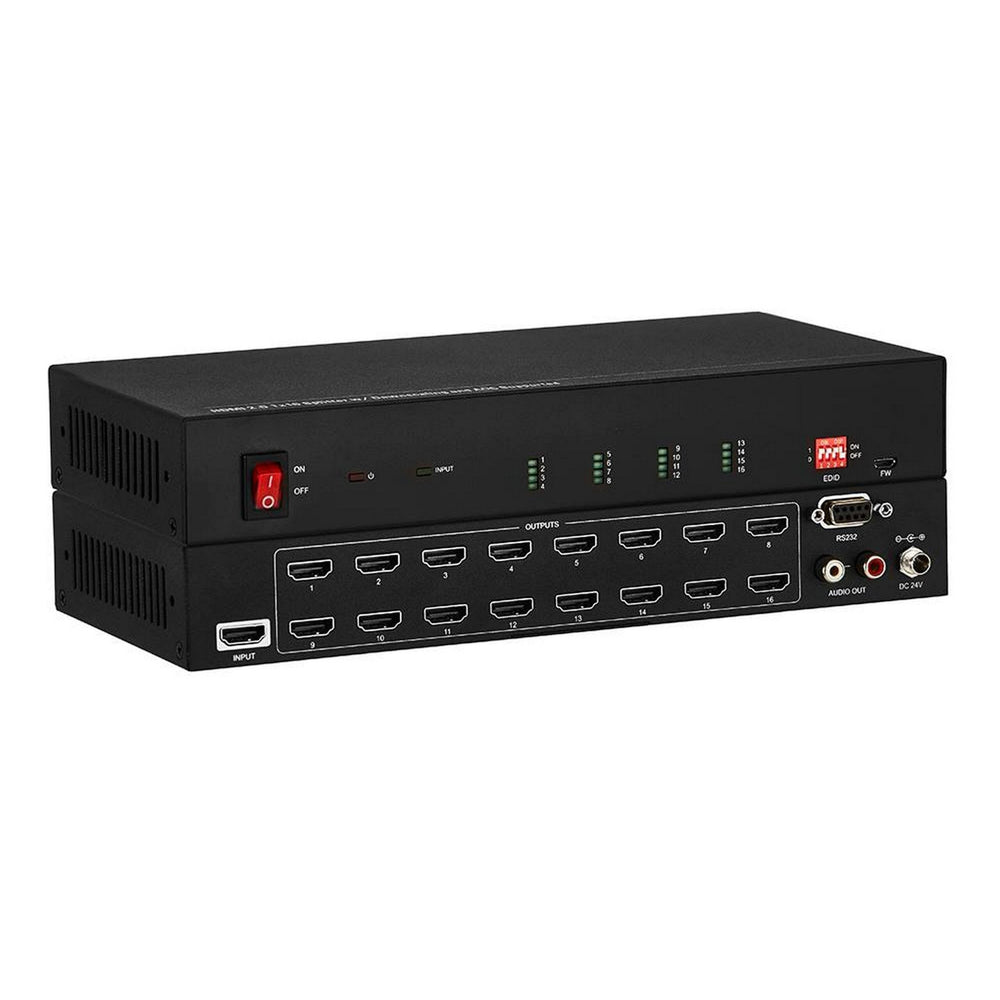

The KanexPro 1x16 HDMI 2.0 Splitter with Downscaling is an installer-friendly, lightweight HDMI splitter that distributes one HDMI input into eight outputs supporting uncompressed 4K UHD resolutions as well as video resolution down-scaling, the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p displays.
Key Features
- Supports HDMI V2.0 and the video resolution up to 4K@60Hz 4:4:4
- HDMI input supports HDCP 2.2 and the outputs support HDCP1.4
- Compatible with HDMI AOC cables, provides up to 5V 200mA power on each output
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display
- 18Gbps high bandwidth
- Advanced EDID management: multiple preset and user defined allowed
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
Technical Specifications
Video
Input
(1) HDMI
Input Connector
(1) Type-A female HDMI
Input Video Resolution
Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision
Output
(16) HDMI
Output Connector
(16) Type-A female HDMI
Output Video Resolution
Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling
HDMI Output
Supports up to 5V100mA power for AOC cable
HDMI Standard
V2.0
HDCP Version
2.2
HDMI Audio Signal
LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through.
Analog Audio Output
Output
(1) AUDIO
Output Connector
(1) RCA (L+R)
Frequency Response
20Hz~20kHz, -1dB
Max output level
2.0Vrms - 0.5dB. 2V=16dB headroom above-10dBV (316mV) nominal consumer line level signal
THD+N
< 0.05%, 20Hz~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)
SNR
> 80dB, 20Hz~20kHz bandwidth
Crosstalk isolation
< -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R level deviation
< 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
Output load capability
1Kohm and higher (supports 10x paralleled 10Kohm loads)
Noise Level
- 80dB
Control Part
Control Port
(1) EDID Switch, (1) FW, (1) RS232
Control Connector
(1) 4-pin DIP switch, (1) Micro-USB, (1) Female DB9
General
Bandwidth
18Gbps
Relative Humidity
10%-90%
External Power Supply
Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
Power Consumption
26W (Max)
Dimension(W*H*D)
268mm x 40mm x 125mm
Net Weight
1.14KG
