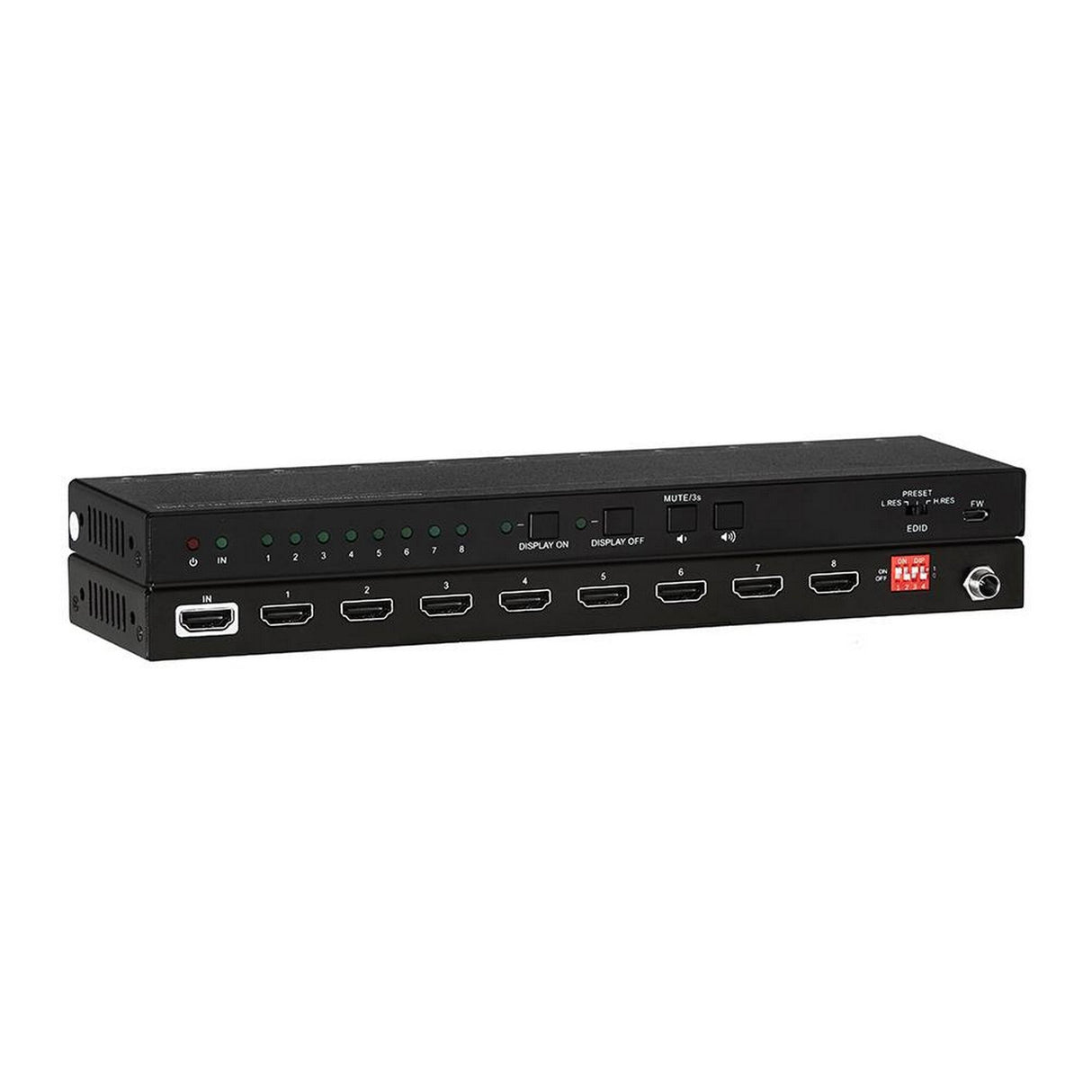

KanexPro SP-1X8SL18G 1 x 8 HDMI 2.0 Splitter with Downscaling
KanexPro SP-1X8SL18G 1 x 8 HDMI 2.0 Splitter with Downscaling
Free Shipping
KanexPro SP-1X8SL18G 1 x 8 HDMI 2.0 Splitter with Downscaling
The KanexPro 1x8 HDMI 2.0 Splitter with Downscaling is an installer-friendly, lightweight HDMI splitter that distributes one HDMI input into eight outputs supporting uncompressed 4K UHD resolutions as well asvideo resolution down-scaling, the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p displays.
Key Features
- Supports HDMI V2.0 and the video resolution up to 4K@60Hz 4:4:4
- HDMI input supports HDCP 2.2 and the outputs support HDCP1.4
- Compatible with HDMI AOC cables, provides up to 5V 200mA power on each output
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display
- 18Gbps high bandwidth
- Advanced EDID management: multiple preset and user defined allowed
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
Technical Specifications
Video Input
Input
(1) HDMI
Input Connector
(1) Female type-A HDMI
HDMI Input Resolution
Up to 4K@60Hz 4:4:4 8bit
HDMI Output
Supports up to 5V 200mA power for AOC cable
HDMI Standard
2.0
HDCP Version
2.2
CEC
Supported
Video Output
Output
(8) HDMI
Output Connector
(8) Female type-A HDMI
HDMI Output Resolution
Up to 4K@60Hz 4:4:4 8bit
HDMI Standard
2.0
CEC
Supported
Control
Control Part
(4) Control buttons; (1) EDID 3-pin DIP switch;
(1) EDID 4-pin DIP switch; (1) Micro-USB port
General
Bandwidth
18Gbps
Relative Humidity
10% to 90%, Non-condensing
Power Supply
Input:100V~240V AC; Output: 12V DC 1A
Power Consumption
7W(Max)
Dimension (W*H*D)
260mm x 20mm x 70mm
Net Weight
500g
