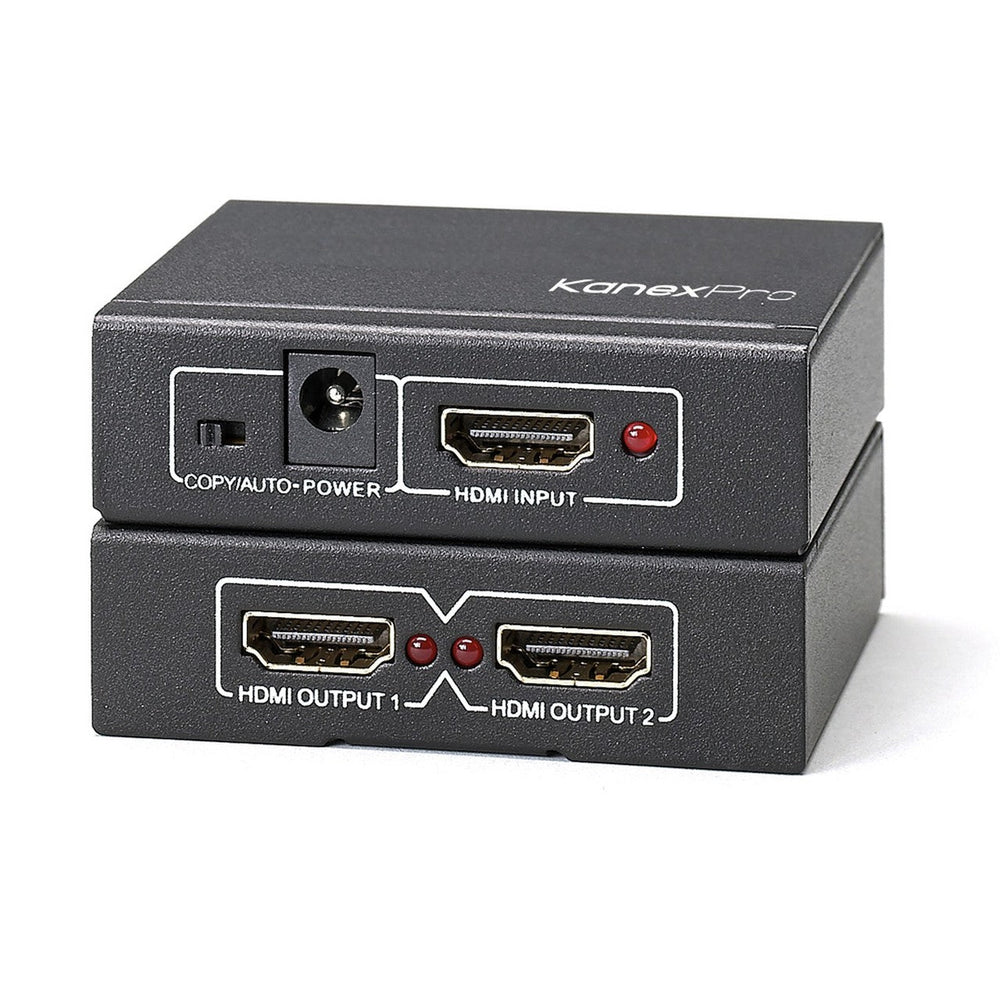

KanexPro SP-HD1X24K 4K HDMI 2-Port Splitter
KanexPro SP-HD1X24K 4K HDMI 2-Port Splitter
KanexPro SP-HD1X24K 4K HDMI 2-Port Splitter
The KanexPro 1x2 HDMI Splitter is a 4K@30Hz compliant distribution amplifier which lets you duplicate one HDMI source to 2 displays without losing signal integrity and resolution.
The Ultra HD 4K format on the HDMI splitter ensures astounding picture quality, four times the resolution of high-definition 1080p at 30 Hz. This HDCP compliant splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, it ensures you'll be ready to take advantage of tomorrow's display technology.
Key Features
- Distribute high-resolution HDMI signals to 2 Ultra HD displays
- Supports full 3D and 4Kx2K resolution
- Supports full HD 1080p (1920 x 1080@60Hz)
- Computer resolution up to WUXGA (1920 x1200@60Hz)
- HDCP & CEC compliant Supports
- Supports latest HDMI High Speed Specifications
- 12-bit per channel (36-bit all channel) Deep color
- Compact metal enclosure
Technical Specification
Signal Inputs/Output
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 4K x 2K
Output Video: HDMI 1.4 with full 3D and 4Kx2K@30Hz + HDCP
CEC - Pass through enabled
Operating Frequency
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 2.97 Gbps
Resolutions (HDTV)
Interlaced (50&60Hz): 480i, 576i, and 1080i
Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K
Power Requirements
External Power Supply: 5V DC@ 1A
Power consumption (Max): 5W
Size: (L-W-H): 2.51"x 2.36"x0.78"
Weight: 0.27 lbs. (25g)
Environment
Operating Temperature: 0Ā°C ~ 40Ā°C / 32Ā°F ~ 104Ā°F
Storage Temperature: -20Ā°C ~ 60Ā°C / -4Ā°F ~ 140Ā°F
Package Contents:
HDMI splitter
5V USB to DC Power Supply
Operation Manual
