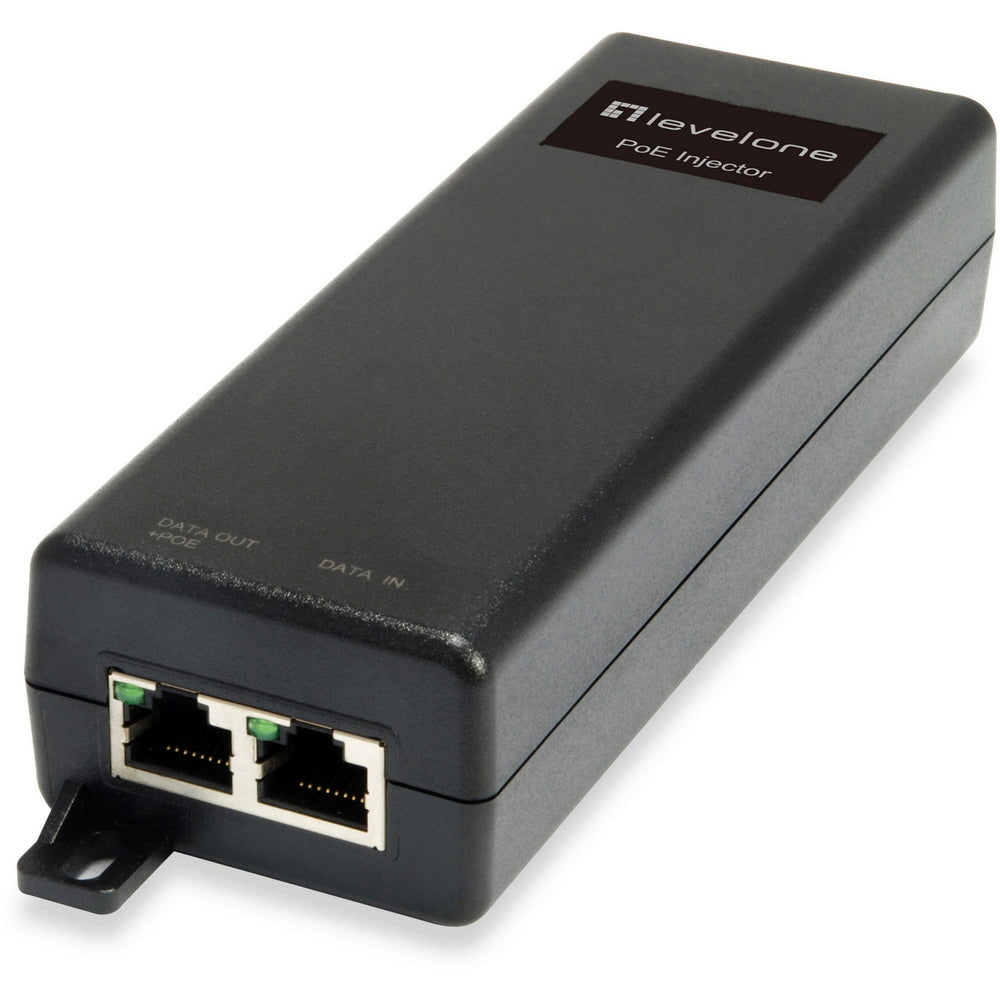

LevelOne POI-3000 Gigabit PoE Injector, 802.3at/af PoE
LevelOne POI-3000 Gigabit PoE Injector, 802.3at/af PoE
LevelOne POI-3000 Gigabit PoE Injector, 802.3at/af PoE
The LevelOne POI-3000 is a single port, high-power PoE PSE solution for remote PoE PD devices. Generating up to 30W , POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Key Features
- IEEE 802.3af/at PoE PSE with 30W power budget
- Auto-detection and protection of non-standard PoE devices
- Unique interlocking feature for easy installation
- 10/100/1000Mbps wire speed transmission and reception
- 6KV surge protection level on each port
Technical Specifications
Standards & Protocols
IEEE 802.3 10Base-T, Ethernet
IEEE 802.3u 100Base-TX, Fast Ethernet
IEEE802.3ab 1000Base-T, Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet (PoE) compliant
Port
1 x 10/100/1000Base-T RJ-45 Input Port
1 x 10/100/1000Base-T RJ-45 PoE Output Port
Indicator
Power, PoE
Pin Assignment and Polarity
1/2 (+), 3/6 (-)
Power Input
PoE Power Output
DC 56V / 30W
Unit Output Voltage
DC 56V / 0.54A
Power Requirement
100-240V AC, 50/60Hz, 0.8A
Power Consumption
30W (Max.)
Power Consumption
30W
Data Rate
10/100/1000Mbps
Operating Temperature (C)
Operating: -20C ~ 60C
Storage: 0C ~ 70C
Operating Humidity (Non-condensing)
Storage: 5% to 95%
Operating: 5 ~ 95%
Mount
Wall mount
Physical
Dimensions (W x D x H mm)
173.5 x 55 x 35.5mm
Weight (g)
275g
