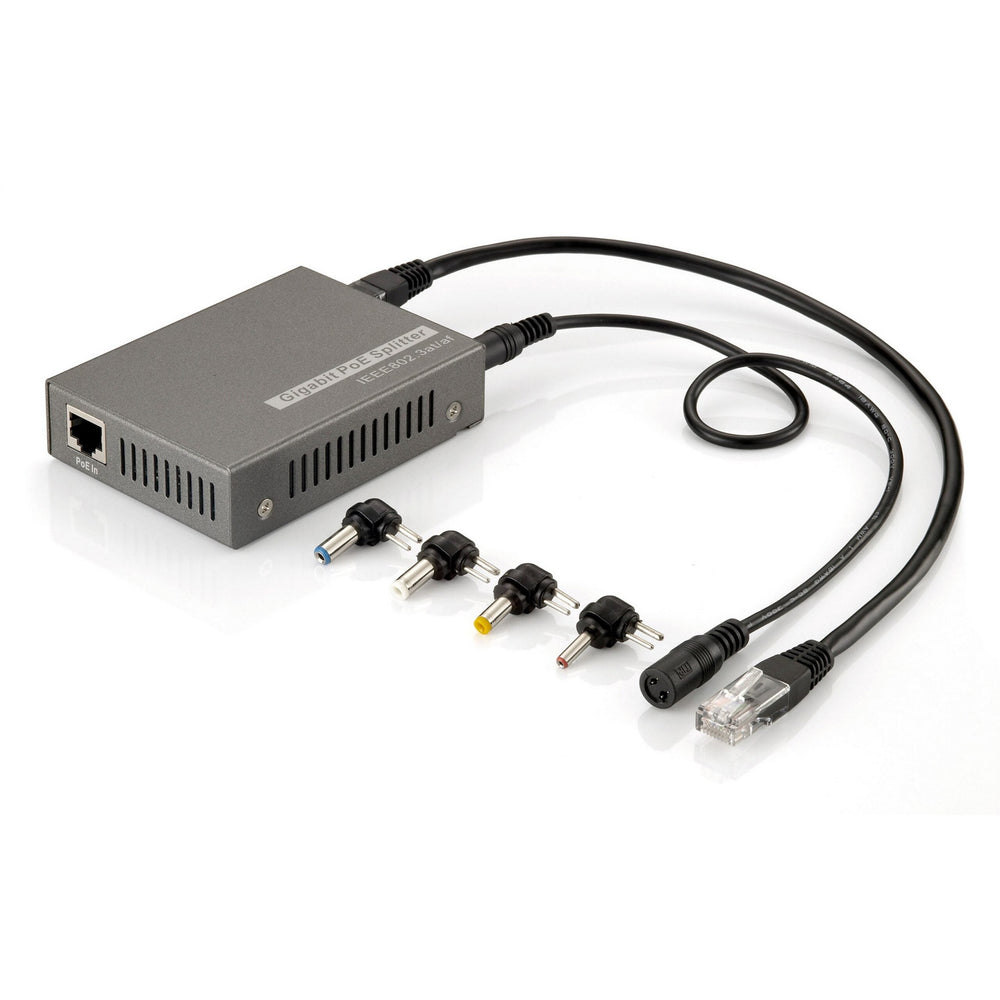

LevelOne POS-3000 Gigabit PoE Splitter, 802.3at/af PoE
LevelOne POS-3000 Gigabit PoE Splitter, 802.3at/af PoE
LevelOne POS-3000 Gigabit PoE Splitter, 802.3at/af PoE
The LevelOne POS-3000 Gigabit high-power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 9V or 12V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.
Key Features
- Compact splitter supports Gigabit speeds
- Automatically detects PoE terminals and supplies inline power
- Easily install non-PoE devices where a power outlet is not available
- Reduce installation and network equipment costs
- Safeguards network device with short circuit protection
- Adjustable DIP switch for 5V, 9V, or 12V output
- Intergrates Non-PoE devices with Power Over Ethernet support
- Auto-sensing power drawn from 802.3af / 802.3at power source equipment(PSE) devices
- Supplies power up to 25 watts
- Provides Interchangeable tips
Technical Specifications
Standards & Protocols
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
Pin Assignment and Polarity
1/2(+), 3/6 (-) or 4/5(+), 7/8(-)
Power Input
Output Power Voltage
24watts (12V), 18Watts (9V), 10watts (5V)
DC Pin
5.5*2.5*12 mm (White), 5.5*2.1*12 mm (Blue), 4.8*1.7*12 mm (Yellow), 3.5*1.3*12(Red)mm, (L-300mm)
Data Rate
10/100/1000Mbps
Operating Temperature (C)
Operating: 0C ~ 45C
Operating Humidity (Non-condensing)
Operating: 5% ~ 95%
Physical
Dimensions (W x D x H mm)
60 x 92 x 27 mm
Weight (g)
85 g
