MuxLab 500718 12G-SDI 4K 60 1X6 Splitter
MuxLab 500718 12G-SDI 4K 60 1X6 Splitter
Free Shipping
MuxLab 500718 12G-SDI 4K 60 1X6 Splitter

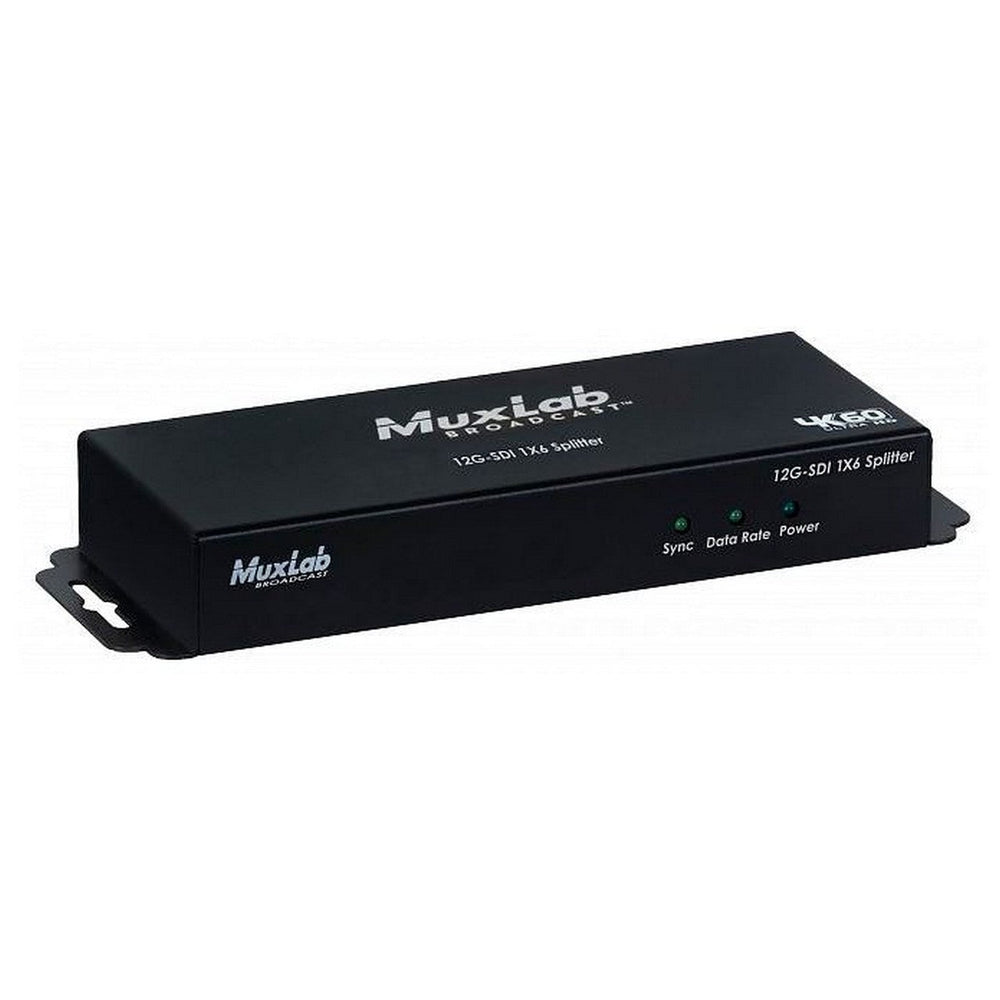

The 12G-SDI 1×6 Splitter, 4K/60 (500718) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to six (6) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HDSDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling. Applications: Video production, Post production, Broadcasting, Studio to Studio, Live event, Mobile video, Medical imaging display.
Key Features
- Distribute one 12G-SDI source to six displays
- Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
- Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
- LED diagnostic
- Connectors on rear for neater cabling
