Ocean Matrix 1x4 HDMI Extender & Splitter Set - 1080p60, Up to 120m Over Cat5e/6

Transform your HDMI distribution and extension capabilities with the Ocean Matrix 1x4 HDMI Extender & Splitter Set. This versatile device enables you to transmit high-definition video and audio from a single HDMI source to up to four remote displays. Perfect for commercial installations, home theaters, or any application where multiple HDMI outputs are required over long distances, this HDMI splitter and extender set ensures high-quality performance without compromise.

Designed to work over a standard Cat5e or Cat6 Ethernet cable, the Ocean Matrix HDMI Extender & Splitter supports resolutions up to 1080p60, providing clear, sharp video at distances of up to 120 meters (393 feet). The HDMI version 1.3 compatibility ensures broad support for various media formats, including HDCP 1.4, making it suitable for a wide range of applications, from simple video streaming to complex media setups.

The kit includes both a transmitter (TX) and receiver (RX) unit, allowing you to send HDMI signals to four separate devices, all while maintaining the signal integrity over long distances. This extender also supports IR (Infrared) control, allowing you to remotely operate your HDMI source or receiver from a distance. Whether you're using it for home entertainment, digital signage, or conference rooms, the Ocean Matrix 1x4 HDMI Extender & Splitter offers outstanding flexibility and convenience.

Key Features:

• Supports HDMI 1.3 and HDCP 1.4 for compatibility with a wide range of devices
• High-definition support up to 1080p at 60Hz for crystal-clear video quality
• Transmits HDMI signals up to 120 meters (393 feet) over a single Cat5e or Cat6 cable
• Enables 1 HDMI source to be distributed to 4 HDMI outputs simultaneously
• Built-in IR signal support (20-60kHz) for remote control functionality
• Compact and lightweight design, easy to install and integrate into your setup
• Reliable, stable performance with low power consumption

Technical Specifications:

Inputs: 1 x HDMI
Outputs: 4 x RJ45
HDMI Version: HDMI 1.3 Compatible with HDCP 1.4
Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz
Transmission Distance: 1080p 60Hz up to 120m (393ft) with full HD over a single Cat6 cable
IR Signal: Supports 20-60kHz IR device
Operating Temperature: 32°F - 140°F (0°C - 60°C)
Power Supply: TX: DC5V/2A, RX: DC5V/1A
Power Consumption: TX: < 10W, RX: 3W
Dimensions (LxWxH):
TX: 9.94" x 3.88" x 1"
RX: 3.81" x 3.71" x 0.94"
Weight:
TX: 1.3 lbs
RX: 0.31 lbs

What's Included

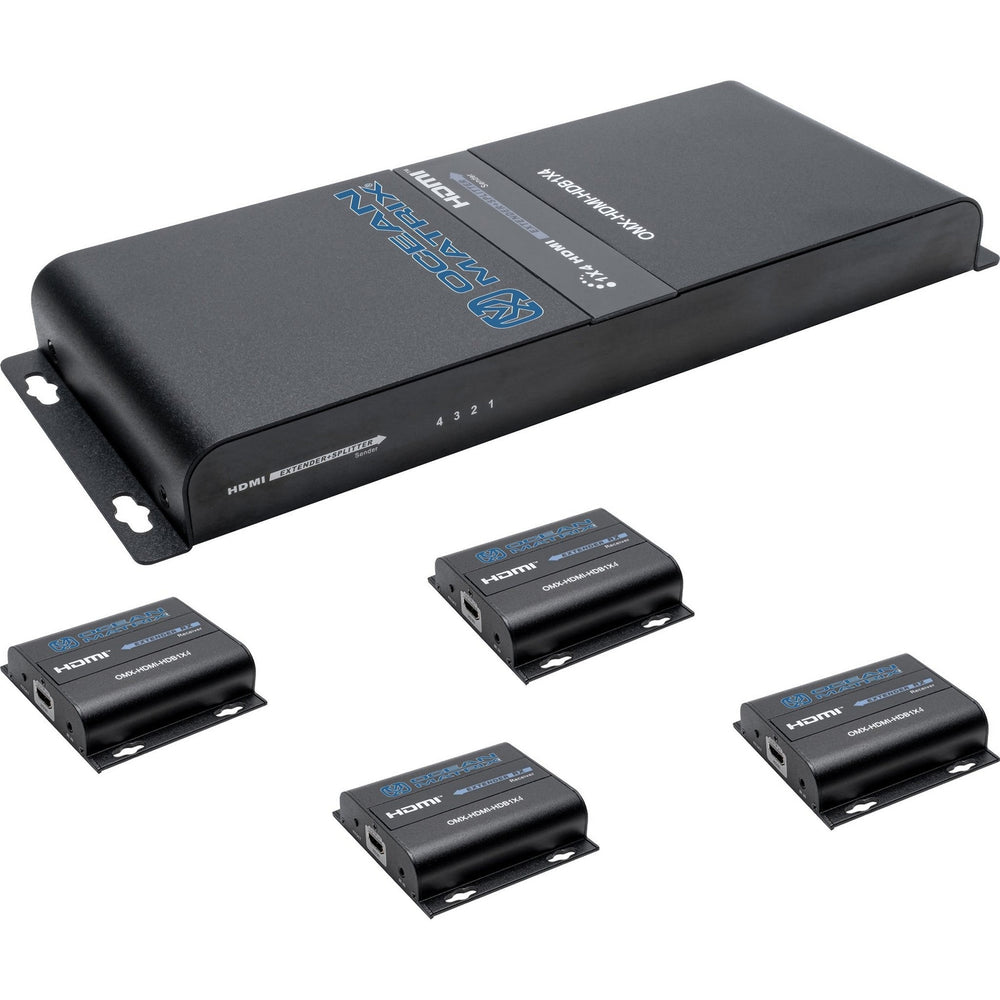

• 1 x OMX-HDMI-HDB1X4 Extender Set (1 x Extender, 4 x Receivers)
• 1 x DC5V/2A Adapter
• 4 x DC5V/1A Adapter
• 1 x IR Blaster Extension Cable
• 4 x IR Receiver Extension Cable
