Ocean Matrix 1x8 HDMI Extender and 1080p60 Splitter Set over CAT5/5e/6
Ocean Matrix 1x8 HDMI Extender and 1080p60 Splitter Set over CAT5/5e/6
Free Shipping

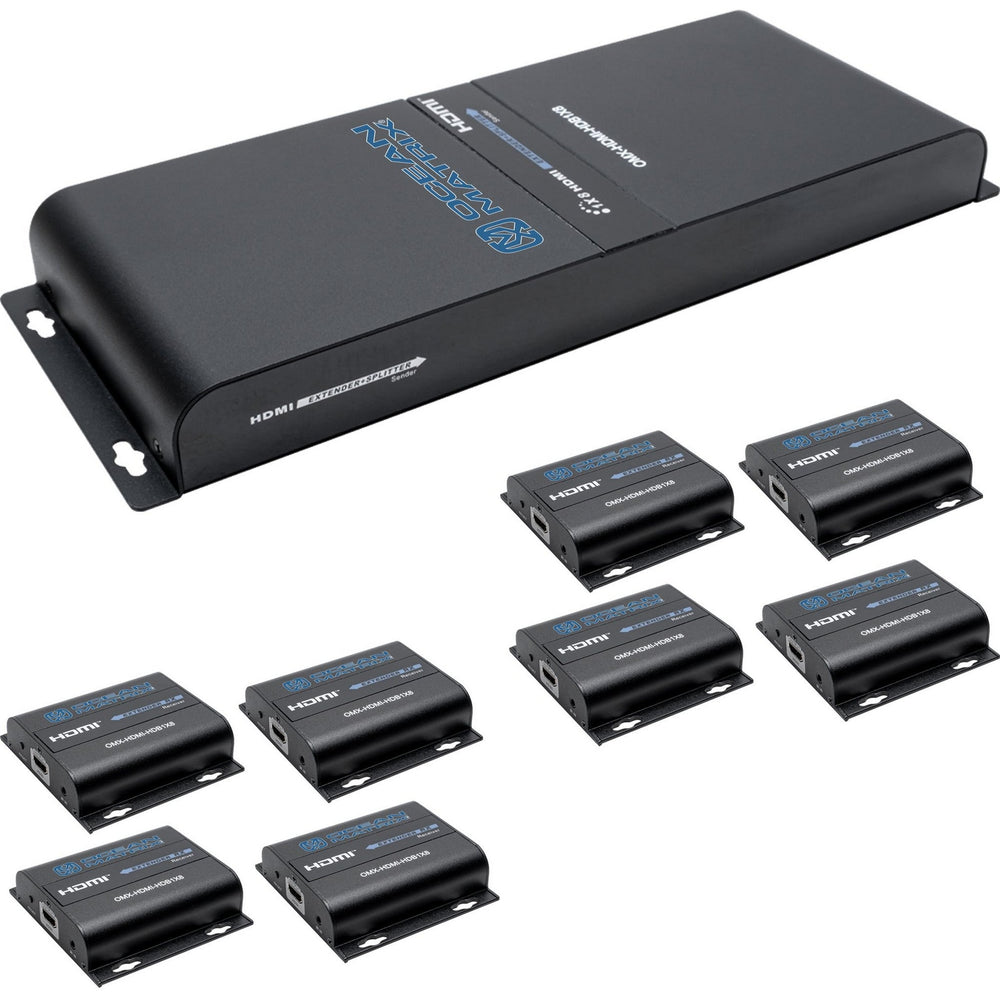

Ocean Matrix OMX-HDMI-HDB1X8 1x8 HDMI Extender & Splitter Set (1080p60) over Cat5/5e/6
The Ocean Matrix OMX-HDMI-HDB1X8 1x8 HDMI Extender & Splitter Set is a reliable and efficient solution designed to transmit HDMI signals over long distances while maintaining high-quality video and audio. This versatile extender/splitter system allows users to distribute a single HDMI signal to up to eight remote locations via standard Cat5/5e/6 cables. Whether you're running HDMI to multiple monitors, projectors, or displays in commercial environments, this unit ensures a seamless and stable signal over extended distances with full HD support.
With support for resolutions up to 1080p at 60Hz, the OMX-HDMI-HDB1X8 delivers crisp, high-definition video across extended distances. Thanks to its advanced signal transmission technology, it offers a maximum transmission distance of up to 394 feet (120 meters) using Cat6 cables, ensuring a consistent and reliable connection even in large or complex installations. Ideal for both professional AV setups and home entertainment systems, this extender/splitter system ensures optimal performance with minimal signal degradation.
Additionally, the OMX-HDMI-HDB1X8 supports IR control signals, allowing users to remotely control the source device from the display location, providing convenience in multi-location AV setups. The device is easy to install, with the transmitter (TX) and receiver (RX) units featuring user-friendly design and simple connection setup. Its compact size and robust build quality make it suitable for various environments, ensuring durability and long-lasting performance.
Key Features
- Distribute 1 HDMI input to 8 remote locations
- Supports resolutions up to 1080p at 60Hz
- Maximum transmission distance of 394 feet (120 meters) at 1080p 60Hz over Cat6 cable
- IR signal support (20-60kHz) for remote control of the source device
- HDMI version 1.3, compatible with HDCP 1.4
- Plug-and-play installation with no additional software required
- Compact and durable design for both commercial and residential use
- DC 12V power supply with low power consumption (<24W)
Technical Specifications
Inputs: 1 x HDMI
Outputs: 8 x RJ45
HDMI Version: HDMI 1.3, compatible with HDCP 1.4
Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz
Transmission Distance: 394 feet (120 meters) at 1080p 60Hz with full HD over a single CAT6 cable
IR Signal: Supports 20-60kHz IR devices
Operating Temperature: 32Ā°F - 140Ā°F (0Ā°C - 60Ā°C)
Power Supply: DC 12V/3A
Power Consumption: < 24W
Dimensions: TX: 11.75 x 4.33 x 1.17 inches (LxWxH)
Ā Ā Ā Ā Ā Ā RX: 3.70 x 3.80 x 0.93 inches (LxWxH)
Weight: TX: 1.75 lbs
Ā Ā Ā Ā Ā Ā RX: 0.30 lbs
What's Included
- 1 x OMX-HDMI-HDB1X8 Extender Set (1 x Extender, 8 x Receivers)
- 1 x DC12/3A Adapter
- 8 x DC5/1A Adapters
- 1 x IR Blaster Extension Cable
- 8 x IR Receiver Extension Cables
