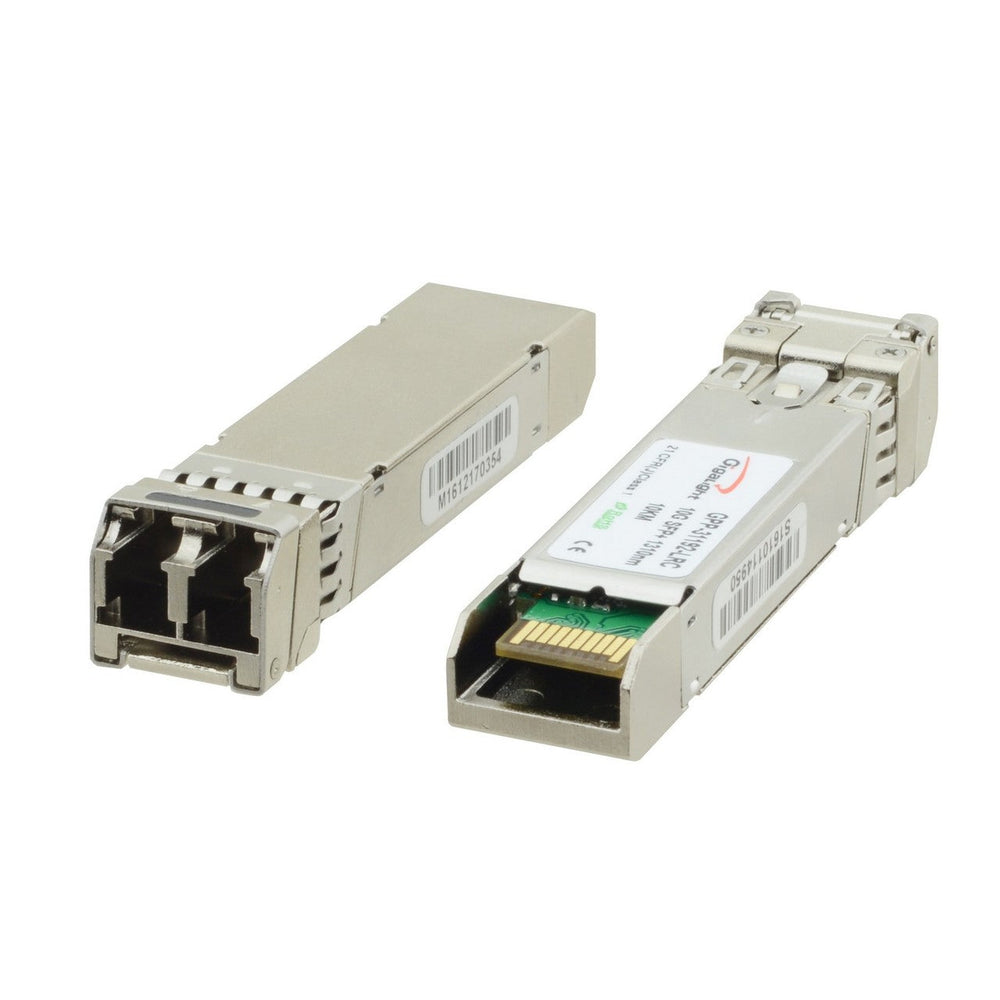

Kramer OSP-SM10 Optical SM 1310nm 10G SFP Transceiver
OSP-SM10 is a fiber optic transceiver for 1310nm single-mode signals. This standard pluggable SFP+ module has two LC connectors for reception and transmission signals over two strands of single-mode optical fiber.
Key Features
- Certified SFP+ optical module
- 2-strand LC-connected single-mode fiber
- Ultra-reach - Up to 33km (20.5 miles)
- 2 singlemode LC strands
- Data rate - 10.2Gbps
Technical Specifications
OPTICAL LINE
Single-mode G.652D compliant OFNR fiber
PORTS
2-strand fiber optic LC(PC/UPC) connector for reception and transmission SFP+ compliant pluggable interface
Note: Do not use with LC(APC) connectors
MAX. REACH
33Km (20.5 miles) reach over OS1 SM fiber
NOMINAL PEAK WAVELENGTH
1310nm
MAX. DATA RATE
10.2Gbps
TRANSMITTER TYPE
DFB
OPTICAL TYPICAL TRANSMISSION POWER
-2.5dBm
OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY
-14.4dBm
OPTICAL TYPICAL MAXIMUM LOSS BUDGET
11.9dB
STANDARDS COMPLIANCE
IEEE 802.3ae, SFF-8431
LASER SAFETY COMPLIANCE
Laser Class I
REGULATORY CERTIFICATIONS
FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950-2:2007, RoHS6, EMC EN 55022 and EN 55024
POWER CONSUMPTION
1W
OPERATING TEMPERATURE
0° to 70°C
STORAGE TEMPERATURE
-40° to 85°C
HUMIDITY
5% to 95% RH
