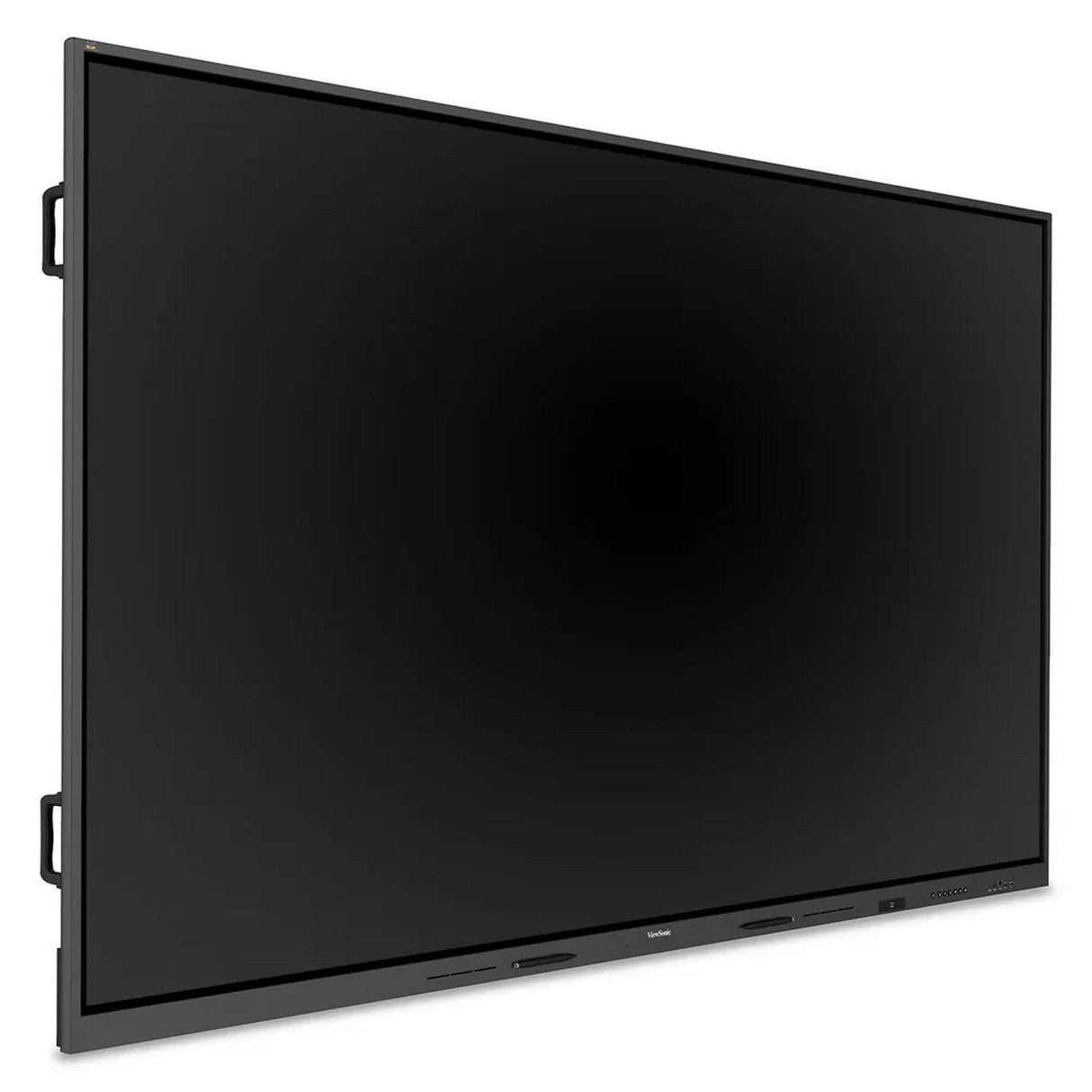

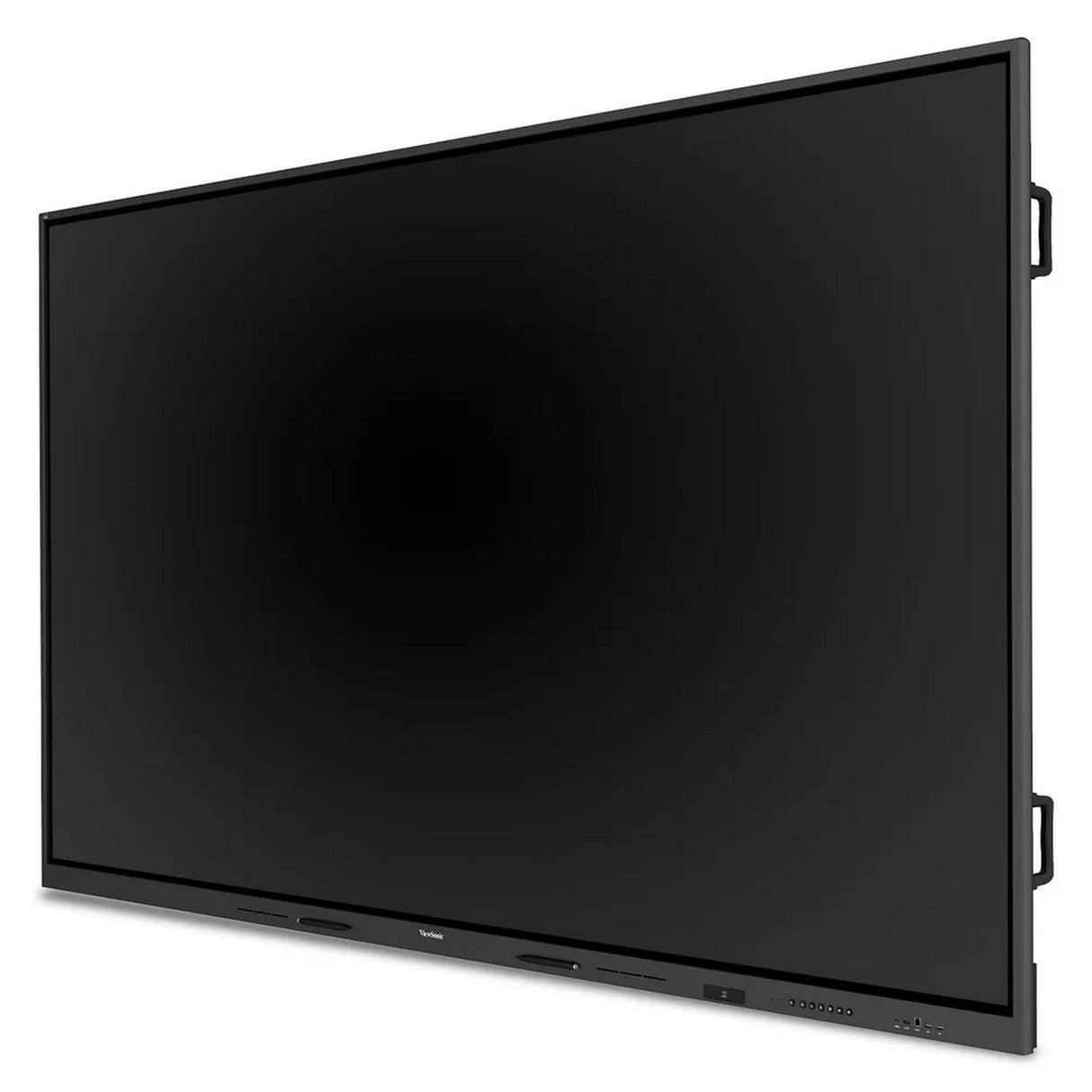

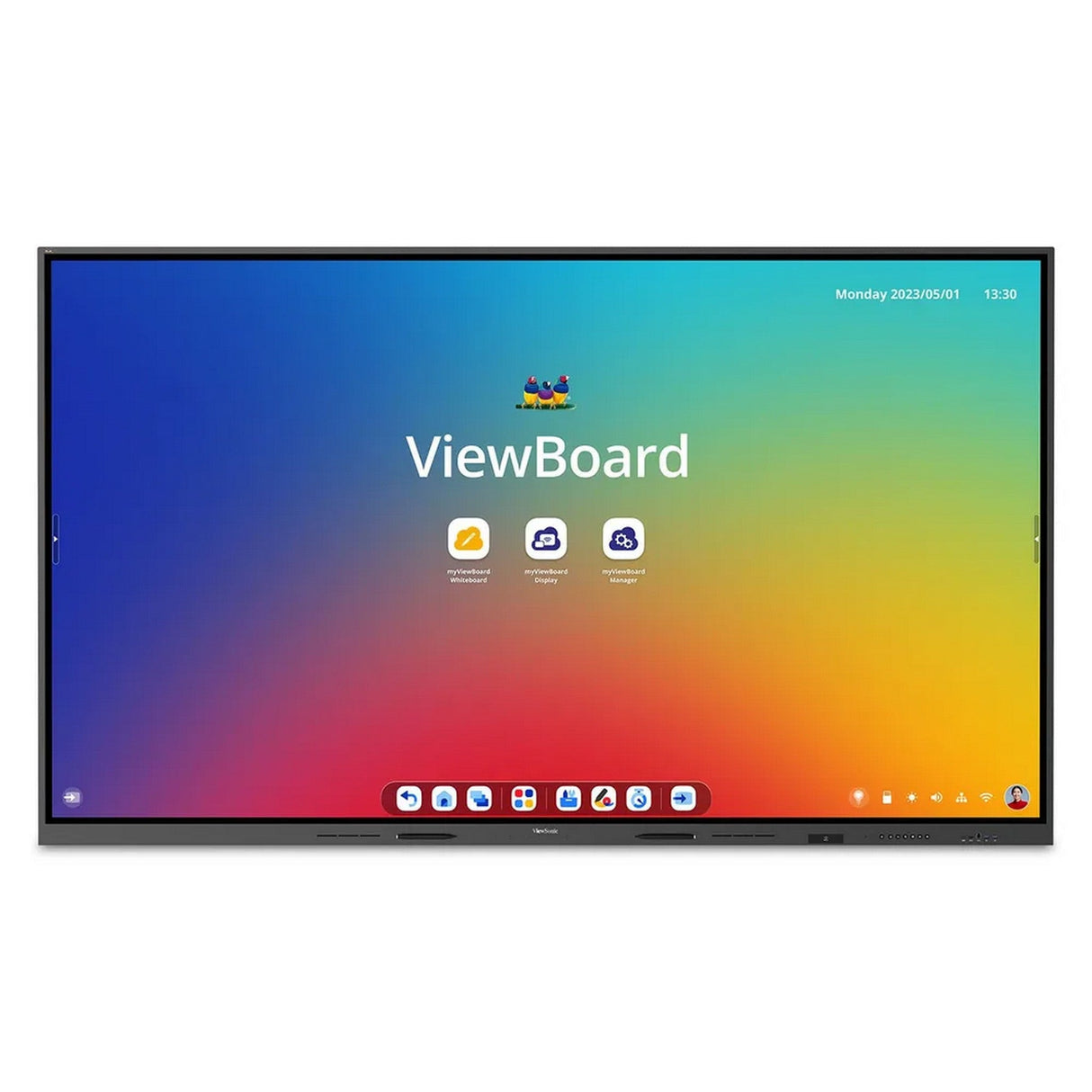

ViewSonic IFP110 Interactive Flat Panel Display

The ViewSonic IFP110 is a 110-inch 4K interactive display designed to provide an immersive, high-performance experience in collaborative environments, including classrooms, conference rooms, and more. Boasting a vivid 3840 x 2160 resolution with anti-glare 9H tempered glass, this display ensures crystal-clear visuals while resisting scratches, making it ideal for high-use areas. With an impressive refresh rate of 60Hz and a viewing angle of 178º horizontal and vertical, content is viewable from virtually any angle, ensuring all participants have a clear and engaging view.

Designed with powerful performance and connectivity, the IFP110 features a ViewBoard OS for an intuitive, user-friendly interface, and advanced multitouch technology with 40 touchpoints on Windows and 20 touchpoints on Android. Its ultra-responsive touch latency of ≤8ms and dual-tip detection (2.5mm and 8mm) provide a natural and precise writing experience. Equipped with an Octa-Core CPU and Mali-G52 GPU, the IFP110 can handle multitasking with ease, while the 128GB storage capacity and 8GB of LPDDR memory support seamless operation.

This interactive display is built for flexibility, with versatile connectivity options including multiple HDMI inputs, USB ports, Ethernet, and an Intel OPS slot. A beamforming microphone array with full-duplex echo cancellation ensures clear audio capture, while built-in 15W speakers and a 20W subwoofer deliver robust sound. Whether used for remote learning, business presentations, or interactive media, the ViewSonic IFP110 enhances productivity and collaboration with its large display, vibrant visuals, and comprehensive connectivity options.

Key Features

• 110-inch 4K UHD (3840 x 2160) resolution with anti-glare 9H tempered glass for a durable, clear viewing experience
• Ultra-responsive touch technology supporting up to 40 touch points on Windows and 20 on Android
• Powerful Octa-Core CPU and Mali-G52 GPU with 8GB LPDDR memory and 128GB eMMC storage
• Multiple connectivity options including HDMI 2.0 and 2.1, USB-C, RS232, Ethernet LAN, and Intel OPS slot
• Beamforming microphone array and robust 20W subwoofer for enhanced audio output

Technical Specifications

OS: ViewBoard OS
GPU: Mali-G52
CPU: Octa-Core CPU (A73*4 + A53*4)
Memory: 8GB LPDDR
Storage: 128GB eMMC
Media Player Type: Yes
Microphone: Beamforming array x 8, full duplex echo cancellation
Subwoofer: 20W (x1)
Internal Speakers: 15W (x2)
HDMI 2.0 In: 2
HDMI 2.1 In: 1
HDMI Out: 1
DisplayPort: 1
SPDIF: 1
USB 3.0: 5
USB 2.0: 1
USB 2.0 Type B: 3
USB Type C: 3
RS232: 1
Ethernet LAN (RJ45): 2
Intel® OPS Slot In (80-pin): 1
Line In: 1
Mic-In: 1
Voltage: 100-240 VAC
Consumption (typical): 175.46W
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-80%
Altitude: 0 - 3000m above sea level
Tip Detection: Dual tips: 2.5mm and 8mm
OS Support: Windows 7/8/10/11, MacOS 10.8 or later, Linux kernel 3.5 or later
Latency: ≤8ms
Touch Points: Windows: 40, Android: 20
Touch Technology: Infrared
Net (lbs): 285.5
Gross (lbs): 358.25
Net (kg): 129.5
Gross (kg): 162.5
Packaging (in.): 105.71 x 64.17 x 12.20
Physical (in.): 98.70 x 58.06 x 3.81
Packaging (mm): 2685 x 1630 x 310
Physical (mm): 2507.1 x 1474.8 x 96.8
Screw Size: M8
VESA Compatible: 1000x800
Warranty: 3-year limited warranty on parts, labor, and backlight, onsite warranty
Recycle/Disposal: Please dispose of in accordance with local, state, or federal laws.
Package Contents: IFP110, 3m Power Cord, 1.8m USB-C Cable, Remote control with AAA battery, 3m USB Touch Cable, Stylus x 2, QSG + Compliance statement, RS232 adapter, Clamp x 5, Camera Plate, Screw x 8 (camera 2+2, wall mount 4), 3m HDMI cable, VB-WIFI-005 WiFi Adapter
Regulations: CTUVus, FCC, Energy 8.0, EPEAT, CEC
Ethernet LAN: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Wi-Fi: VB-WIFI-005 WiFi Adapter
Bluetooth: Bluetooth 5.2
Screen Size: 110 inches
Orientation: Landscape
Backlight Life: 30,000 hours
Viewing Angles: 178º horizontal, 178º vertical
Display Resolution: 3840 x 2160
Response Time (Typical GTG): 8ms
Aspect Ratio: 16:9
Dynamic Contrast Ratio: 5,000:1
Panel Surface: Anti-glare 9H tempered glass
Light Source: DLED
Brightness: 400 cd/m²
Static Contrast Ratio: 1,200:1
Refresh Rate: 60Hz
