VigilLink VLEX-HT3100U0-TR 4K HDMI Extender with HDBaseT

The VigilLink VLEX-HT3100U0-TR is a high-performance HDMI extender designed to transmit **4K@60Hz video signals** over a single CAT6A/7 cable up to **328 feet (100m)** while maintaining full HDR support, including HDR10, HDR10+, Dolby Vision, and HLG. With **18Gbps bandwidth**, it delivers stunning **4K UHD resolution** with **8/10/12-bit color depth** and supports a wide range of color spaces, including RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0.

This HDMI extender features bi-directional IR control, RS-232 pass-through, and USB 2.0 extension, making it perfect for applications that require KVM functionality or interactive control. The long-reach mode extends **1080p signals up to 492 feet (150m)**, providing ultimate flexibility for professional AV setups in conference rooms, classrooms, or digital signage applications.

The VLEX-HT3100U0-TR is built with a durable metal enclosure for enhanced heat dissipation and reliability. Its plug-and-play design ensures easy installation without the need for additional drivers. The Power over Cable (PoC) feature allows power to be sent over the same Ethernet cable, reducing the need for additional power adapters. With LPCM, Dolby Digital, DTS, and DSD audio format support, this HDMI extender ensures high-quality audio transmission for immersive sound experiences.

Key Features

• Extends **4K@60Hz** HDMI signals up to **328ft (100m)** over a single CAT6A/7 cable
• Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG for superior image quality
• Compatible with RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0 color spaces
• USB 2.0 extension for KVM applications
• Bi-directional IR control and RS-232 pass-through
• Supports a wide range of audio formats, including Dolby TrueHD and DTS-HD Master Audio
• Long-reach mode extends **1080p signals up to 492ft (150m)**
• Power over Cable (PoC) feature for simplified installation
• Constructed with a durable metal enclosure for enhanced reliability

Technical Specifications

HDMI Compliance: HDCP 2.2
USB Compliance: USB 2.0
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@60Hz
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8/10/12-bit
Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
IR Level: 12Vp-p
Transmission Distance:
HDBT Standard Mode: **4K60 / 328ft (100m), 1080p / 328ft (100m)** (CAT6A/7 cable)
HDBT Long Reach Mode: **1080p / 492ft (150m)** (CAT6/6A/7 cable)

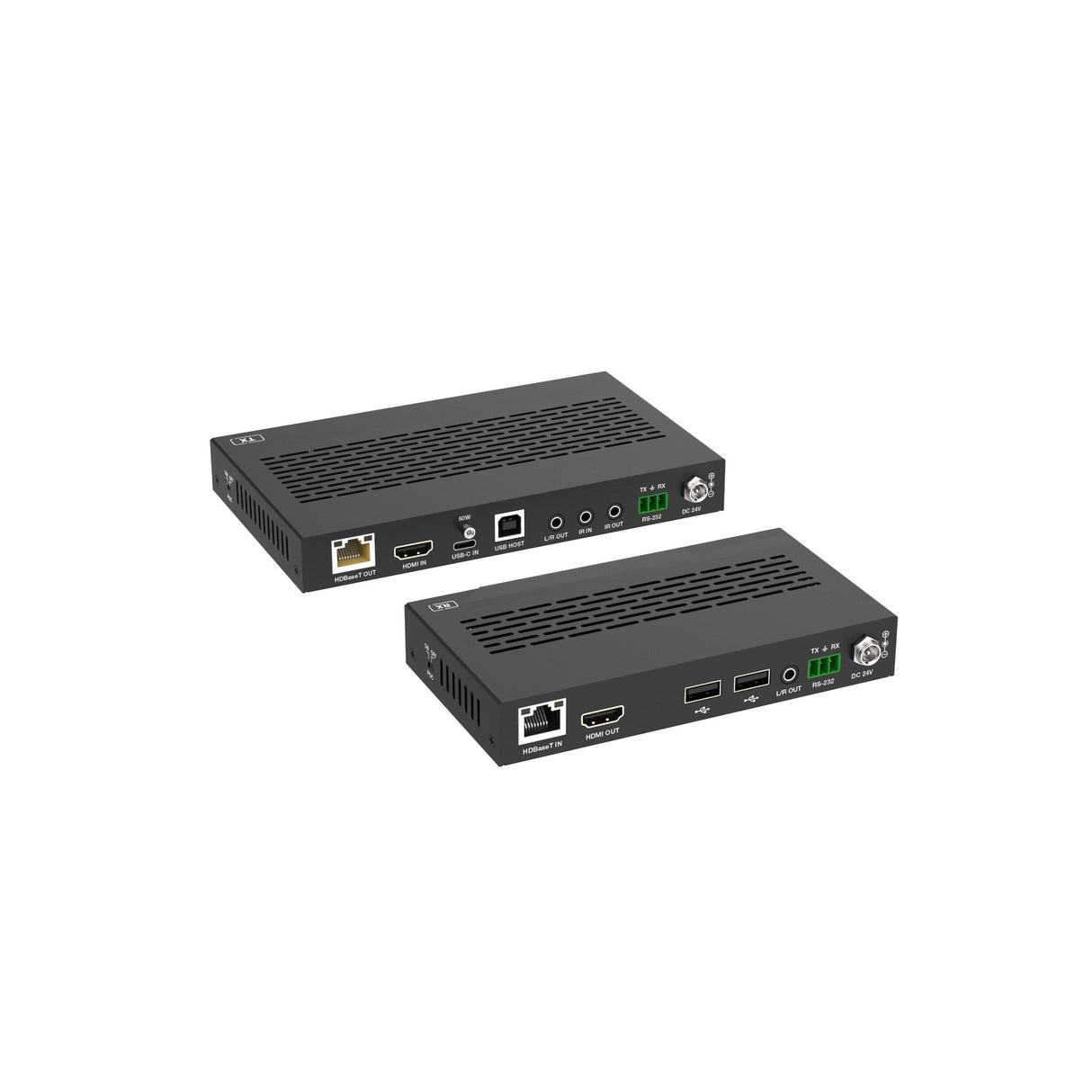

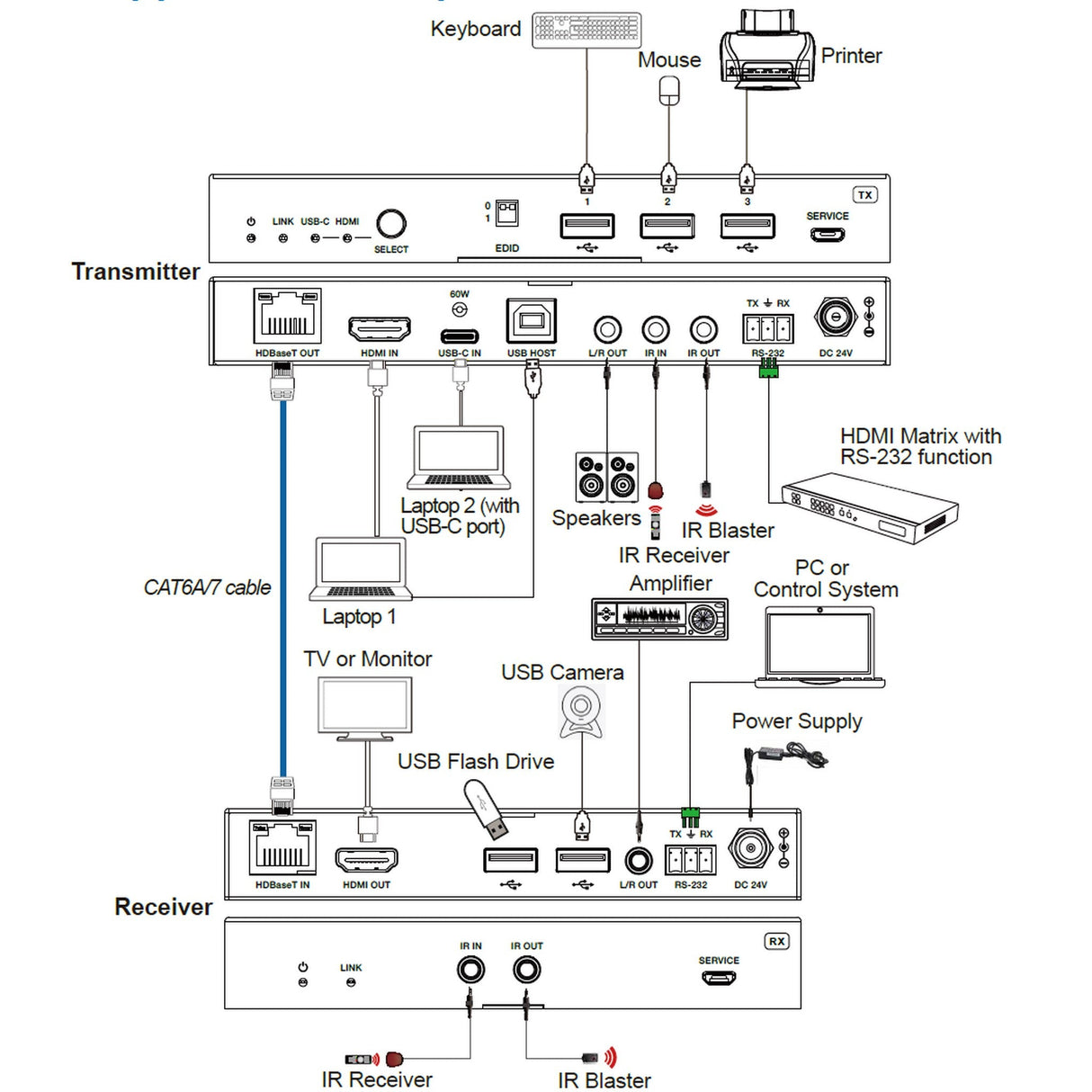

Connection

Transmitter:
Inputs: 1 × HDMI IN [Type A, 19-pin female]
Outputs: 1 × HDBaseT OUT [RJ45 connector], 1 × L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × IR OUT [3.5mm Stereo Mini-jack], 1 × RS-232 [3pin-3.81mm Phoenix jack], 1 × SERVICE [Micro USB, 5-pin female], 1 × USB HOST [USB Type B], 2 × USB DEVICES [USB Type A]

Receiver:
Inputs: 1 × HDBaseT IN [RJ45, 8-pin female]
Outputs: 1 × HDMI OUT [Type A, 19-pin female], 1 × L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × IR OUT [3.5mm Stereo Mini-jack], 1 × RS-232 [3pin-3.81mm Phoenix jack], 1 × SERVICE [Micro USB, 5-pin female], 2 × USB DEVICES [USB Type A]

Mechanical

Housing: Metal Enclosure
Color: Black
Dimensions: Transmitter / Receiver: **5.67" (W) x 3.07" (D) x 0.91" (H)**
Weight: Transmitter: **11.4 oz (323g)**, Receiver: **11.3 oz (319g)**

Power & Environmental

Power Supply: Input: AC100~240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption: **14.28W (POC)**
Operating Temperature: **32 - 104°F (0 - 40°C)**
Storage Temperature: **-4 - 140°F (-20 - 60°C)**
Relative Humidity: **20 - 90% RH (non-condensing)**
