VigilLink Audio Embedder HDMI 2.0, 18Gbps
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
VLHA-EMR HDMI Extender - High-Quality 4K Signal Transmission
The VLHA-EMR HDMI Extender is engineered to deliver superior video and audio quality over long distances, making it an essential tool for any home theater, professional AV setup, or commercial installation. This versatile device supports resolutions up to 4K at 60Hz and offers a range of audio formats, including Dolby Atmos and DTS:X. With 18Gbps of video bandwidth, it ensures high-quality, uncompressed signal transfer, even over extended lengths, and supports a variety of color depths and spaces, including 10-bit and 12-bit color depth and YCbCr 4:4:4.
Not only does the VLHA-EMR offer exceptional video quality, but it also supports a range of audio formats, including PCM, Dolby TrueHD, and DTS-HD Master Audio, ensuring a complete, immersive experience. The extender includes robust ESD protection to prevent damage from electrostatic discharge, making it durable and reliable in demanding environments. With its compact design and metal enclosure, the VLHA-EMR is easy to install and integrates seamlessly into existing AV systems.
Whether you're using it in a commercial setting or for home entertainment, the VLHA-EMR ensures long-distance transmission with no latency, making it perfect for both video and audio without compromising on quality. It's a practical, cost-effective solution for anyone needing to extend HDMI signals with minimal effort and maximum performance.
Key Features
- Supports up to 4K@60Hz, 4K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz video resolutions
- Compatible with multiple audio formats, including Dolby Atmos, DTS:X, and Dolby TrueHD
- 18Gbps video bandwidth for high-quality, uncompressed transmission
- Compact design with a durable metal enclosure
- ESD protection to ensure longevity and reliability
Technical Specifications
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 and HDCP 1.4
Video Bandwidth: 18Gbps
Video Resolution: up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz
Color Depth: 10-bit, 12-bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats: Analog Stereo 2CH
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection

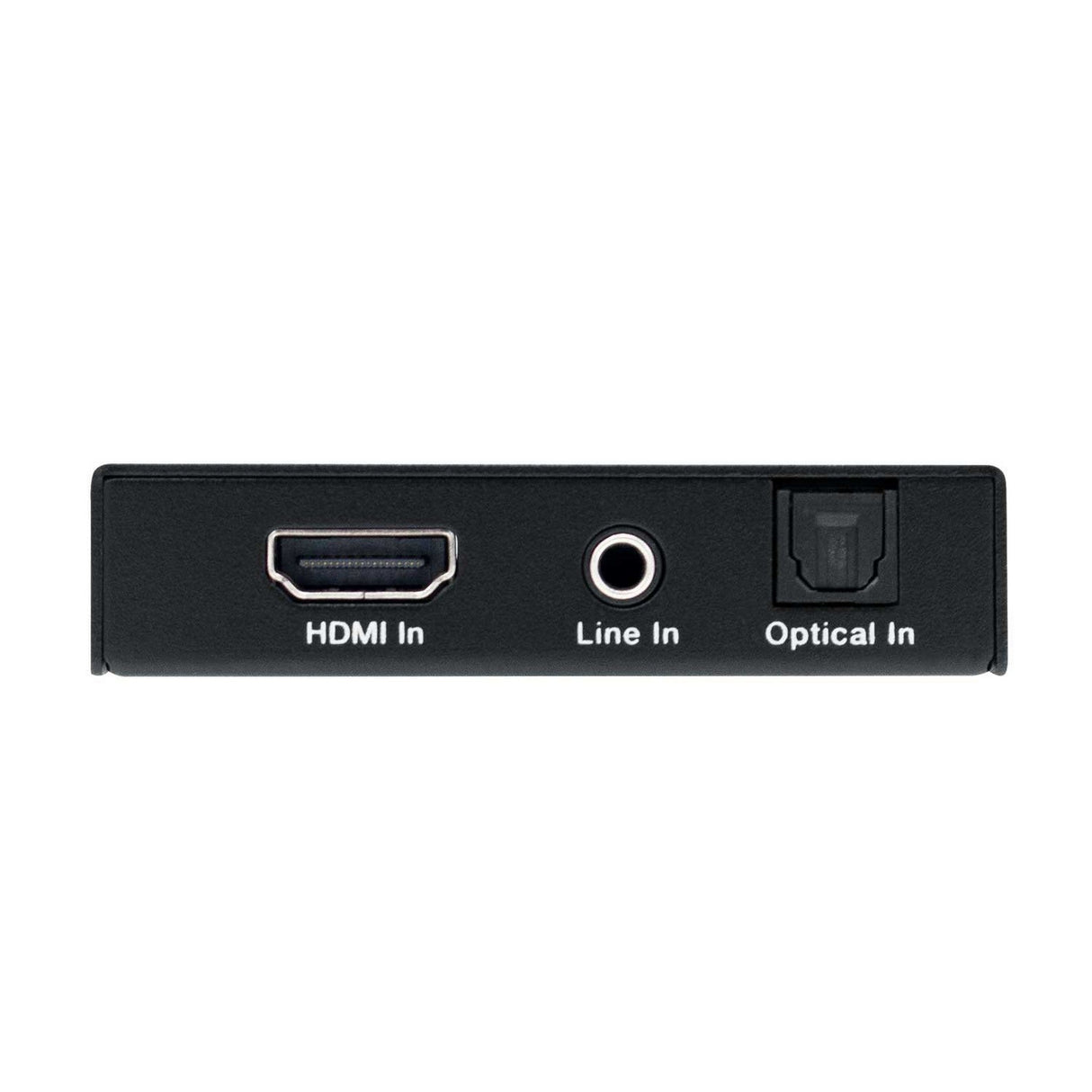

Inputs: 1x HDMI Type A [19-pin female], 1x Line In [3.5mm Stereo Mini-jack], 1x Optical In [S/PDIF]

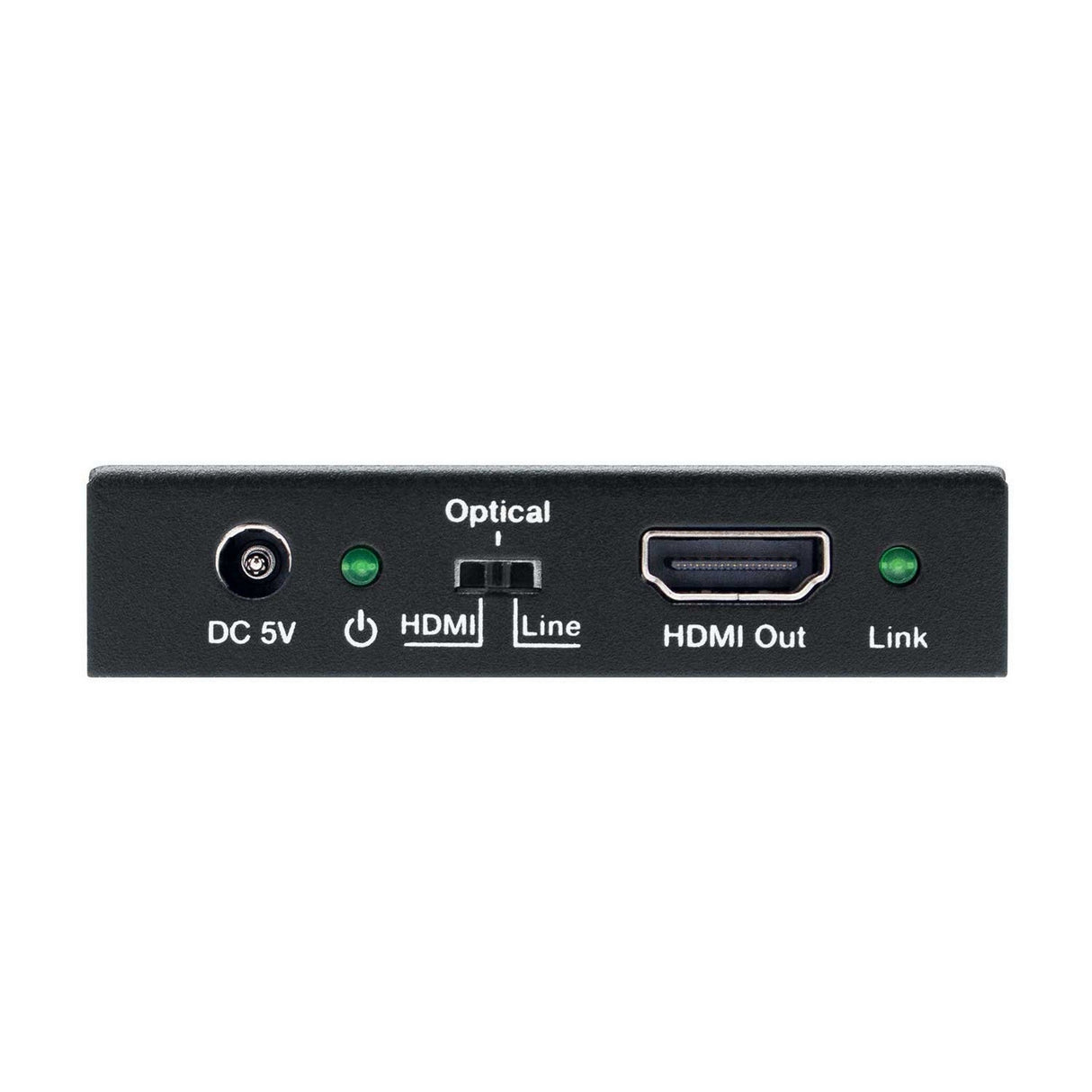

Outputs: 1x HDMI Type A [19-pin female]
Mechanical
Housing: Metal Enclosure
Color: Black
Dimensions: 2.9" [W] x 2.4" [D] x 0.7" [H]
Weight: 0.27 lbs
Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption: 1.25W
Operating Temperature: 32°F ~ 104°F
Storage Temperature: -4°F ~ 140°F
Relative Humidity: 20 - 90% RH (No condensation)
What's Included
- VLHA-EMR HDMI Extender
- Power Adapter
- User Manual
