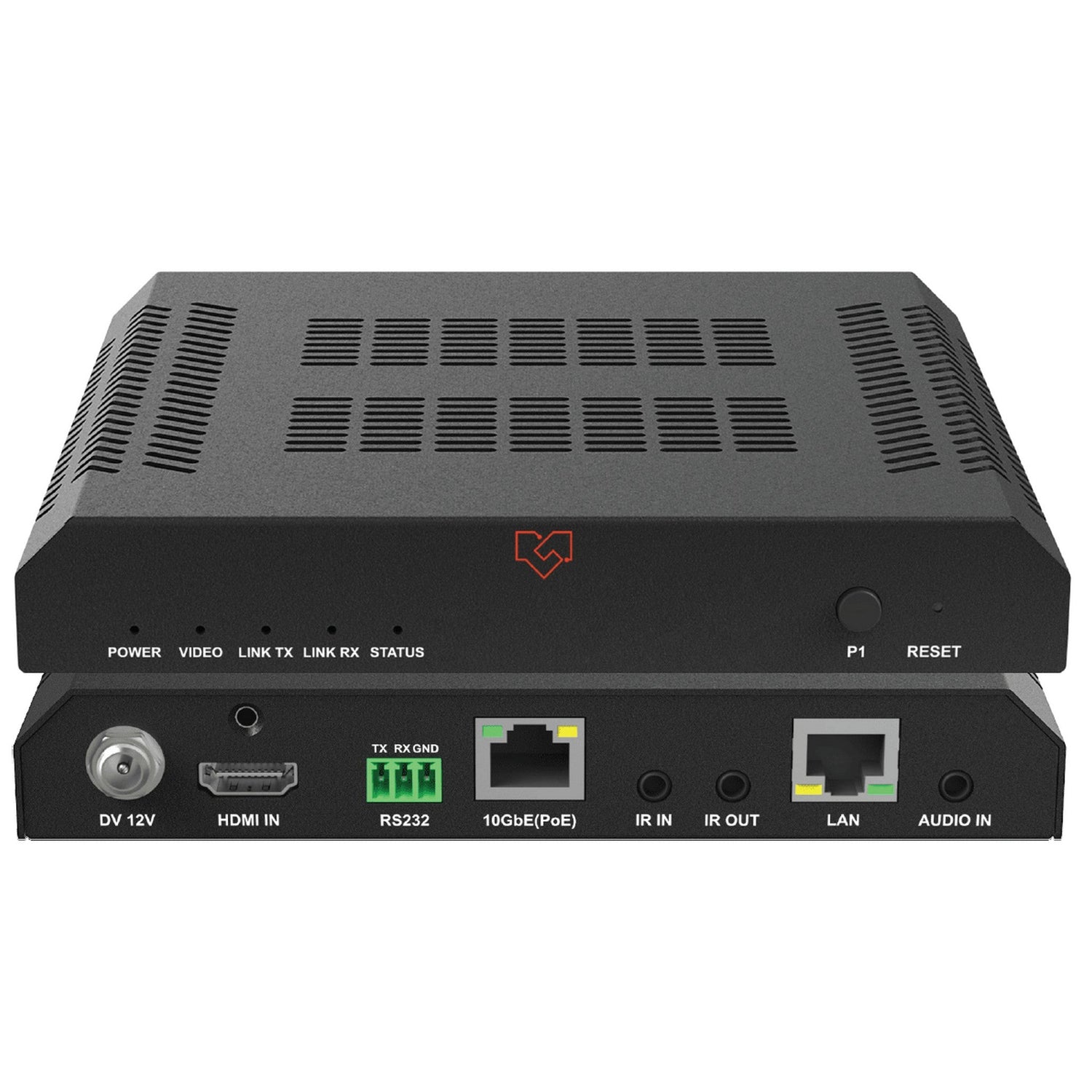

VigilLink SDVoE 10G HDMI 2.0 AV Over IP Transmitter with IR and RS-232
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Vigillink SDVoE 10G HDMI 2.0 AV over IP Transmitter with IR and RS-232
The Vigillink VLIP-SDCP-TX is an advanced video and audio transport system, designed to deliver exceptional quality in both audio and video streaming over Ethernet networks. With a wide range of supported resolutions, including 4K and 1080p, it is an ideal solution for professional environments such as broadcasting, AV installations, and video production studios. This compact and robust system supports both high-definition video and multi-channel audio formats, including Dolby True HD and DTS-HD Master Audio, ensuring a premium experience for both video and audio enthusiasts.
Equipped with 1 x HDMI 2.0 input and 1 x unbalanced stereo audio input, the VLIP-SDCP-TX supports an extensive list of video resolutions and audio formats. From standard 480i to 4K, this transport system delivers crystal-clear visuals with seamless audio synchronization. The unit also includes output connectors for Ethernet (10GBase-T), providing high-speed data transmission over long distances, making it ideal for large-scale video streaming applications.
With a temperature range of -4Ā°F to 158Ā°F for storage and 32Ā°F to 104Ā°F during operation, this system is built to handle demanding environments. Its robust design ensures durability, even in harsh conditions. The VLIP-SDCP-TX's Ethernet control via a PC configurator provides a simple and effective way to configure and monitor the system, ensuring compatibility with the latest software and upgrades.
Key Features
- Supports video resolutions up to 4K (4096x2160) at multiple frame rates
- Audio support for LPCM, Dolby True HD, DTS-HD Master, and more
- Unbalanced stereo audio input with Ethernet (10GBase-T) output
- Ethernet and RS232 control for configuration and upgrades
- Compact and durable design with a wide operating temperature range
Technical Specifications
Video Input Connectors: 1 x HDMI 2.0
Audio Input Connectors: 1 x Unbalanced stereo audio
Supported Video Resolutions (Input):
640x480 (480i59, 480p59), 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1440x1050, 1600x1200, 720x480 (480i59, 480p59), 720x576 (576i50, 576p50), 1280x720 (720p50, 720p59, 720p60), 1920x1080 (1080i50, 1080i59, 1080i60, 1080p23, 1080p24, 1080p25, 1080p29, 1080p30, 1080p50, 1080p59, 1080p60), 3840x2160 (2160p23, 2160p24, 2160p25, 2160p29, 2160p30, 2160p60), 4096x2160
Supported Audio Formats (Input):
LPCM, 2.0/5.1/7.1 channels, 44.1/48/96/192 kHz, Dolby True HD (up to 7.1, 192kHz), DTS-HD Master (up to 7.1, 192kHz), Dolby Digital AC-3 (DVD format), DTS version 1 (DVD format)
Ethernet Output Connectors: 1 x 10GBase-T
Supported Video Resolutions (Output): Same as video input resolutions listed above
Supported Audio Formats (Output): Same as audio input formats listed above
Control: Ethernet (PC Configurator for configuring, controlling, and upgrading), RS232 (PC Configurator for testing and upgrading)
Operating Temperature: 32Ā°F to 104Ā°F (0Ā°C to +40Ā°C), 10% to 90%, non-condensing
Storage Temperature: -4Ā°F to 158Ā°F (-20Ā°C to +70Ā°C), 10% to 90%, non-condensing
Humidity: 10% to 90%, non-condensing
Product Weight: To be measured
Power Supply: 5V 2A DC
Transport Distance: 328 feet (100m)
Product Dimensions: 5.72" x 6.30" x 0.98" (L x W x H)
ESD Protection: Human-body Model: Ā±8kV (Air-gap discharge), Ā±4kV (Contact discharge)
Whatās Included
- Vigillink VLIP-SDCP-TX Transport System
- Power Supply (5V 2A DC)
- Quick Start Guide
