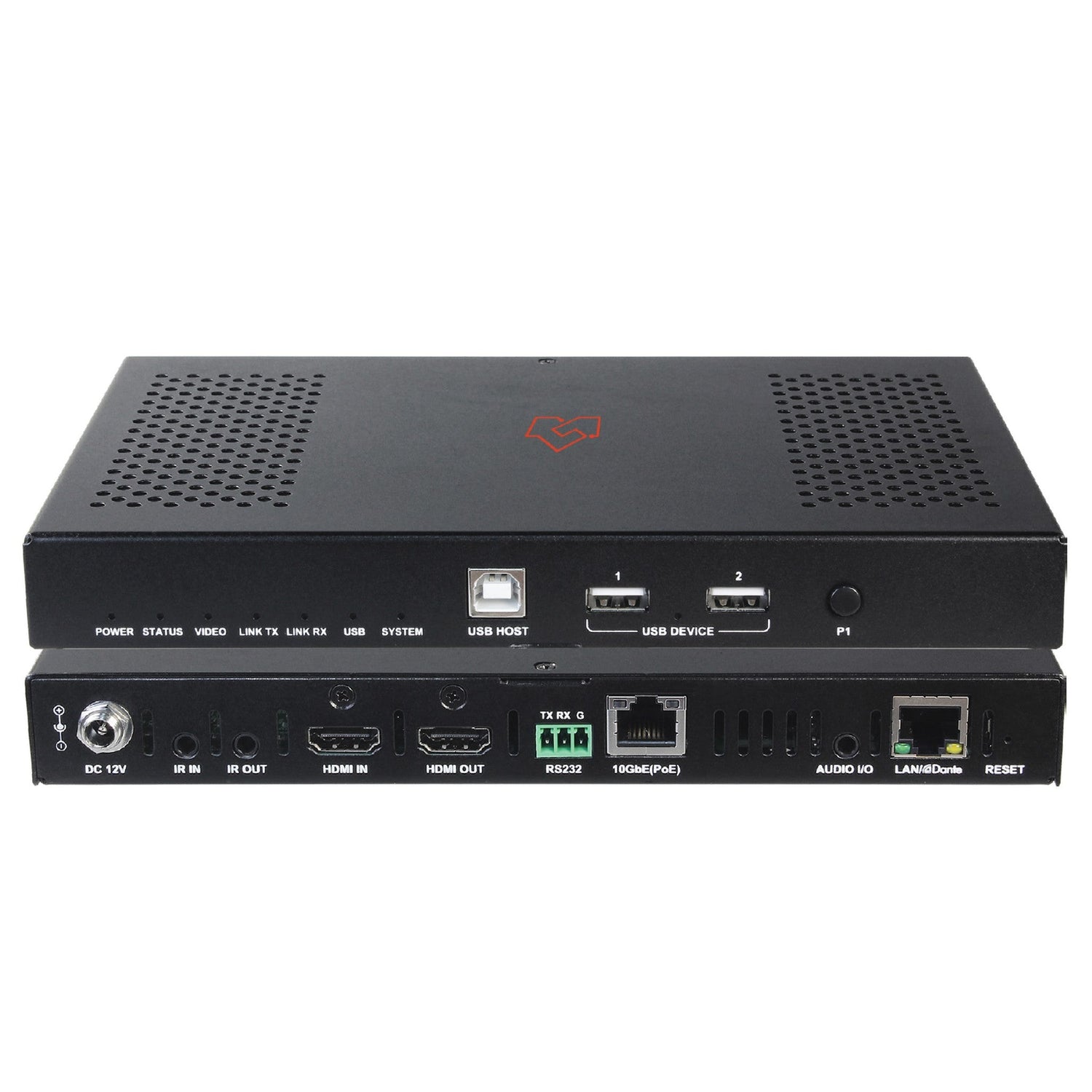

SDVoE Long Range Transceiver over Fiber with Uncompressed HDMI 2.0 transmission up to 300/500M

The VLIP-SDFR35-TRX Video and Audio Control System offers cutting-edge connectivity for professional AV applications. With versatile input and output options including HDMI, unbalanced stereo audio, and 10G Ethernet, this unit is designed to meet the demands of modern AV setups. It supports high-definition video resolutions up to 4096x2160 (4K) and audio formats like LPCM, Dolby True HD, and DTS-HD Master Audio, ensuring high-quality transmission for both video and sound across your network. Whether you’re deploying it in a live event, broadcast, or corporate environment, this control system delivers the flexibility and performance you need.

The VLIP-SDFR35-TRX is engineered for seamless integration into any AV setup. It offers reliable video and audio input and output capabilities, with support for Ethernet-based 10G connections, ensuring optimal performance for high-bandwidth video and audio transmissions. This system is built to perform in a range of environments, from controlled studios to outdoor event spaces, and it’s designed to handle both the heat and the cold, with an operating temperature range from 32°F to 104°F. The system is compact and easy to install, yet robust enough to meet the rigors of professional use.

With comprehensive video resolution support and audio formats ranging from basic stereo to multichannel 7.1 surround sound, the VLIP-SDFR35-TRX offers exceptional versatility. It also supports Dante audio over GbE, providing additional network-based control and flexibility. Designed with future-proofing in mind, the device offers firmware upgrades through Ethernet and RS232 control, ensuring your system stays current as new features and improvements become available.

Key Features

• Supports HDMI 2.0, unbalanced stereo audio, and 10G Ethernet input and output
• High-definition video resolutions up to 4K (4096x2160) at up to 60Hz
• Multichannel audio support including LPCM, Dolby True HD, DTS-HD Master Audio
• Ethernet and RS232 control for easy configuration and upgrades
• Compact and rugged design for reliable operation in various environments
• Supports Dante audio for network-based audio distribution

Technical Specifications

Video Input Connectors:
1 x HDMI 2.0
1 x Unbalanced Stereo Audio
1 x 10GBase-T/1 x 10GBase-SR

Supported Video Input:
HDMI in/Ethernet (10GBase-T, 10GBase-SR)

Supported Video Resolutions:
640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1440x1050, 1600x1200, 720x480 (480i59, 480p59), 720x576 (576i50, 576p50), 1280x720 (720p50, 720p59, 720p60), 1920x1080 (1080i50, 1080i59, 1080i60, 1080p23, 1080p24, 1080p25, 1080p29, 1080p30, 1080p50, 1080p59, 1080p60), 3840x2160 (2160p23, 2160p24, 2160p25, 2160p29, 2160p30, 2160p60), 4096x2160 (4096p23, 4096p24)

Supported Audio Formats:
LPCM (2.0/5.1/7.1 channel), Dolby True HD (up to 7.1, 192 kHz), DTS-HD Master (up to 7.1, 192 kHz), Dolby Digital AC-3 (DVD format), DTS version 1 (DVD format)

Audio Output:
1 x HDMI 2.0, 1 x Unbalanced Stereo Audio, 1 x 10GBase-T/1 x 10GBase-SR, 1 x Dante, GbE

Network Connectivity:
10GBase-T/10GBase-SR, supports SDVoE video streams (4K at 60Hz RGB/4:4:4 up to 9Gbps)

Control:
Ethernet: PC Configurator for configuration, control, and software upgrades
RS232: PC Configurator for testing and upgrading

Operating Temperature: 32°F to 104°F (0°C to +40°C), 10% to 90%, non-condensing
Storage Temperature: -4°F to 158°F (-20°C to +70°C), 10% to 90%, non-condensing
Humidity: 10% to 90%, non-condensing

Product Weight: To be measured
Power Supply: 12V DC converter (with lock) with US pin
Transport Distance: 984.3' (300m)
Product Dimensions: 5.51" x 8.46" x 0.98" (L x W x H)
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

What's Included

• VLIP-SDFR35-TRX Unit
• 12V DC Power Adapter with Lock
• Quick Start Guide
