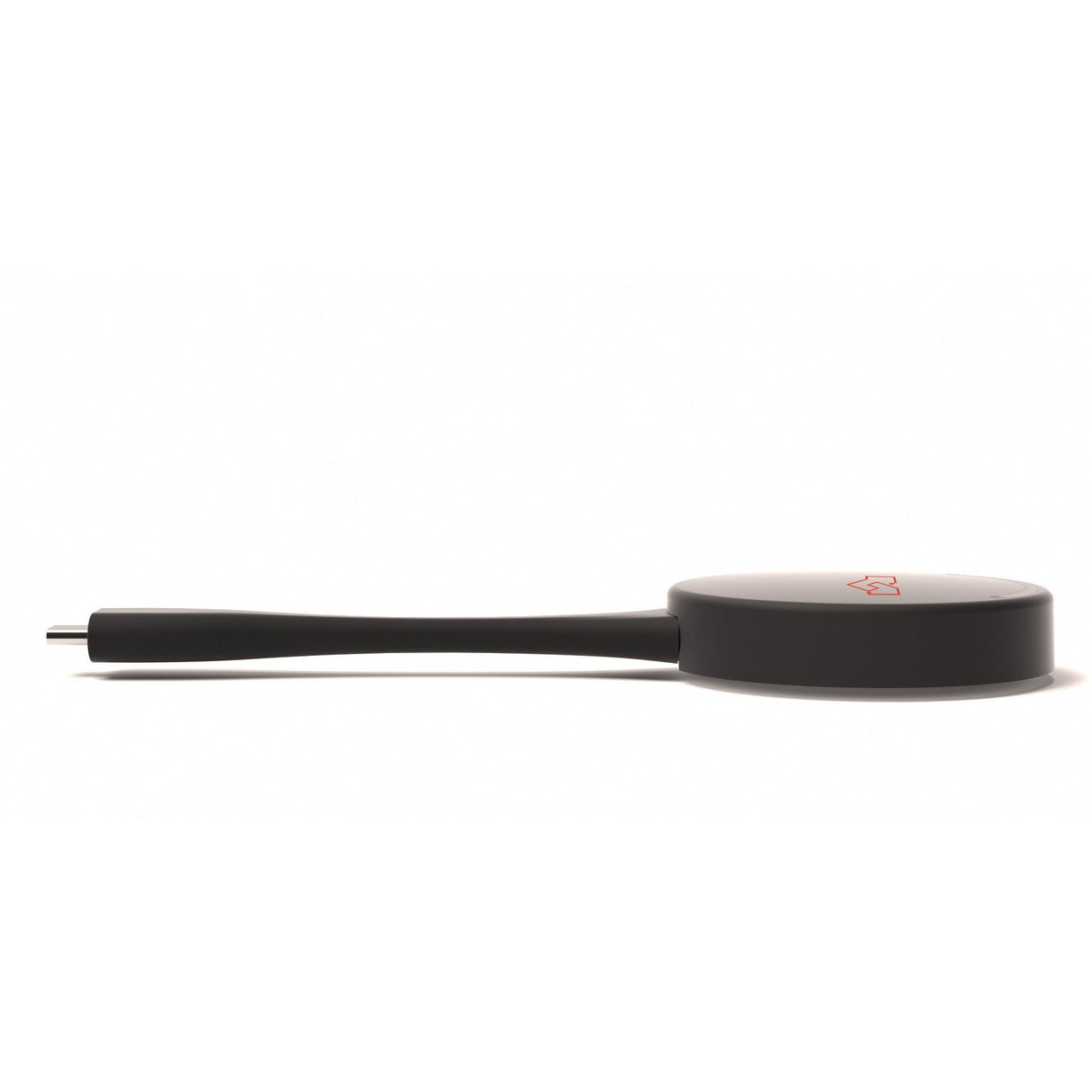

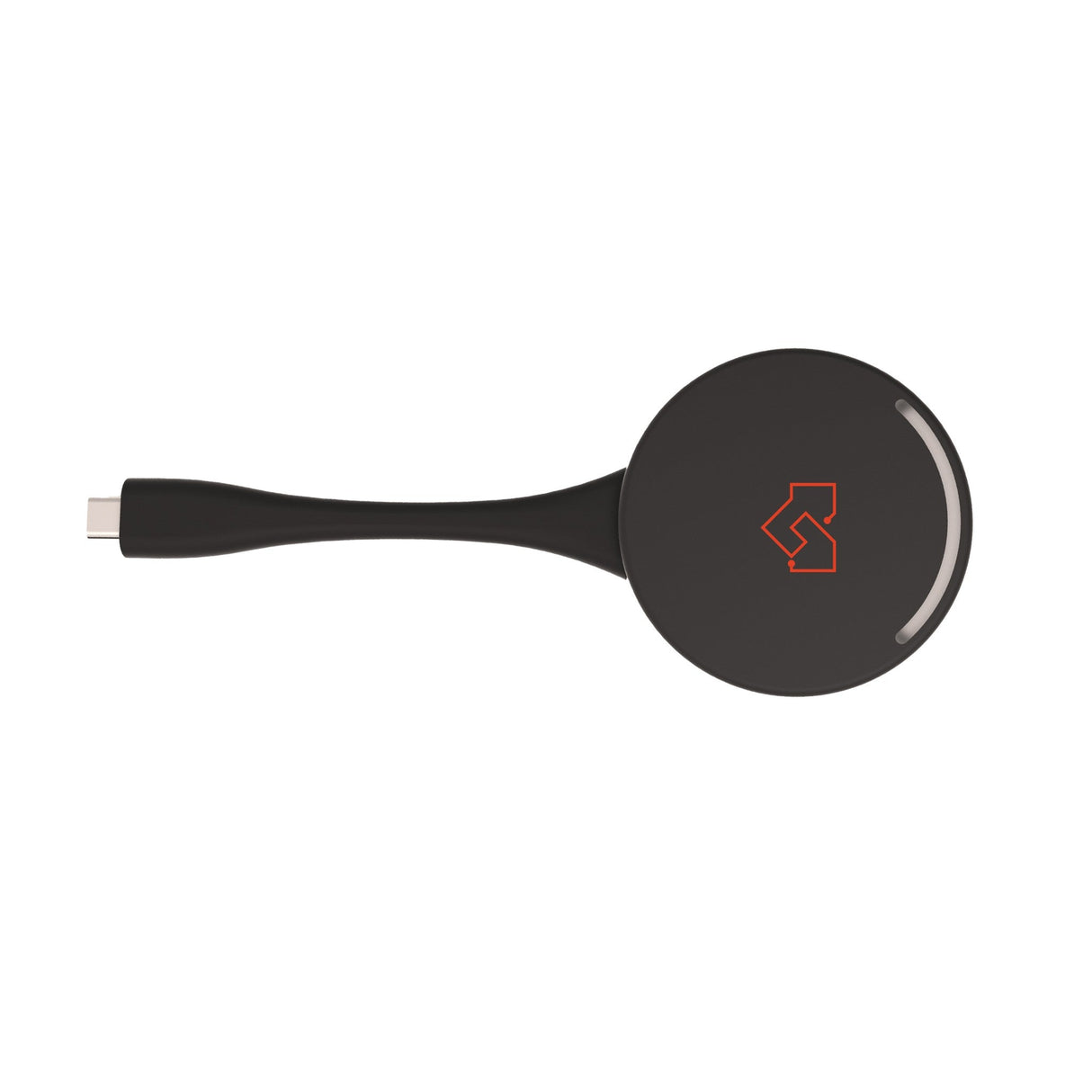

VigilLink USB-C Dongle Transmitter

The VLWP-USBC1 Wireless USB-C Dongle Transmitter offers seamless integration with all VigilLink wireless media bases, providing an enhanced user experience with its easy touch and tap functionality. This plug-and-play device requires no additional software or drivers, making it incredibly simple to use. With its sleek USB-C interface, it eliminates the need for extra USB power cables, offering more convenience for users. Ideal for both professional and home setups, the VLWP-USBC1 supports high-definition wireless transmission, ensuring crisp, reliable video and audio for a variety of applications.

Designed for hassle-free operation, the VLWP-USBC1 is a game-changer for those looking to streamline their wireless media setup. It supports HD video resolutions up to 2560×1440 at 60Hz, ensuring stunning visuals, while its WiFi capabilities allow for reliable and high-speed wireless data transfer. This compact transmitter supports multiple video resolutions and works with a variety of devices, making it an excellent choice for meetings, presentations, or home entertainment systems.

With a robust set of technical features, including Wi-Fi 802.11 a/g/n/ac support, this dongle ensures a stable connection across distances of up to 35 meters. The device operates with minimal latency and has a capacitive touch key for easy operation. The VLWP-USBC1 is engineered for ease of use, offering simple setup and reliable performance in any environment.

Key Features

• Easy-to-use USB-C interface for wireless media transmission
• App-free, plug-and-play operation with no software or drivers required
• Supports HD video resolutions up to 2560×1440 at 60Hz
• WiFi IEEE 802.11 a/g/n/ac for fast and stable wireless transmission
• Supports distances up to 35 meters without obstacles
• Capacitive touch key for simple operation
• Compact design for easy portability and installation

Technical Specifications

HDCP: HDCP1.3
Video Input Formats: Compliant with DP 1.2 for 1.62Gbps, 2.7Gbps, 5.4Gbps, Compliant with DP 1.2 and eDP1.4, Support DP 1, 2, 4 lanes over Type C
Video Input Resolution: VESA, maximum 2560×1440
Video Input Timing: 1920×1080, 1680×1050, 1600×900, 1440×900, 1400×1050, 1366×768, 1280×1024, 1280×800, 1280×720, 1024×768, 1920×1200, 1600×1200, 2560×1440 @24, 25, 30, 50, 60Hz
Video Output Formats: 1 x Wireless
Audio Input Formats: DP 2CH PCM
Audio Output Formats: WiFi 11b/g/n/ac
USB Input: USB Type C (USB 2.0 only)
Wireless Transmission Protocol: WiFi IEEE 802.11 a/g/n/ac
WiFi Frequency Band: 2.4 GHz & 5 GHz
WiFi Antenna: MIMO 2x2
WiFi Data Rate: Up to 1200Mbps
Video Capacity: Wireless Transmission 1080P@60Hz, 2560×1440 30Hz
Distance: Typical 35m without obstacle
Latency: <100ms
Button: Capacitive touch key and vibration
Indicator: Green/Red/color back-lit LED indicator

Mechanical

Round Unit Dimensions (LxHxR): Without cable: 2.56" x 0.59" x 3.15", with cable: 7.48"
Weight: ~0.44lbs (-85g)
Surface Finish: 1~2mm plastic with matte black finish
Power Input: USB Internal 5V
Power Consumption: 3W (max.)
Operating Temperature: -4°F to +113°F (-20°C to 45°C)
Storage Temperature: -4°F to +140°F (-20°C to 60°C)
Relative Humidity: 20-85% RH (No condensation)

What’s Included

• VLWP-USBC1 Wireless USB-C Dongle Transmitter
• Quick start guide
• Warranty information
