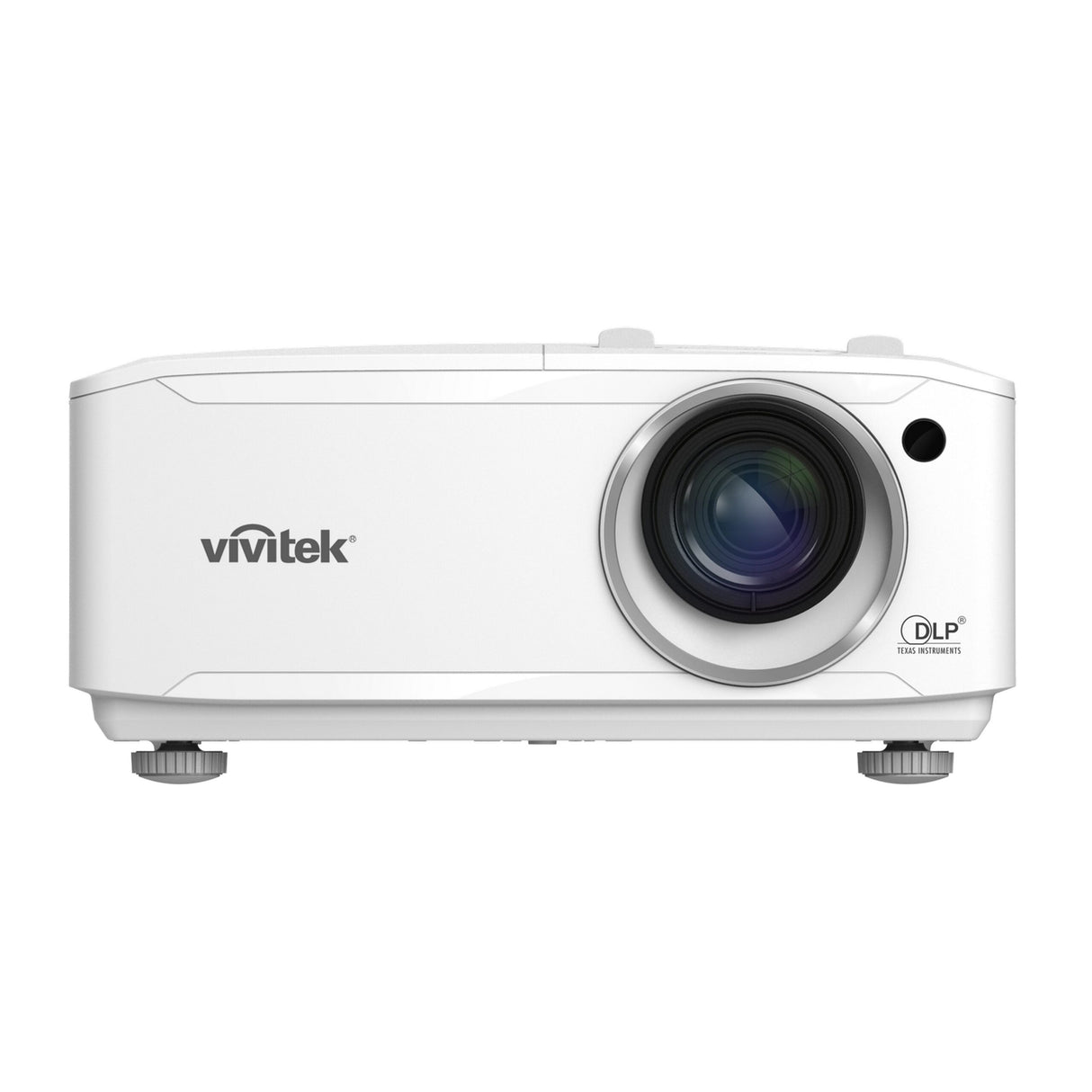

Vivitek DU4771Z-WH High Performance WUXGA 6000 Lumen Laser Projector with HDBaseT

EXCELLENT CONNECTIVITY
The Vivitek DU4771Z-WH gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: HDMI, HDMI 2, HDMI 3, VGA, RJ45 (HDBaseT compatible), RS-232C, 3D Sync, Wired Remote, USB (Service), Audio In, Audio Out.

Key Features

• 6,000 lumens of brightness with a 20,000:1 contrast ratio
• Native WUXGA (1920 x 1200) DLP DarkChip3 and BrilliantColor technologies for sharp, detailed and vibrant colorful image.
• Solid state laser phosphor light source for reliable projection and performance.
• Environmentally friendly lamp-less design that is mercury-free and energy efficient
• Almost maintenance-free with up to 20,000 hours of operating time
• Manual zoom and focus for easy adjustment and positioning flexibility
• Horizontal and vertical lens shift for greater installation convenience and flexibility
• Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner adjustment
• MHL device compatibility for streaming of video and audio content from a compatible mobile device
• HDBaseT interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
• Full suite of display connectivity inputs and outputs
• 10W of total stereo audio power (5W x 2) with multiple audio-in and audio-out ports
• 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
• 360 Degree operation and projection design for set up in all angles
• Portrait mode projection allows the projector to be easily setup and installed in a 90 Degrees installation
• Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
• Network ready for integration and system administration via RJ45
• Crestron RoomView integration for network monitoring and management
• Anti-theft security features include: Kensington security slot, security bar

Technical Specifications

Display Type
Single 0.67” DLP Technology by Texas Instruments
Brightness
6,000 ANSI Lumens
Native Resolution
WUXGA (1920 x 1200), 16:10 Format
Contrast Ratio
20,000:1 (Full On/Off)
Laser Life and Type
20,000 + hours (Laser Phosphor Light Engine)
Throw Ratio
1.15 to 1.9:1 (Distance/Width)
Image Size (Diagonal)
62 - 257”
Projection Distance
4.9’ to 16.4’ (1.5 to 5m)
Projection Lens
F# 2.45 - 3.13, f=17.23 - 27.9mm
Zoom Ratio
1.65:1 Manual Zoom/Focus
Aspect Ratio
16:10 Format
Offset
130% / 115%
Keystone Correction
± 30 Degrees Vertical, Horizontal ± 30 Degrees
Color Spectrum
1.07 billion
Horizontal Scan Rate
15, 31 ~ 102KHz
Vertical Scan Rate
24 ~ 30Hz, 47 ~ 120Hz
3D Functionality
Full 3D (Via DLP Link, Blu-ray and Broadcast 3D)
Speaker
5W(x2), 10W total
Lens Shift Range
Vertical: 12%,
Horizontal: +/- 5%
Remote Control
Fully Featured IR Remote
Projection Method
Table Top or Ceiling Mount (Front or Rear)
Uniformity
85%
Computer Compatibility
WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility
HDTV (1080i/p, 720p), SDTV (480i, 576i), EDTV (480p, 576p), SDTV (480i, 576i), NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM
Security
Kensington Lock Port, Security Bar
Weight
23.6lbs (10.7kg)
Dimensions (W x D x H)
13.8” x 17.7” x 5.9” (350 x 450 x 151mm)
Noise Level
38dB / 36dB (Normal / Eco)
Power
Supply: AC 100-240V, 50/60Hz
Consumption: 560W/440W (Normal/Eco)
<0.5W (Standby Mode), < 2W (LAN Standby)
Operating Temperature
41 to 104 Degrees F (5 to 40 Degrees C)
Warranty
3-Year Limited Parts/Labor
Standard Accessories
AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card
Optional Accessories
Wireless Collaboration System NovoPro
Wireless Collaboration System NovoDS
UPC
DU4771Z-WH: 813097024138
