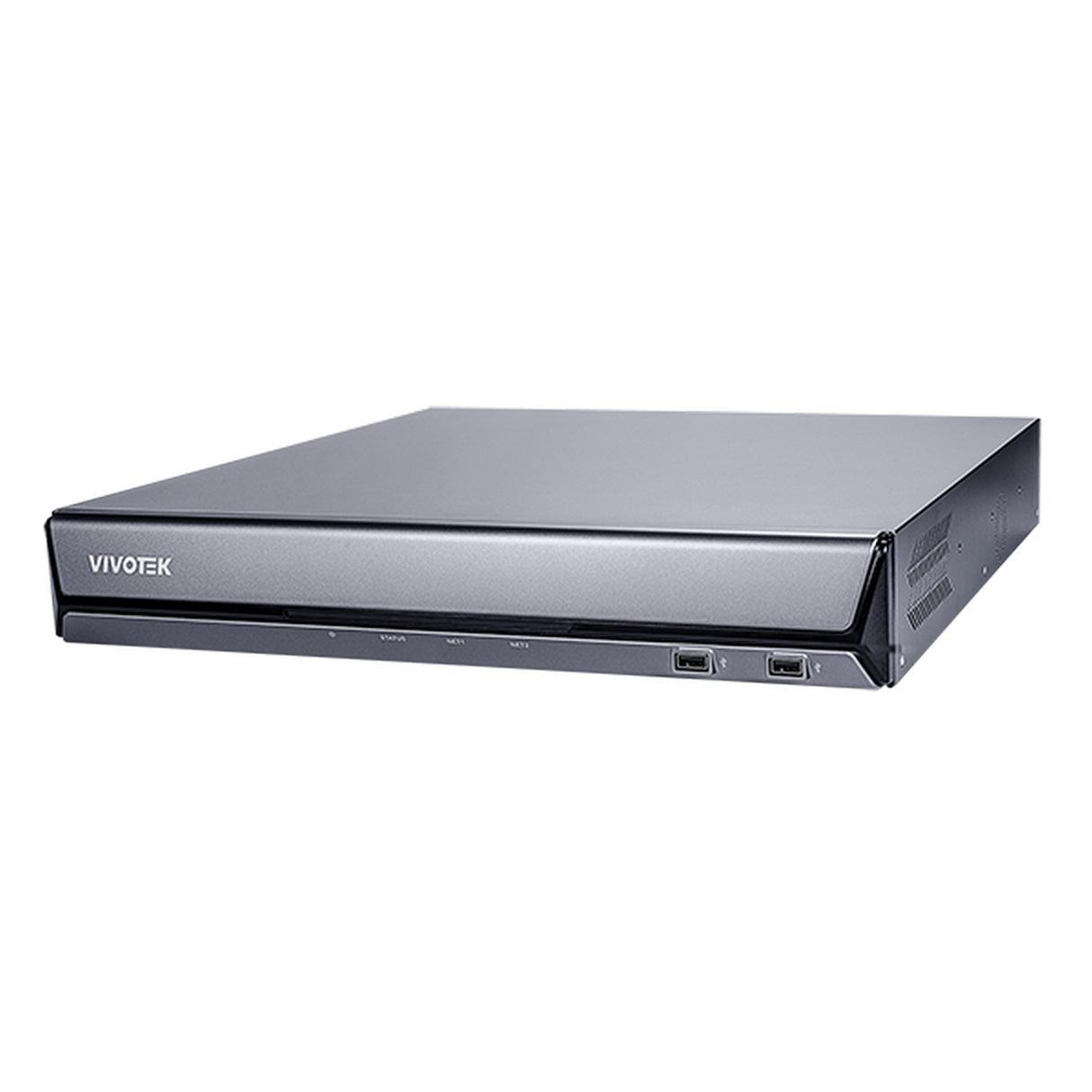

VIVOTEK Core+ AI H.265 16-Channel Embedded PoE Network Video Recorder

Core+ AI H.265 16-Channel Embedded PoE Network Video Recorder

The VIVOTEK ND9442P is a cutting-edge 16-channel network video recorder (NVR) designed to meet the demands of modern surveillance systems. Equipped with the advanced Core+ AI firmware, it offers enhanced functionalities such as Deep Search, enabling rapid and efficient evidence retrieval. By integrating with VIVOTEK cameras featuring Vision Object Analytics, users can leverage AI-driven searches based on specific attributes, streamlining the process of identifying persons or vehicles of interest.

This NVR supports 4K IP camera video input and provides 4K local video output, ensuring ultra-high-definition video monitoring and recording. With support for RAID configurations (0, 1, 5), the ND9442P offers data redundancy and protection against recording loss. Additionally, its compatibility with VORTEX cloud services allows for seamless remote monitoring and management, providing users with flexibility and convenience in their surveillance operations.

Key Features:

• Deep Search functionality utilizing AI for rapid evidence retrieval based on attributes such as gender, age group, clothing color, and vehicle type/color.
• Supports Smart VCA event search, allowing users to search by single or multiple event types and playback triggered events. *Requires Smart VCA enabled cameras
• Supports 4K IP camera video input and provides 4K local video output via HDMI for ultra-high-definition monitoring.
• Supports RAID 0, 1, 5 configurations to prevent recording loss and ensure data redundancy.
• Enhanced cybersecurity measures through Trend Micro IoT Security integration.
• Seamless integration and management with VORTEX cloud services and VAST Security Station.
• Supports up to 16 channels with a recording resolution of up to 3840 x 2160.
• Equipped with 16 PoE+ ports with a total power budget of 200W, compliant with IEEE 802.3af/at standards.
• Four SATA ports supporting HDDs up to 8TB each, allowing for a maximum storage capacity of 32TB. *HDDs available separately
• Remote management capabilities via the iViewer app for iOS and Android devices.
• Compliance with ONVIF profile S for interoperability with ONVIF-compliant cameras.

Technical Specifications:

Number of Channels: 16
Playback Resolution: HDMI: 3840 x 2160; VGA: 1920 x 1080
Recording Resolution: Up to 3840 x 2160
PTZ Support: Yes
Throughput: 192 Mb/s (Recording); 224 Mb/s (Networking)
Video Compression: H.265, H.264, MJPEG
Audio Compression: G.711, G.726
Audio Input/Output: 1x 3.5 mm audio input; 1x 3.5 mm audio output
Network Interfaces: 16x RJ45 PoE+ ports; 2x RJ45 Gigabit Ethernet ports
USB Ports: 1x USB 3.0; 2x USB 2.0
RS-485 Interface: Yes
Supported Protocols: DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP
Operating System: Embedded Linux
Maximum Storage Capacity: Up to 8TB per HDD; Total up to 32TB
RAID Support: RAID 0, 1, 5
Alarm Input/Output: 16x alarm inputs; 8x alarm outputs
Recording Modes: Continuous, schedule, manual, event, activity adaptive streaming
Power Supply: 100 to 240 VAC, 50/60 Hz
Power Consumption: Maximum 300W
Operating Temperature: 14 to 131°F (-10 to 55°C)
Dimensions (W x D x H): 17.0 x 16.6 x 2.6 inches (432 x 421 x 66 mm)
Weight: 10.1 lb (4.6 kg) without HDD
Certifications: CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS

Package Contents:

• VIVOTEK ND9442P 16-Channel 4K UHD PoE NVR (No HDD)
• Power Cord
• HDD Adapter Brackets
• Mouse
• Screws
• Foot Pads
• Limited 36-Month Manufacturer Warranty
