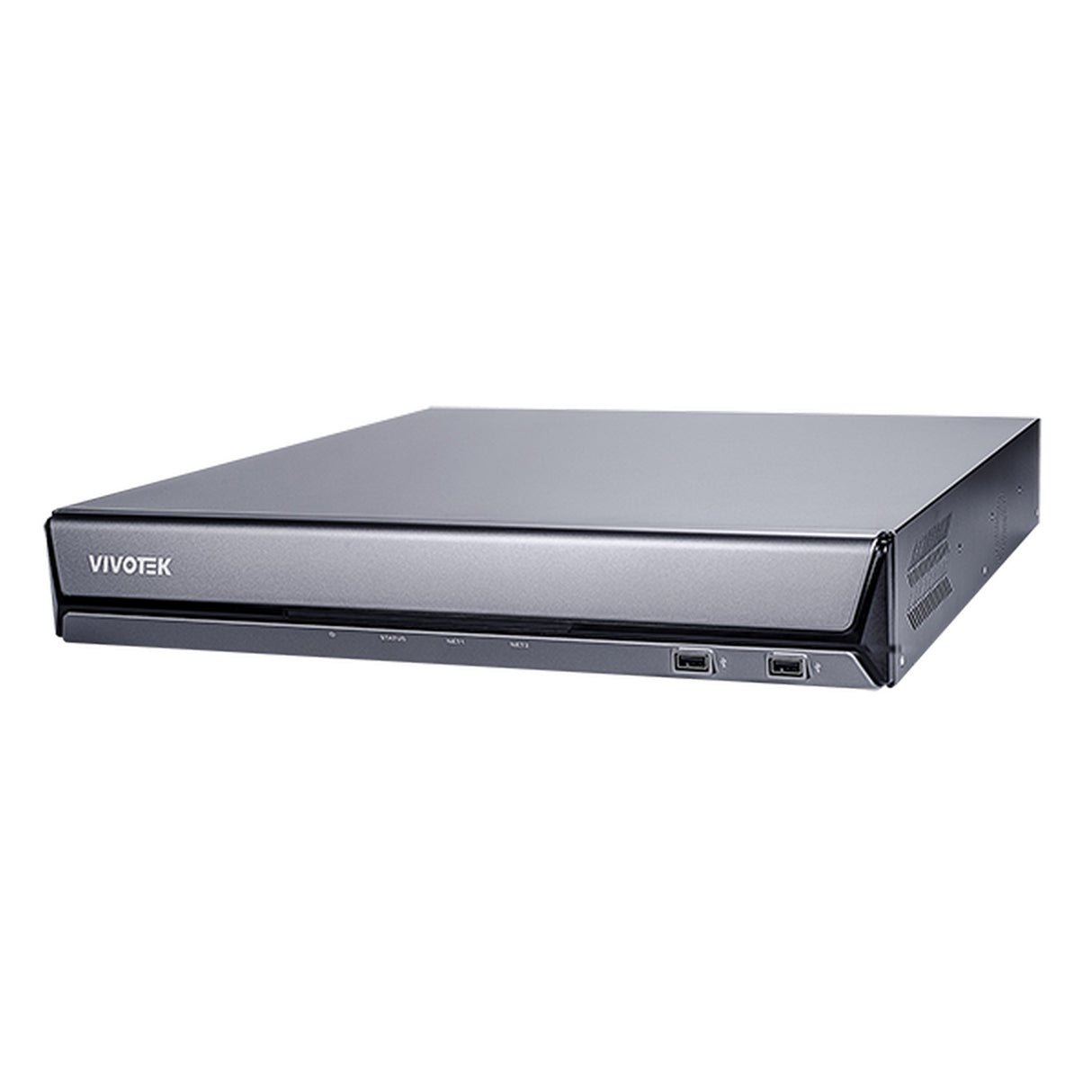

VIVOTEK Core+ AI H.265 32-Channel Embedded PoE NVR

Core+ AI H.265 32-Channel Embedded PoE NVR

The VIVOTEK ND9542P is a standalone network video recorder (NVR) designed to support up to 32 channels of H.265/H.264 video decoding, providing high-quality surveillance solutions for various applications. With embedded PoE capabilities and support for 4K IP camera video input and local 4K video output, this NVR ensures detailed video monitoring and recording. Its integration with VIVOTEK's deep-learning video analytics technology, Smart VCA, allows for advanced event search functionalities, enhancing the efficiency of security operations.

To safeguard against data loss, the ND9542P supports RAID configurations (0, 1, 5), offering robust data protection and system reliability. Additionally, the device features cybersecurity measures powered by Trend Micro IoT Security, ensuring protection against potential cyber threats. The NVR's compatibility with VORTEX and VAST Security Station enables seamless integration into existing security infrastructures, providing a comprehensive and scalable surveillance solution.

Key Features:

• Supports up to 32 channels of H.265/H.264 video decoding
• Embedded 16-port PoE switch compliant with 802.3at/af standards, providing a total power budget of up to 200W
• Supports RAID 0, 1, 5 configurations to prevent recording loss
• 4K IP camera video input and local 4K video output for high-definition video monitoring and recording
• Integration with Smart VCA for advanced event search capabilities
• Cyber protection via Trend Micro IoT Security
• Seamless integration with VORTEX and VAST Security Station for scalable surveillance solutions

Technical Specifications:

Operating System: Embedded Linux
Watchdog: Hardware + Software
Power Restoration: System restarts automatically after power recovery
Live View Display: Supports 32 channels with multiple layout options (e.g., 1x1, 2x2, 3x3, 4x4)
Video Output: HDMI x1, VGA x1
Display Resolutions: 3840x2160, 1920x1080, 1280x720
Decoding Capacity: 4K at 120 fps (H.265/H.264)
Recording Throughput: Up to 192 Mbps
Recording Modes: Continuous, schedule, manual, event, activity adaptive streaming
Storage: Supports up to 4 internal 3.5" HDDs (HDDs purchased separately)
RAID Support: RAID 0, 1, 5
Ethernet: 10/100/1000Mbps Ethernet (RJ-45) x2
PoE Ports: 16 ports, 802.3at/af compliant, total max. 200W
USB Ports: Front: 2 x USB 2.0; Back: 1 x USB 3.0
Alarm Input: 16 channels
Alarm Output: 4 channels
Audio Input: 1 line-in
Audio Output: 1 line-out
Dimensions: 14.37" (W) x 12.4" (D) x 1.73" (H) (365 x 315 x 44 mm)
Weight: 6.13 lbs (2.78 kg) without HDD
Power Input: 100~240V AC
Power Consumption: Max. 250W
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Operating Humidity: 0% ~ 90% RH
Safety Certifications: CE, LVD, FCC Class A, VCCI, C-Tick, UL
Language Support: Multiple languages including English, German, French, Italian, Spanish, Japanese, Russian, Traditional Chinese, Simplified Chinese, Czech, Polish, Turkish, Hungarian, Slovak, Portuguese, Thai, Greek, Dutch, Hebrew, Finnish, Korean, Swedish, Danish, Croatian, Romanian, Norwegian, Bulgarian, Slovenian, Serbian, Estonian, Latvian, Lithuanian, Arabic, Farsi, Indonesian, Vietnamese

Package Contents:

• ND9542P NVR unit
• Quick installation guide
• Power cord
• USB mouse
• Screws for HDD installation
