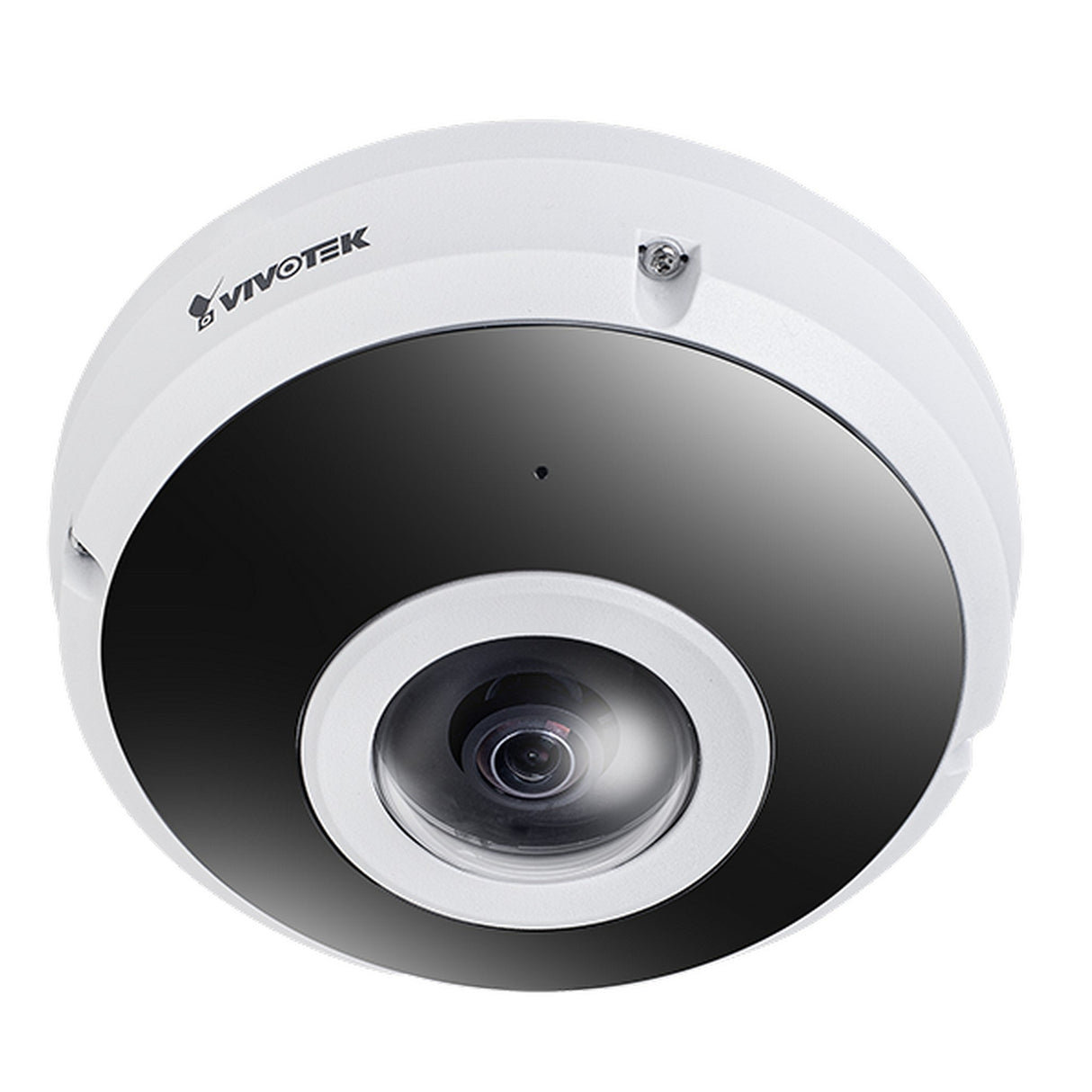

VIVOTEK FE9380-HV C-Series 5MP 360° Fisheye WDR Pro IP Camera, 1.16mm Lens, Black and White

The VIVOTEK FE9380-HV is a 5MP outdoor fisheye network camera designed to provide comprehensive 360° surveillance coverage. Equipped with a 1/2.7" progressive CMOS sensor, it delivers high-resolution 1920x1920 video, ensuring detailed image capture across wide areas. The camera's fixed-focal 1.16 mm lens offers a full 180° horizontal, vertical, and diagonal field of view, making it ideal for monitoring open spaces such as parking lots, plazas, and building entrances.

Built to withstand challenging outdoor environments, the FE9380-HV features an IP66-rated weatherproof and IK10-rated vandal-resistant housing. Its built-in IR illuminators provide effective night vision up to 10 meters, while WDR Pro technology ensures clear images in high-contrast lighting conditions. Additionally, the camera supports H.265 compression with Smart Stream III, significantly reducing bandwidth and storage requirements without compromising image quality.

Key Features:

• 5MP resolution (1920x1920) with 1/2.7" progressive CMOS sensor
• Fixed-focal 1.16 mm lens with 180° horizontal, vertical, and diagonal field of view
• Built-in IR illuminators effective up to 10 meters with Smart IR
• WDR Pro technology providing 120 dB dynamic range
• Weather-proof IP66 and vandal-proof IK10-rated housing
• Supports H.265, H.264, and MJPEG video compression
• Trend Micro IoT Security for enhanced cybersecurity protection
• Built-in microphone with 5-meter effective range
• Seamless recording to MicroSD/SDHC/SDXC card and NAS
• ePTZ functionality with 12x digital zoom

Technical Specifications:

Image Sensor: 1/2.7" Progressive CMOS
Max. Resolution: 1920x1920 (5MP)
Lens Type: Fixed-focal
Focal Length: f = 1.16 mm
Aperture: F2.25
Iris Type: Fixed iris
Field of View: 180° (Horizontal), 180° (Vertical), 180° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, effective up to 10 meters with Smart IR, IR LED*4
Minimum Illumination: 0.05 lux @ F2.25 (Color), <0.005 lux @ F2.25 (B/W), 0 lux with IR illumination on
ePTZ: 12x digital zoom (12x on IE plug-in)
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 24 fps @ 1920x1920 (WDR on); 30 fps @ 1920x1920 (WDR off)
Maximum Streams: 4 video streams (Up to 9 configurable profiles)
S/N Ratio: 63 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings: Video title and time stamp overlay, video orientation (flip, mirror), day/night settings, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, exposure control (BLC, HLC, exposure level, exposure time, gain control), AE speed adjustment, WDR, privacy mask, scheduled profile settings
Audio Capability: One-way Audio
Audio Compression: G.711, G.726
Audio Interface: Built-in microphone
Effective Range: 5 meters
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
ONVIF: Profile S, T supported
Video Motion Detection: Five-window video motion detection
Alarm and Event: Event triggers: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot; Event actions: Event notification via email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors: RJ-45 cable connector for 10/100 Mbps Network/PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 0
Power Consumption: Max. 12 W (IR on), Max. 3.8 W (IR off)
Dimensions: Ø150 mm x 68.2 mm
Weight: 695 g
Certifications: EMC: CE (EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
Operating Temperature: Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity: 90%
Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above, Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above

Package Contents:

• Quick installation guide
• Alignment sticker
• Screw pack
• Warranty card
• Desiccant bag
