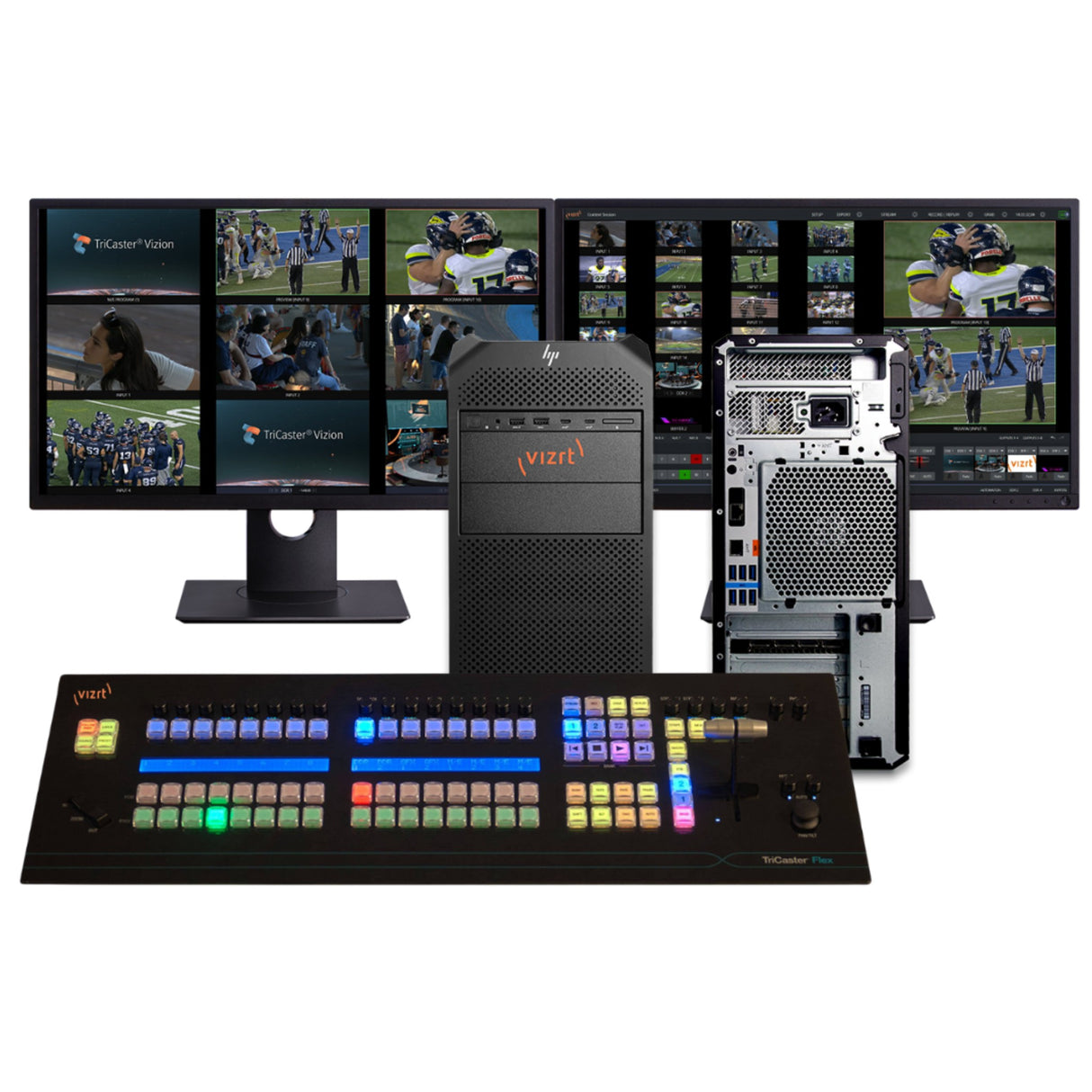

Vizrt TriCaster Vizion Tower 16 & Flex Control Panel Bundle

Vizrt TriCaster Vizion Tower 16 & Flex Control Panel Bundle

Professional Live Production Switcher + Hands-On Control

TriCaster® Vizion Tower 16 is built for sophisticated multi-camera productions where reliability, speed, and creative control matter. Trusted across broadcasting, sports networks, and live event production, this system combines powerful production tools with AI-enabled capabilities to help teams create polished live content efficiently.

With up to 44 simultaneous live video inputs (including resolution-independent NDI® IP sources), UHD support up to 2160p at 60fps, and flexible SDI I/O (up to 16 configurable ports depending on hardware version), TriCaster Vizion Tower 16 is designed for modern hybrid workflows. The included Flex Control Panel adds tactile, operator-friendly control for PTZ, audio connections, audio/video mixing, and talkback—ideal for studios, venues, and remote productions connected with NDI®.

This bundle also includes a Viz Flowics Basic Plan (4 users), enabling cloud-based graphics creation and data-driven on-air visuals rendered locally via TriCaster Live Link for streamlined, professional graphics delivery.

Key Features For Broadcast, Sports, And Live Events

• 44 Simultaneous Video Inputs: Support for any combination of compatible sources up to UHD 2160p at 59.94/60fps for large multi-source productions.
• NDI®-First IP Workflow: Up to 44 IP inputs via NDI® with key/fill support, plus extensive NDI® output options for networked production environments.
• Flexible SDI I/O: 12G/3G/HD-SDI connectivity with up to 16 configurable ports (hardware dependent), configurable for input or output; up to 8 ports support 12G signals.
• Multi-Bus Production Power: 8 M/E (Mix/Effect) buses, multiple media players, and integrated composition tools to build and recall complex looks quickly.
• Advanced Keying & Virtual Sets: LiveMatte™ chroma/luma keying across sources and buses, plus LiveSet™ technology with 30+ live virtual sets and box effects.
• Remote & Collaborative Production Tools: Live Call Connect support for multiple video call inputs and enhanced remote production workflows.
• Integrated Recording & Streaming: Configurable recording across M/E channels, physical SDI inputs, DDRs, and streaming encoders—built for live-to-file delivery.
• Flex Control Panel Included: Hands-on control for PTZ devices, audio connections, mixing, and talkback—optimized for confident operation anywhere via NDI®.
• Viz Flowics Basic Plan Included: 4-user plan with graphics editor, data integrations (Google Sheets, RSS/Atom, JSON), MFA, Control API, and support resources.

Technical Specifications

• External Video Inputs: 44 x simultaneous external inputs, any combination of compatible sources up to UHD 2160p at 59.94/60fps (2160p 59.94).
• Network Video Inputs: 44 x IP inputs via NDI®; resolution-independent, supports key and fill.
• SDI Video I/O: 12G/3G/HD-SDI; up to 16 configurable ports (hardware dependent), configurable for input or output; up to 8 ports support 12G signals.
• Supported SDI Formats: 2160p (59.94/50/29.97/25), 1080p (59.94/50/29.97/25), 1080i (59.94/50), 720p (59.94/29.97/25) (frame rates determined by NTSC/PAL session standard).
• Video Outputs: Up to 8 independent HD outputs or 2 UHD mix outputs, with simultaneous IP and SDI delivery.
• Network Video Outputs (HD Sessions): 56 x NDI® IP outputs including mix outputs, direct source translations, multiviewer outputs, UI multiviewer, teleprompter output, and selectable outputs via internal NDI® matrix router.
• Audio Mixer: 44-channel integrated mixer with 8-channel audio support, DSPs, and 4x8x8 audio input routing.
• Local Audio I/O: Up to 16 x SDI embedded inputs; up to 8 x SDI embedded outputs.
• Network Audio: NDI® audio I/O with embedded audio on NDI® signals; Dante™ support requires Dante Virtual Soundcard license (sold separately); AES67 support via compatible WDM audio drivers (third-party virtual sound card license sold separately).
• Media Players & Buffers: 5 media players (4 DDR + 1 Sound); 15 media buffers (10 animation buffers with GIF support + 5 graphic buffers).
• Keyers: LiveMatte™ on all source channels and M/E buses (includes input, media player, M/E, PREVIZ, and buffer keyers).
• Virtual Sets: LiveSet™ technology with 30+ live virtual sets and box effects included.
• Data Integration: DataLink™ support for real-time data from internal/external sources including webpages, spreadsheets, scoreboards, databases, RSS, watch files, XML, CSV, ASCII, and more.
• Recording: Supports configurable recording across M/E channels, physical SDI inputs, DDRs, and streaming encoders; supports growing file playback from DDRs; instant replay capability on each input.
• Internal Storage: 4 TB SSD.
• External Storage Support: Record to external storage via USB (7 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 1 x USB 2.0, plus additional USB 3.2 Gen2 Type-A as specified).
• PTZ Support: Up to 44 simultaneous PTZ cameras via serial and network protocols (RS232, RS422, IP) with integrated controls and presets.
• Monitoring: Up to 4 multiviewer displays via DisplayPort with configurable workspaces and viewports.
• Signal Monitoring: Integrated waveform and vectorscope; ITU-R Rec. 709 support.
• Processing: Video YCbCr + Alpha color space (4:2:2:4); audio floating point at 96 kHz.
• Latency: Processing latency ~1.0–1.5 frames; practical throughput latency 4 frames.
• Standards: 12G-SDI (SMPTE ST 2082), 3G-SDI (SMPTE 424M Level A), HD-SDI (SMPTE 292M).
• Tally: Network tally via NDI® and Blackmagic Design® SDI tally standard.
• Genlock: Genlock input per I/O board supporting SD (Bi-level) or HD (Tri-level) reference.
• Network Interfaces: 1 x 10 GbE; 1 x 1 Gigabit NIC.
• System Drive: 500 GB SSD.
• Chassis (Tower): Tower chassis with 1 x 1125W PSU.
• Physical Size (Tower): 17.5 x 15.2 x 6.65 in.
• Weight (Tower): 27.8 lb.

What's Included

• TriCaster Vizion Tower 16
• Flex Control Panel
• Viz Flowics Basic Plan (4 Users)
