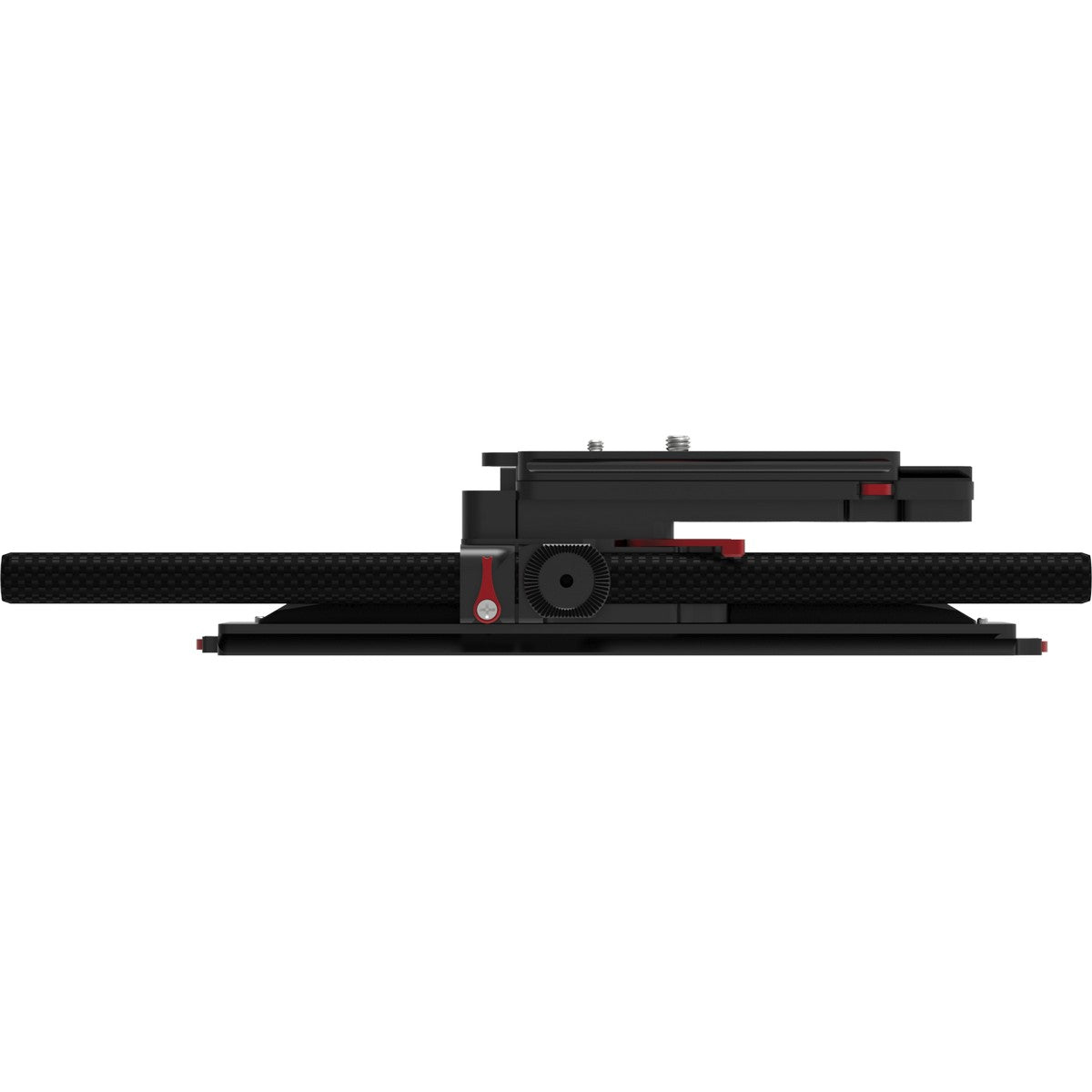

Vocas BP-19 MKII with 295mm Long Dovetail Plate

Vocas BP-19 MKII with 295mm Long Dovetail Plate

Vocas Sliding System: Achieve Optimal Balance with the BP-19 MKII Plate
The BP-19 MKII is an adjustable 19 mm balance plate that offers a unique quick-release mechanism to ensure stability and balance for all kinds of camera/lens combinations. It is a part of the revolutionary Vocas Sliding System, which provides a new way to mount cameras to different setups while optimally balancing them.

The universal camera adapter plate (0350-2250) is the heart of this system, which can attach to nearly any camera and provide a mini dovetail connection. This allows the camera to slide on and off various Vocas products that are based on this mini dovetail system, such as the USBP-15 MKII base plates and Quick Release Dovetail Plate (0350-2220).

All these products come equipped with a quick-release lever, enabling you to find optimal balance for your setup within seconds and without needing any tools. This feature is especially helpful when changing lenses frequently. Moreover, it's easy to switch between 15 mm setups, 19 mm setups, drones, gimbals, or any other conceivable setup incorporating the Quick Release Dovetail Plate (0350-2220).

The BP-19 MKII's height-adjustable front rails make it highly compatible with nearly all cameras. The set comes with a 295 mm long balance dovetail plate (0480-0101) to mount the 19 mm setup directly to any tripod. By using the BP-19 MK II, the integrated sliding system on the upper side of the plate and the balance dovetail plate offer you a multitude of stability and balancing options.

Key Features

• The BP-19 MKII is a balance plate that can be adjusted to a height of 19 mm.
• It features a unique quick release balancing system for achieving optimal balance and stability with different camera/lens combinations.
• The BP-19 MKII is a component of the Vocas Sliding System, which offers a revolutionary method of mounting cameras onto various setups while ensuring optimal balance.
• The universal camera adapter plate (0350-2250) is the core of this system and can be attached to almost any camera.
• The adapter plate provides the camera with a mini dovetail connection, allowing it to slide on and off other Vocas products that utilize the mini dovetail system.
• Examples of such products include the USBP-15 MKII base plates and Quick release dovetail plate (0350-2220).
• All of these products are equipped with a quick release lever, enabling users to quickly find the optimal balance for their setup without the need for any tools.
• This feature is particularly advantageous when changing lenses frequently.
• The BP-19 MKII and the Vocas Sliding System offer a convenient and efficient solution for achieving optimal balance and stability in camera setups.
• With its quick release lever and compatibility with various camera models, this system provides flexibility and ease of use for photographers and videographers.

Technical Specifications

Rosette
2 Integrated
Bars position
Front, Rear
Bars system
19 mm
Height adjustable
Yes
Camera mounting points
1
Equipment covered
FX6, Venice 2
Package included
BP-19 MKII
Camera adapter plate (0350-2250)
295 mm long balance dovetail plate (0350-2020)
2x Carbon 19 mm rail. Length; 400 mm. (0480-0400)
Sliding System compatible
Yes
Material
Aluminum, Carbon fiber, Stainless steel
Weight (gr.)
2,027
Manufacturer Item code
0480-0021
