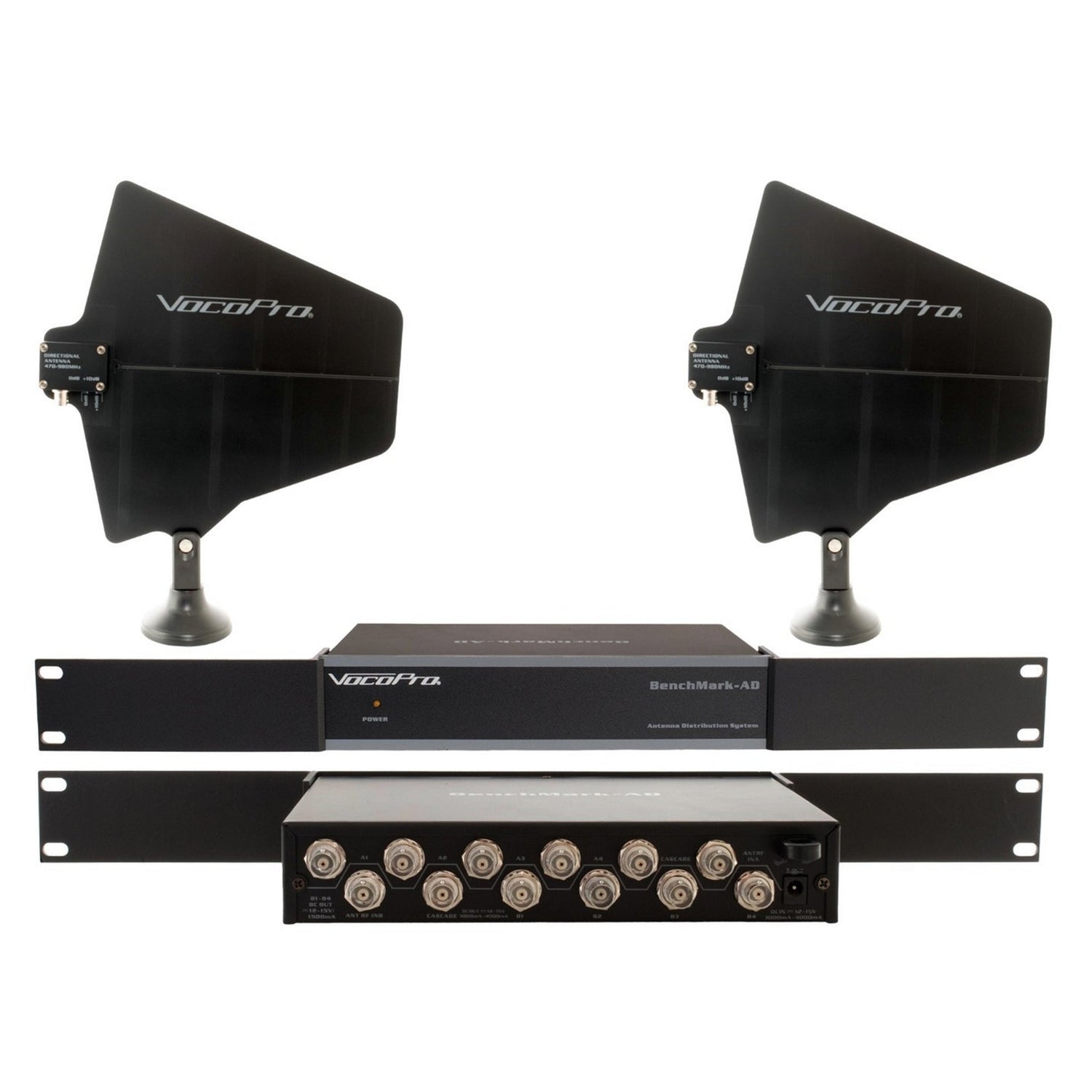

VocoPro Benchmark-AD Professional Antenna Distribution System with 2 Active Directional Antenna Bundle

The VocoPro Benchmark-AD Professional Antenna Distribution System with 2 Active Directional Antenna Bundle is a cutting-edge system designed to distribute active antennas, allowing multiple wireless microphone receivers from any brand to utilize a single pair of directional fin antennas. With the capability to connect up to 10 single antenna wireless receivers or 5 dual antenna wireless receivers across the UHF spectrum, this professional bundle offers unparalleled convenience and flexibility.

By replacing multiple whip antennas with a single pair of directional fin antennas, the BENCHMARK-Antenna Distributor effectively minimizes RF reflections and crosstalk bleed, which are common culprits behind signal dropouts. Additionally, the internal booster amplifier significantly extends the range of the wireless receivers, providing up to four times the coverage area.

For larger setups, up to 3 Benchmark-AD units can be combined to support multiple wireless microphone receivers, all utilizing a single pair of directional antennas. The package includes both BNC and TNC type antenna adapters, as well as connection cables, ensuring compatibility with the majority of wireless microphone systems available in the market. With its advanced features and comprehensive compatibility, the BENCHMARK-Antenna Distributor is the ideal solution for professional audio setups requiring efficient antenna distribution.

Key Features

• Eliminate dropout caused by multipath reflections and cross-polarization fades by replacing multiple wireless receivers' whip antennas with a single pair of directional fin antennas.

• Enhance receiver range up to 600 feet with the help of an internal antenna booster.

• Connect the directional fin antenna to a standard 5/8” thread mic stand or 3/8” thread using the included adapter.

• Share one pair of directional fin antennas across the UHF frequency spectrum by daisy chaining up to three antenna distributors.

• Improve the performance of multiple wireless microphone receivers by utilizing the benefits of directional fin antennas.
  * Wireless microphone receivers are not included.

Technical Specifications

Included
BENCHMARK-AD x1
BASE x2
TN-BN x10
MANUAL x1
Weight / Dimensions
10 lbs.; 18” x 17” x 8”
