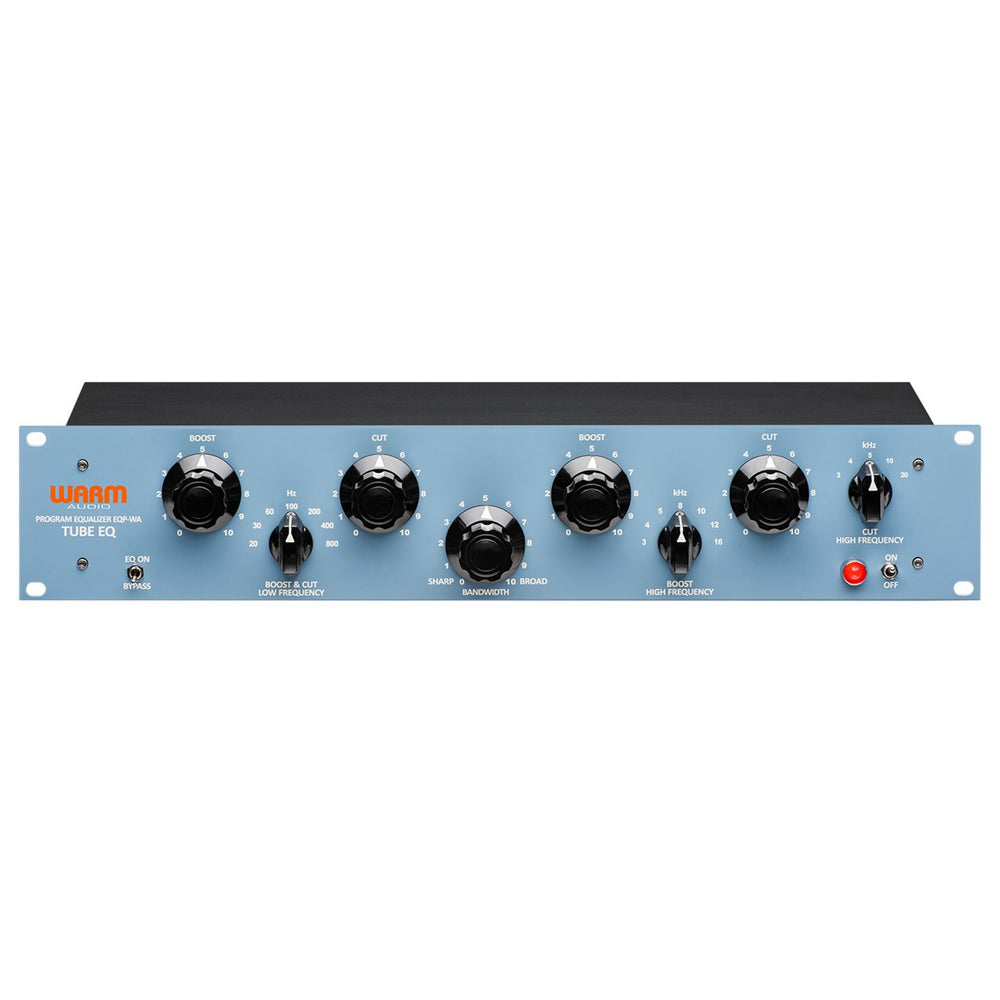

Warm Audio EQP-WA Classic Pultec Tube Equalizer
The EQP-WA is a re-creation of the most renowned tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes thatās nearly impossible to achieve inside-the-box. We are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.
Key Features
- UTILIZES PREMIUM GRADE INPUT AND OUTPUT CINEMAG USA TRANSFORMERS
- TUBE EQUALIZER BASED ON THE CLASSIC āPULTECā EQP-1A
- PREMIUM HIGH VOLTAGE 12AX7 AND 12AU7 TUBES
- CINEMAG INDUCTOR EQ SECTION
- EQ SECTION IS BYPASSABLE - SIGNAL STILL PASSES THROUGH TUBES AND TRANSFORMERS FOR WARMING EFFECT
Technical Specifications
XLR AND TRS TRANSFORMER BALANCED OUTPUTS
FLAT FREQUENCY RESPONSE
FROM 20 HZ - 50 KHZ
XLR AND TRS TRANSFORMER BALANCED INPUTS
NO INSERTION LOSS
LOSS RESTORED BY TUBE AMPLIFIER
5 ADDED FREQUENCY POINTS FOR GREATER FLEXIBILITY
SWITCHABLE 115/230 VOLT IEC POWER INLET
DIMENSIONS
19 X 3.5 X 6 INCHES - 2RU RACK MOUNTABLE
LOW FREQUENCY BOOST
20, 30, 60, 100, 200, 400, 800 HZ - 12 DB
LOW FREQUENCY CUT
20, 30, 60, 100, 200, 400, 800 HZ - 18 DB
HIGH FREQUENCY BOOST
3, 4, 5, 8, 10, 12, 16 KHZ - 18 DB
HIGH FREQUENCY CUT
3, 4, 5, 10, 20 KHZ - 14 DB
BOOST AND CUT CONTROLS CAN BE USED SIMULTANEOUSLY FOR PHASE EFFECT
