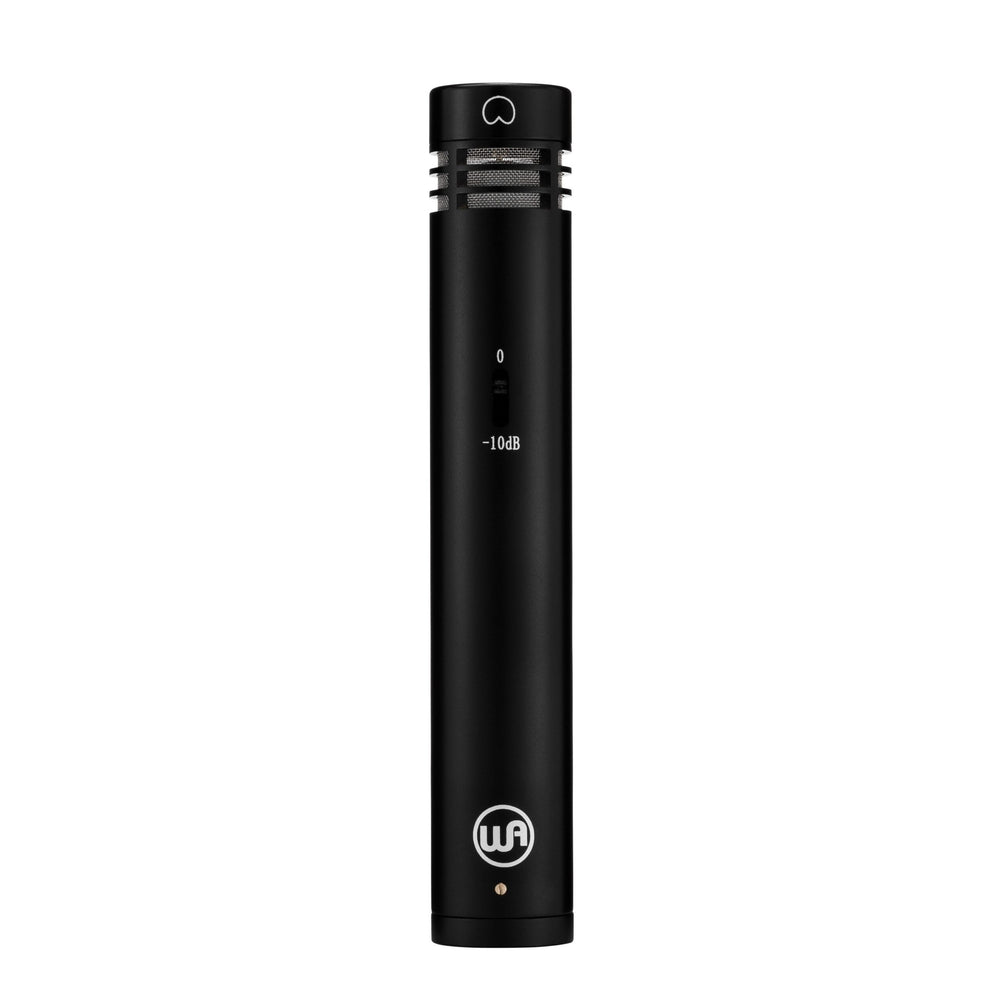

Warm Audio WA-84-C-B Small Diaphragm Condenser Microphone, Black
Warm Audio WA-84-C-B Small Diaphragm Condenser Microphone, Black
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources. The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound.
Key Features
- UTILIZES A CINEMAG USA TRANSFORMER
- DIRECTIONAL PATTERN: CARDIOID
- FULLY DISCRETE VINTAGE-STYLE SIGNAL PATH
- VINTAGE CAPSULE REPRODUCTION
- PACKAGE INCLUDES: MICROPHONE, CARDIOID CAPSULE, SHOCK-MOUNT, MIC CLIP, WINDSCREEN AND CARRYING CASE
- 48V PHANTOM POWERED
Technical Specifications
FREQUENCY RANGE
20HZ - 20KHZ
SENSITIVITY
-39DB OR 11MV/PA @ 1KHZ
OUTPUT IMPEDANCE
200
RATED LOAD IMPEDANCE
1K
PAD
0DB OR -10DB
MAXIMUM SPL
123/133DB @ 1KHZ, 0.5% THD, 0/-10DB
S/N RATIO
78DBA (IEC651)
EQUIVALENT NOISE
16DBA (IEC651)
DYNAMIC RANGE
107DBA (IEC651)
CONNECTOR
3-PIN GOLD-PLATED XLR
WEIGHT
122G EACH
FINISH
BLACK & NICKEL
