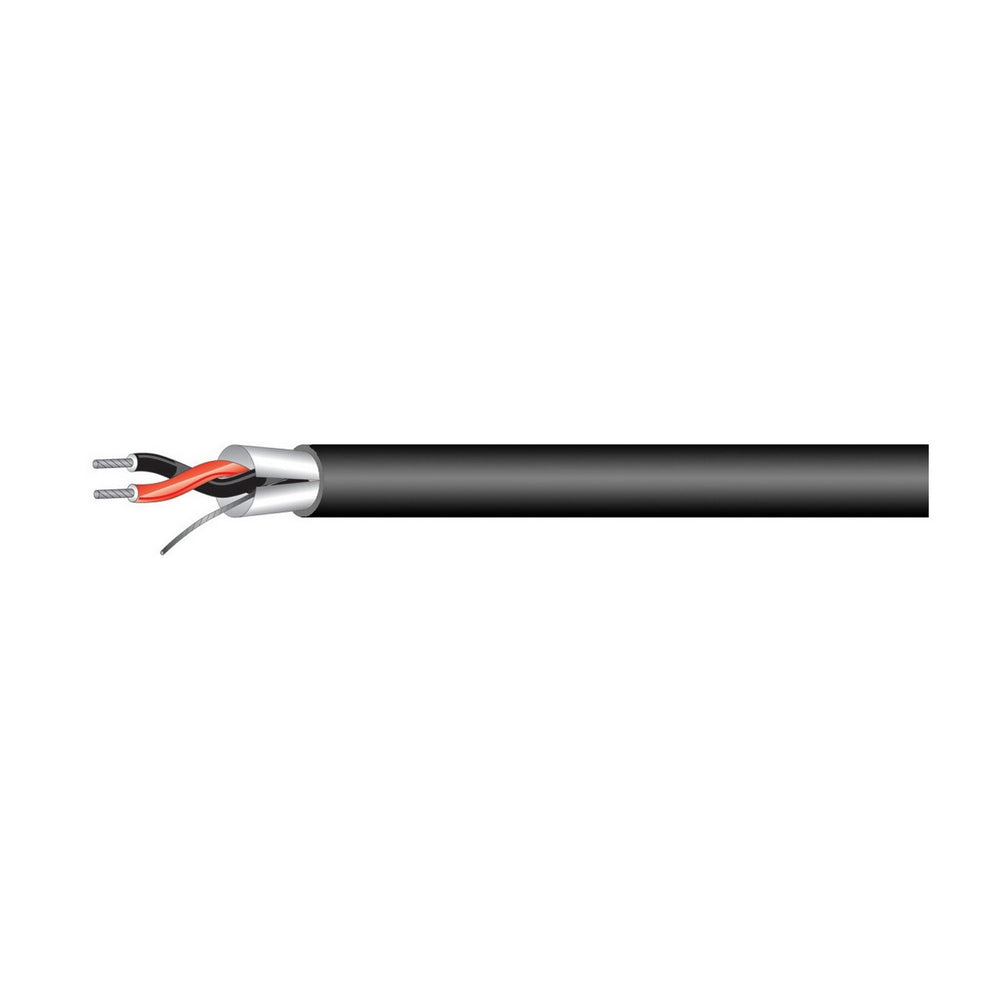

West Penn 454 1-Pair 22Awg CM Miniature Line Level Audio Cable, 1000 Foot, Black
454 1-Pair 22Awg CM Miniature Line Level Audio Cable 1000 Foot Black
Technical Specifications
Conductor
22 AWG Tinned Copper
Stranding
7x30
Insulation Material
Polypropylene
Insulation Thickness
0.008'' Nom.
Number of Conductors
2 (1 Pair)
Shield
100% Aluminum Polyester Foil
Drain
Stranded Tinned Copper
Jacket Material
PVC
Jacket Thickness
0.020'' Nom.
Overall Cable Diameter
0.135'' Nom.
Max.Capacitance Between Conductors @ 1 KHz
34 pf/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz
67 pf/ft Nom.
Approximate Cable Weight
16 Lbs/1M' Nom.
Flame Rating
UL 1685
