Whirlwind HBL2315 3-Pole 3-Wire 20A/125V Twist-Lock L5-20P Grounding Flanged Inlet
Whirlwind HBL2315 3-Pole 3-Wire 20A/125V Twist-Lock L5-20P Groundin...
Whirlwind HBL2315 3-Pole 3-Wire 20A/125V Twist-Lock L5-20P Grounding Flanged Inlet

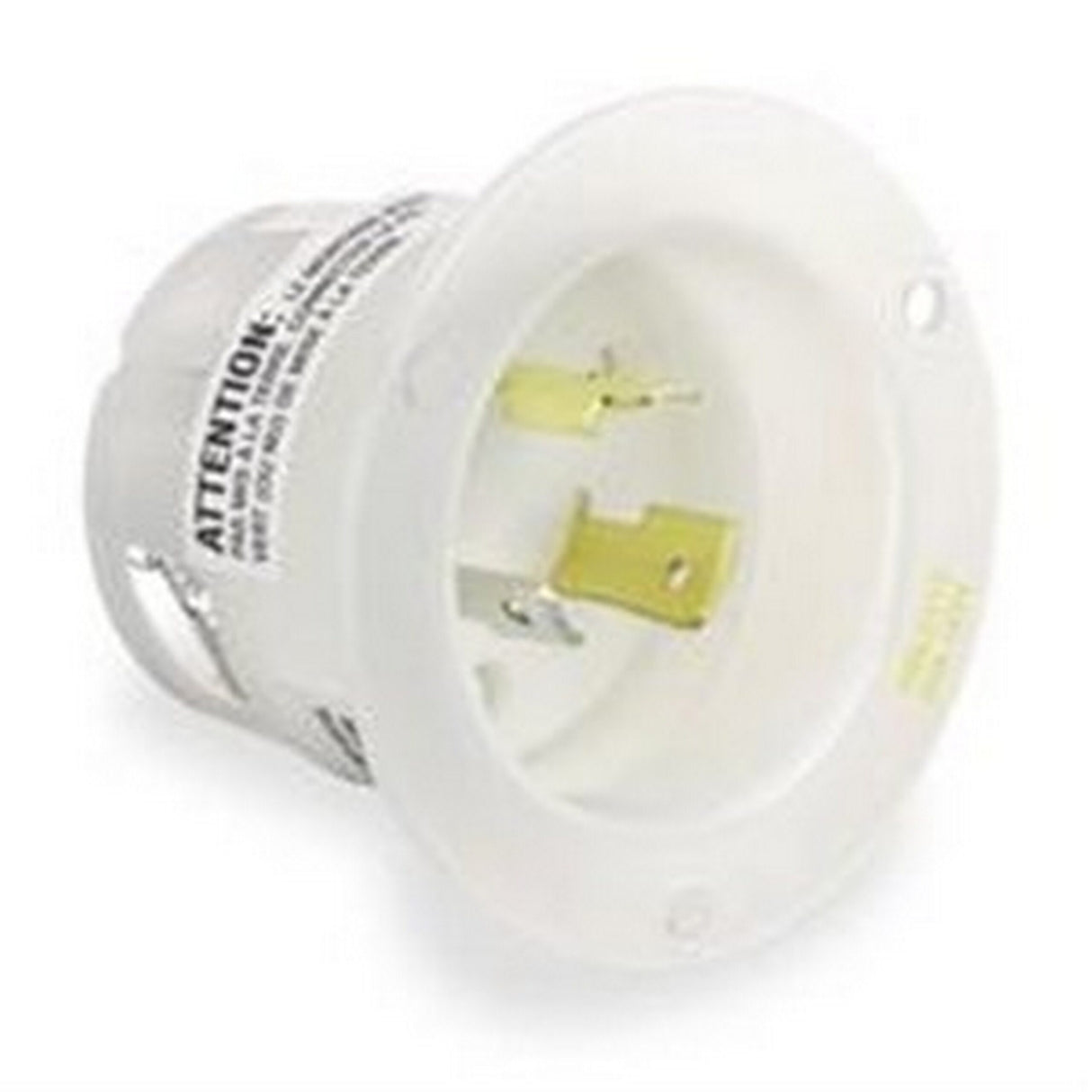

The HBL2315 is a 3-pole 3-wire 20A/125V Twist-Lock NEMA L5-20P Insulgrip Grounding Flanged Inlet, made of white nylon casing, back wired, brass blades, #10-32 brass Phillips/slotted/Robertson screw terminals.
Key Features
- HB or better as per UL94/CSA 22.2 No.0.17 Flammability test
- IP20 Moisture resistance rating
- -40 to 75C Operating temperature range
- Impact-resistant thermoplastic construction
- Back wired terminations for ease of installation
- Mounting screws included
- Product family: Hubbell
- Type: Chassis
Technical Specifications
Connector Body Material
Nylon (Polyamide) Body
Connector Color
White
Connector Type
Power Entry
Current Rating
20A
SVHC
To Be Advised
Series
Twist-Lock
Voltage Rating VAC
125V
