Whirlwind HBL2511 4-Pole 5-Wire L21-20P Twist-Lock Plug
Whirlwind HBL2511 4-Pole 5-Wire L21-20P Twist-Lock Plug
Whirlwind HBL2511 4-Pole 5-Wire L21-20P Twist-Lock Plug

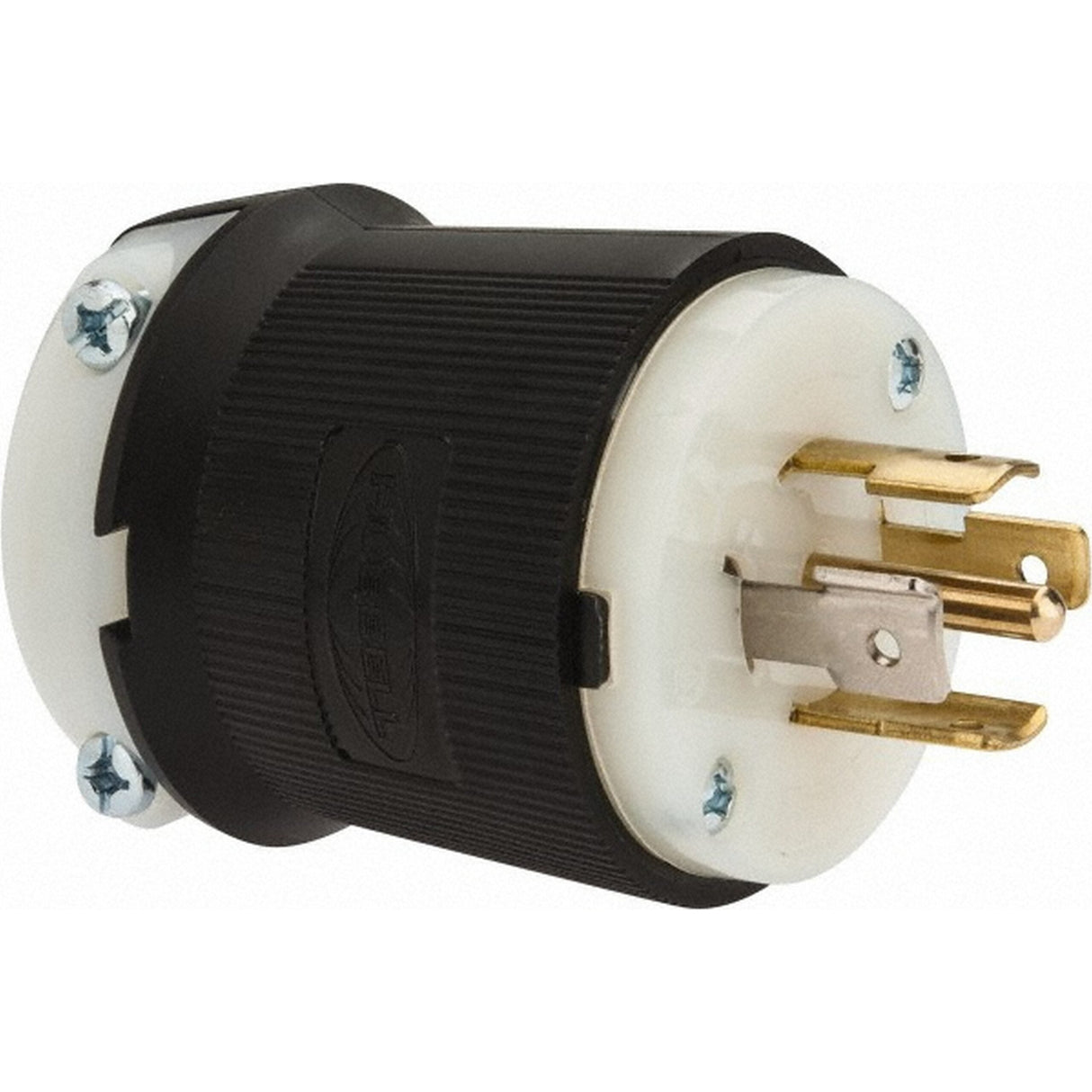

The HBL2511 is a 4-pole 5-wire NEMA L21-20P Twist-lock Plug with nylon housing, natural nylon blade holder and polycarbonate retainer. Maximum 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Key Features
- Nylon cord clamp
- Brass blade
- Steel-nickel-plated terminal clamp
- #10-32 Brass multi-drive terminal screw
- #10-32 Brass multi-drive ground screw
- Withstands 2000V minimum dielectric voltage
- IP20 Protection rating
- Product family: Hubbell
- Type: Inline
Technical Specifications
Connector Body Material
Nylon (Polyamide) Body
Connector Color
Black, White
Connector Type
Power Entry
Current Rating
20A
SVHC
To Be Advised
Series
Insulgrip
Voltage Rating VAC
208V
