Whirlwind HBL2811 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L21-30R Grounding Plug
Whirlwind HBL2811 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L2...
Whirlwind HBL2811 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L21-30R Grounding Plug

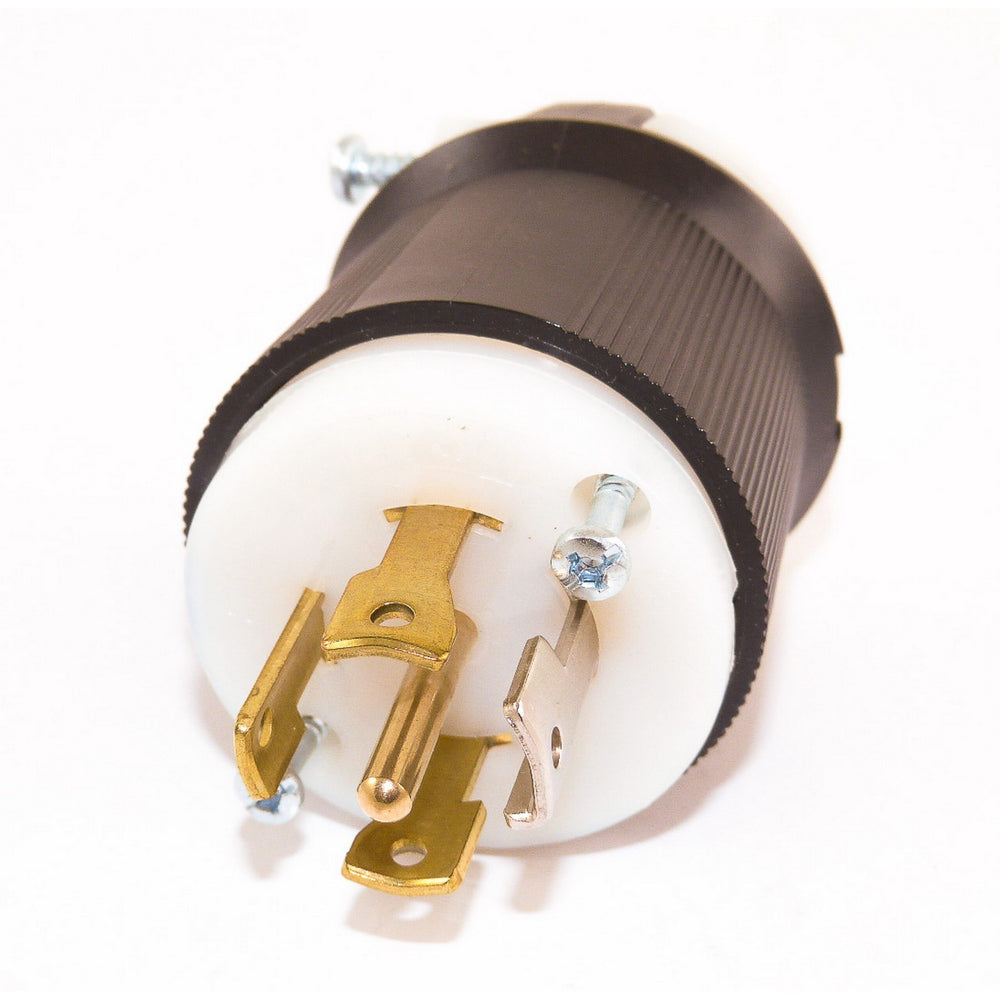

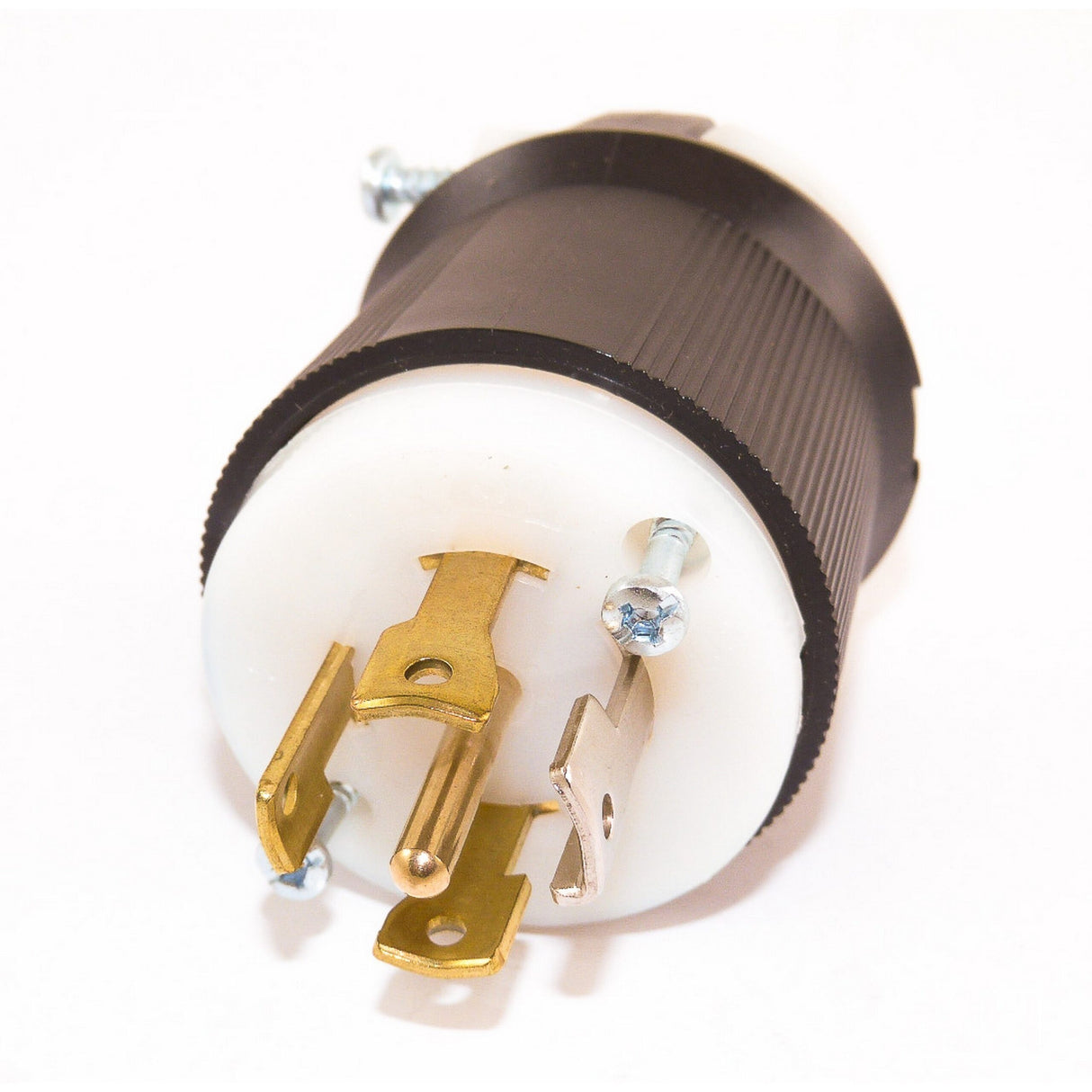

The HBL2811 is a 4-pole 5-wire 3-phase 30A 120/208VAC Y-type Twist-Lock NEMA L21-30R watertight Safety-Shroud Grounding Plug, made of black and white nylon body, brass blades, #10-32 brass Phillips/slotted/Robertson screw terminals and 9 to 29mm cord diameter.
Key Features
- UL 498 listed
- HB or better per UL94/CSA 22.2 No.0.17 Flammability test
- IP20 Moisture resistance rating
- -40 to 75C Operating temperature range
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- Product family: Hubbell
- Type: Inline
Technical Specifications
Connector Body Material
Nylon (Polyamide) Body
Connector Color
Black, White
Connector Type
Power Entry
Current Rating
30A
SVHC
To Be Advised
Series
Insulgrip
Voltage Rating VAC
208V
