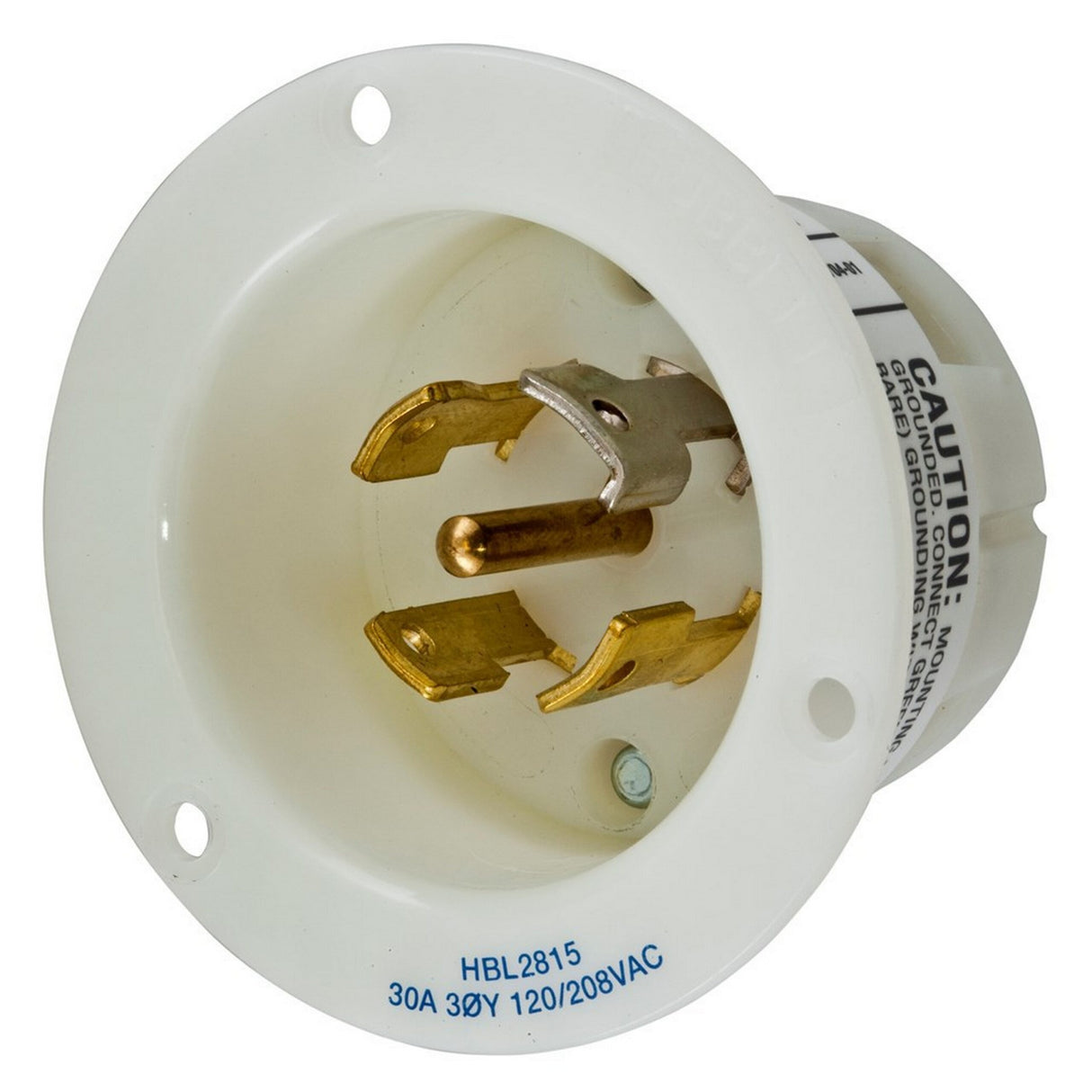

Whirlwind HBL2815 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L21-30R Grounding Flanged Inlet
Whirlwind HBL2815 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L2...
Whirlwind HBL2815 4-Pole 5-Wire 30A 120/208VAC Y-Type Twist-Lock L21-30R Grounding Flanged Inlet
The HBL2815 is a 4-pole 5-wire 3-phase 30A 120/208VAC Y-type Twist-Lock NEMA L21-30R Insulgrip Grounding Flanged Inlet, made of white nylon casing, back wired, brass blades, #10-32 brass Phillips/slotted/Robertson screw terminals.
Key Features
- UL 498 listed
- HB or better per UL94/CSA 22.2 No.0.17 Flammability test
- IP20 Moisture resistance rating
- -40 to 75C Operating temperature range
- Impact-resistant thermoplastic construction
- Back wired terminations for ease of installation
- Mounting screws included
- Product family: Hubbell
- Type: Chassis
Technical Specifications
Connector Body Material
Nylon (Polyamide) Body
Connector Color
White
Connector Type
Power Entry
Current Rating
30A
SVHC
To Be Advised
Series
Twist-Lock
Voltage Rating VAC
208V
