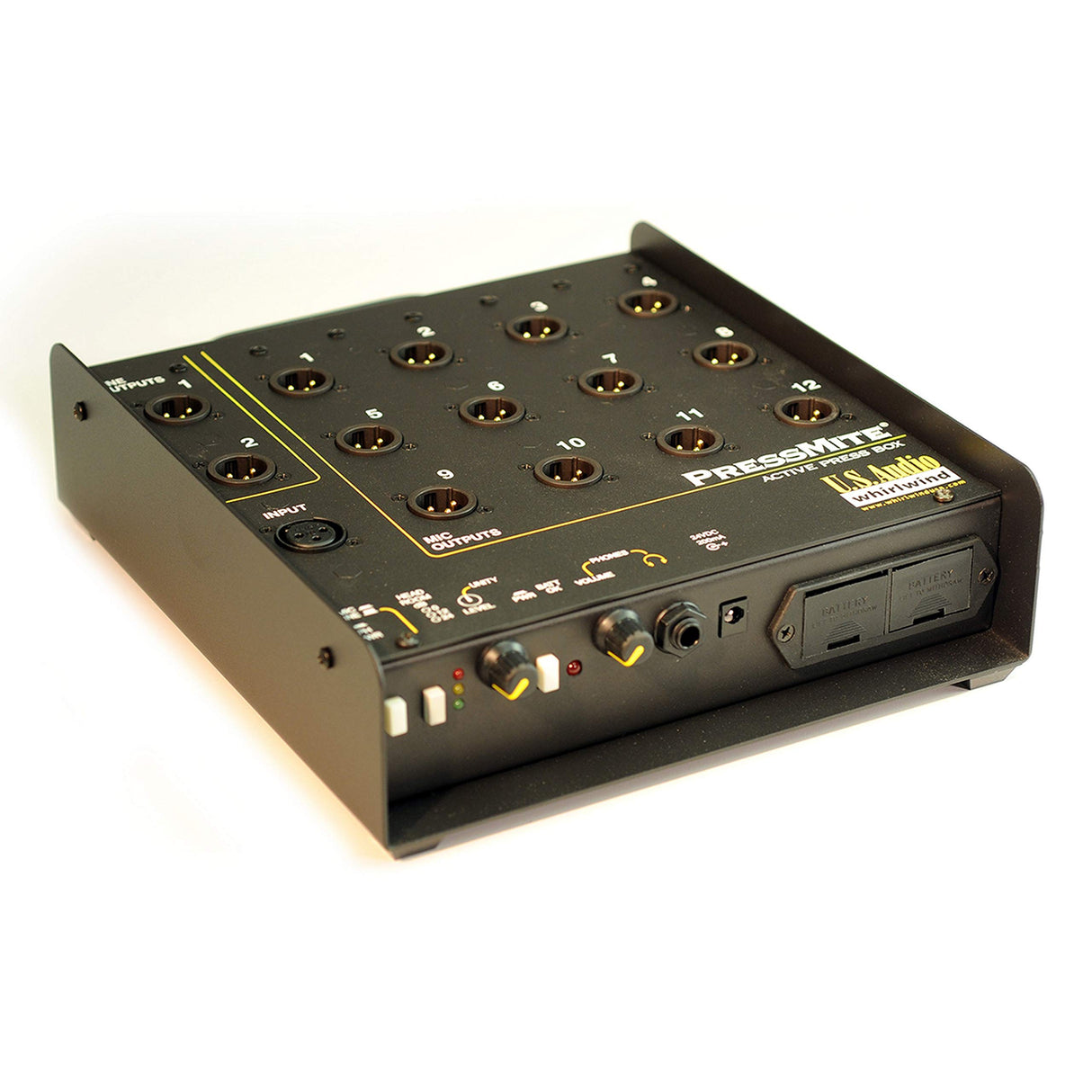

Whirlwind PRESSMITE Active Press Box
Whirlwind PRESSMITE Active Press Box
Free Shipping
Whirlwind PRESSMITE Active Press Box
It provides a 60 dB gain adjustment for one mic or line input. The PressMite also features a built-in headphone amp. Two alkaline 9 V batteries provide power for typically more than 8 hours of continuous operation, monitored by a Battery OK LED. The batteries are easily replaced via side-mount trays. A 120 VAC / 24 VDC power adapter (model PS242.1*) is included.
*PS24 on pre 2010 models
In MIC input mode, 18V phantom power is selectable and a three segment LED headroom display speeds level adjustment. If more outputs are needed, PB Series Press Boxes can be connected to the line outputs to provide up to 48 additional mic outputs. The PressMite's box is built to withstand the abuse of public events.
Technical Specifications
Frequency Response
100 Hz-6 kHz -0.3 dB, 15Hz-20kHz -3.0 dB
Input Impedance
Mic: 1.5 kOhms; Line: 40 kOhms
Max Input Level
Mic: -14 dBu; Line: +30 dBu
Output Impedance
Mic 150 Ohms; Line 600 Ohms
Max Output Level
Mic -17 dBu Mic Outputs; Line +12 dBu
Total Harmonic Distortion
0.063% at 1 kHz (unity gain)
Rise Time
26 uS
Phase Shift
-0.8 at 1 kHz (unity gain)
Intermodulation Distortion
0.08% (unity gain, Mic mode)
CMR at 60 Hz
Mic 75 dB; Line 60 dB
Mic Outputs
65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs
Line Outputs
Greater than 77 dB
Power Requirements
(2) 9 V alkaline batteries or 24 Volt external DC (120 VAC / 24 VDC power adapter included)
