Williams AV IR SY6 Portable Infrared Courtroom System

Williams AV IR SY6 Portable Infrared Courtroom System

A portable system specifically for courtrooms featuring the IR T2 infrared transmitter.

The IR T2 is a commercial-grade, medium-area infrared transmitter. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness - all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

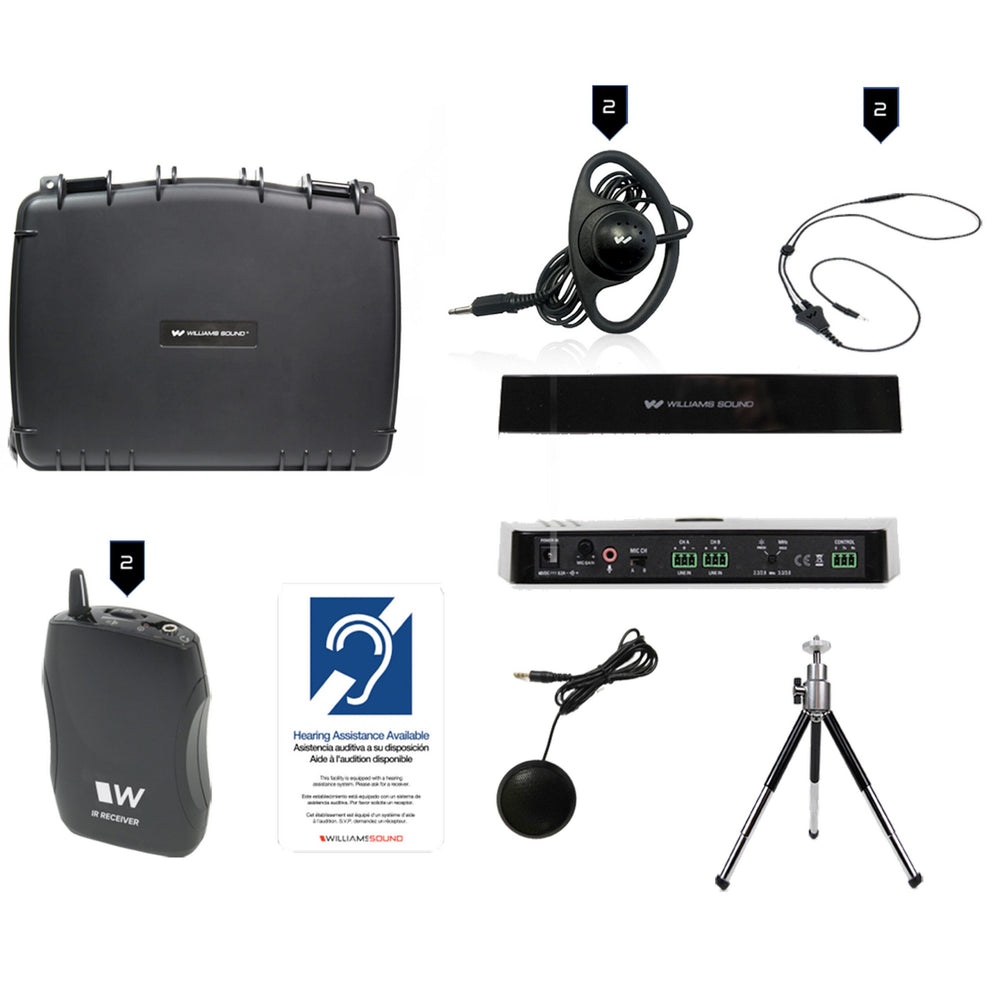

System Includes
(1) IR T2 Medium-area Infrared Transmitter
(2) WIR RX22-4 Four-channel Infrared Receivers
(1) MIC 149 Omnidirectional Conference Microphone
(2) EAR 022 Surround Earphones
(2) NKL 001 Neckloops
(2) BAT 001-2 AA Alkaline Batteries
(1) IDP 008 ADA Wall Plaque
(1) CCS 056 Carry Case
(1) STD 007 Table-top Tripod
(1) TFP 061 Power Supply
(1) WCA 135 WC 12-foot Mono Cable

Technical Specifications

Dimensions
9.0” W (229 mm) x 3.8” D (97 mm) x 1.4” H (36 mm)
Weight
0.84 lb. (0.38 kg)
Color
Black
Power Supply
TFP 061 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
DC Power Input
2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
Power Indicator
Green LED
Sleep/Power Save Mode
Shuts off carrier when no audio present for 12 minutes
Modulation
FM Wideband, +/-50 kHz deviation max, 50 uS pre-emphasis
Transmit Frequencies
2.3, 2.8, 3.3, 3.8 MHz
Coverage Area
Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver
Audio Inputs
Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
Audio Indicators
One yellow LED per channel. Lights up and stay on steady with minimum audio level.
Signal-to-Noise Ratio
70 dB (line input)
Frequency Response
95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
Operating Requirements
32-122F (0-50C)
Mounting Kit
Wall or Ceiling mount: BKT 024 Omnidirectional mount
Compatible Receivers
WIR RX22-4, WIR RX18, IR R1
Warranty
5 years
Approvals/Regulatory Compliance
CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE

MIC 149
Type
Electret
Size
60mm diameter x 16mm height
Color
Black
Plug
3.5mm stereo
Cord
39” (99 cm)
Output Impedance
1500 OHM
Polar Pattern
Omnidirectional
Bias Power Requirement
1.0-10VDC
Sensitivity
-40 dB +/- 3 dB
Warranty
90 days

IR T2
Dimensions
9.0" W (229 mm) x 3.8" D (97 mm) x 1.4" H (36 mm)
Weight
0.84 lb. (0.38 kg)
Color
Black
Power Supply
TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
DC Power Input
2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
Power Indicator
Green LED
Sleep/Power Save Mode
Shuts off carrier when no audio present for 12 minutes
Modulation
FM Wideband, +/-50 kHz deviation max, 50 uS pre-emphasis
Baseband Frequencies
2.3, 2.8, 3.3, 3.8 MHz
Coverage Area
Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver Up to 11,500 sq. ft (1,068 sq. m) with the RX20 receiver
Microphone gain adjust
Rotary 10 dB range
Microphone channel switch
Selects microphone input to Ch. A or Ch. B
Microphone input
3.5 mm, stereo jack with signal and bias connected to tip, electret microphone compatible (6 VDC bias supply with 2.7 k ohm series resistor)
Audio Inputs
Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
Audio Indicators
One yellow LED per channel. Lights up and stay on steady with minimum audio level.
Signal-to-Noise Ratio
70 dB (line input)
Frequency Response
95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
Operating Requirements
32-122F (0-50C)
Mounting Kit
Wall or Ceiling mount: BKT 024 Omnidirectional mount
Compatible Receivers
WIR RX22-4, IR RX20
Warranty
5 years
Approvals/Regulatory Compliance
CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE

WIR RX22-4N
Receiver Style
Body-Pack, dual-lens detector, lanyard
Size
4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm)
Weight
4.5 oz (127 g) with batteries
Color and Material
Black
Lanyard
3 ft (0.91 m), allows receiver to be worn around the neck
Operating Temperature
-10 C to +50 C
Battery Type
2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life
Alkaline: 60 hours, NiMH: 30 hours/charge
Battery Drain
25 mA, nominal
Charging Contacts
For use only with CHG 3512
Carrier Frequency
Channel 1: 2.3 MHz, Channel 2: 2.8 MHz Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis
50 uS
FM Deviation
+/-50 kHz
Signal-to-Noise Ratio
60 dB min.
Squelch
Receiver squelches (mutes) at 28 dB S/N ratio
Frequency Response
25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion
Less than 1%, electrical response
Controls
ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Indicators
Red LED “ON" indicator, flashes to indicate Low battery
Audio Output Jacks
3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power
15 mW max at 32 OHM
Acoustic Output
125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Sensitivity
Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Approvals
CE, FCC, RoHS, WEEE
Warranty
5 years on receiver, 90 days on accessories
Compatible Headphones/Earphones
Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
