Williams AV POE KT1 Infrared Transmitter POE Wiring Kit for IR T2
Williams AV POE KT1 Infrared Transmitter POE Wiring Kit for IR T2
Williams AV POE KT1 Infrared Transmitter POE Wiring Kit for IR T2
Using Williams Sound’s passive POE injector
kits (POE KT1 and POE KT2) allows the installer of an IR T2 to provide POE power and one of the following three options:
1 channel of balanced line level audio
1 or 2 channels of unbalanced line level audio
RS-232 control and monitoring signal
CAT5 cable contains four twisted pairs of wires, two of which are used for POE, and the remaining wires can be used for the additonal features.
System Includes
This kit should be used for applications using the power supply included with the IR T2 (TFP 057). The kit includes:

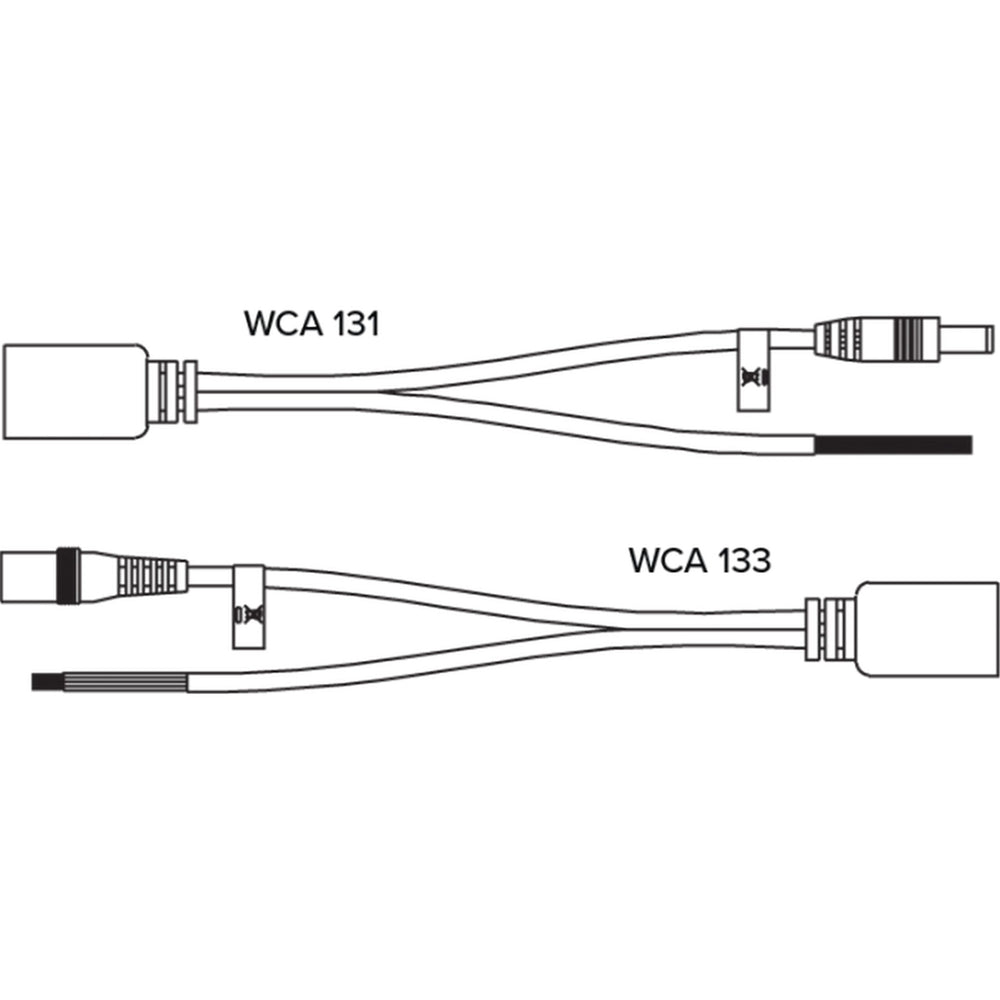

(1) WCA 131
(1) WCA 133
