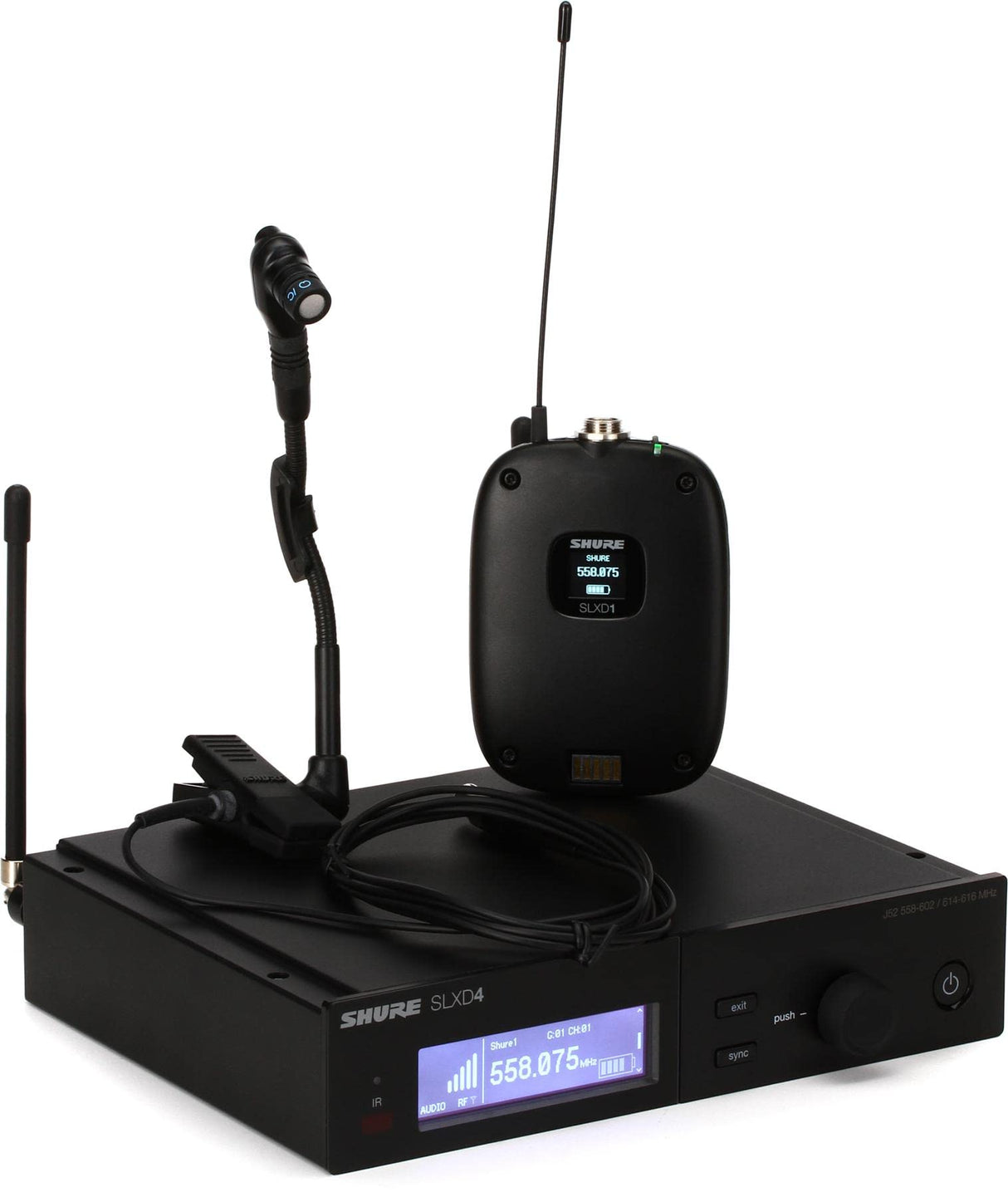

Shure SLXD14/98H Wireless Beta 98H/C Gooseneck Microphone System - G58: 470 - 514 MHz

Shure SLXD14/98H Wireless Beta 98H/C Gooseneck Microphone System

Introducing the state-of-the-art Shure SLXD14/98H Wireless System – your ultimate solution for superior audio performance. Crafted for those who demand excellence, this system features the renowned Beta 98H/C Miniature Instrument Microphone paired with the reliable SLXD1 transmitter. Whether you're involved in day-long presentations or electrifying nighttime performances, this system provides transparent, 24-bit digital audio that meets the highest standards.

With the capability to operate up to 32 compatible systems per 44 MHz band, the Shure SLXD14/98H System is set to revolutionize your audio experience. Enjoy hassle-free setup with optional rechargeability accessories, ensuring you can achieve wireless excellence in any setting. The package includes the SLXD4 dual-channel receiver, SLXD1 bodypack transmitters, and a Beta 98H/C Miniature Cardioid Condenser Instrument Microphone with essential accessories like a windscreen, in-line preamplifier, antenna, and rackmount components.

The Shure SLXD14/98H System is an innovation in wireless technology. It provides the exceptional sound clarity and reliability needed by professionals in diverse environments, making sure your audience always gets the best auditory experience. Perfect for various applications, from professional audio setups to musical performances, this system is your go-to for high-quality sound.

Key Features

• High-quality wireless system optimized for superior audio performance.
• Transparent 24-bit digital audio ensuring pristine sound clarity.
• Wide 20 Hz to 20 kHz frequency range, dependent on microphone.
• Outstanding dynamic range of 118 dB for superior sound quality.
• Enhanced stability with digital predictive switching diversity.
• 44 MHz tuning bandwidth, dependent on region.
• Supports 32 available channels per frequency band, region-dependent.
• Accommodates up to 10 compatible systems per 6 MHz TV band and 12 per 8 MHz band.
• Seamless transmitter-receiver pairing via IR scan and sync features.
• Auto channel scan function for simplified setup.
• Ability to link multiple receivers using an Ethernet port.
• Integration with Shure Wireless Workbench control software for enhanced control.
• Remote control capability via ShurePlus Channels app.
• Third-party setup and control enabled through Ethernet connectivity.
• Intuitive, high-contrast LCD interface for easy operation.
• Guided setup mode available in each receiver.
• Powered by 2 AA batteries or an optional Shure SB903 rechargeable battery.

Specifications

• Working Range: 100 m (328 ft), variable based on RF signal conditions.
• RF Tuning Step Size: 25 kHz, varies by region; JB band: 125 kHz
• Image Rejection: >70 dB, typical
• RF Sensitivity: -97 dBm at 10-5 BER
• Latency: 3.2 ms
• High-Pass / Low Cut Filter: 150 Hz @ -12 dB/oct
• Audio Frequency Response: 20 Hz– 20 kHz (+1 -2 dB)
• Audio Dynamic Range: 118 dB at 1% THD, A-weighted, typical
• Total Harmonic Distortion: <0.02%
• System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• SLXD1 Bodypack Transmitter Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions: 98 x 68 x 25.5 mm (3.86 x 2.68 x 1 in.), H x W x D
• Weight: 89 g
• Housing: PC/ABS
• Connector: 4-Pin male mini connector (TA4M)
• Impedance: 1 MΩ
• Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
• Preamplifier Equivalent Input Noise (EIN): -118 dBV
• Antenna Type: 1/4 wave
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure proprietary digital
• Power: 1 mW or 10 mW
• SLXD4 / SLXD4D Rack Receiver Dimensions: SLXD4: 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D; SLXD4D: 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
• Weight: SLXD4: 816 g, without antennas; SLXD4D: 1451 g, without antennas
• Housing: Galvanized Steel
• Power Requirements: 15 V DC @ 600 mA, supplied by external power supply (tip positive)
• Spurious Rejection: >75 dB, typical
• Connector Type: BNC
• Impedance: 50 Ω
• Phantom Power Protection: 1/4" (6.35 mm): Yes; XLR: Yes
• Gain Adjustment Range: -18 to +42 dB in 1 dB steps
• Configuration: 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground); XLR: Balanced (1=ground, 2=audio +, 3=audio -)
• Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced); XLR (line): 400 Ω (200 Ω Unbalanced); XLR (mic): 150 Ω
• Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single); XLR: LINE setting = +15 dBV, MIC setting = -15 dBV
• Mic/Line Switch: 30 dB pad
• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
• Beta 98H/C Type: Electret Condenser
• Frequency Response: 20 to 20,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 150 Ω
• Sensitivity: at 1 kHz, open circuit voltage -56 dBV/Pa (1.6 mV)
• Maximum SPL (1 kHz at 1% THD) 1000 Ω load: 155 dB SPL typical
• Equivalent Output Noise: A-weighted 31 dB SPL (typical)
• Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 63 dB
• Dynamic Range (at 1 kHz, 1000 Ω load): 124 dB, 132 dB
• Clipping Level at 1% THD: 3 dBV (1.4 V)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements: 11 to 52 V DC phantom power

Package Contents

• SLXD4 Dual-Channel Receiver
• SLXD1 Bodypack Transmitters
• Beta 98H/C Miniature Cardioid Condenser Instrument Microphone
• Windscreen
• In-line Preamplifier
• Antenna
• Rackmount Accessories
• 2 AA Batteries
