Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System, Ba...

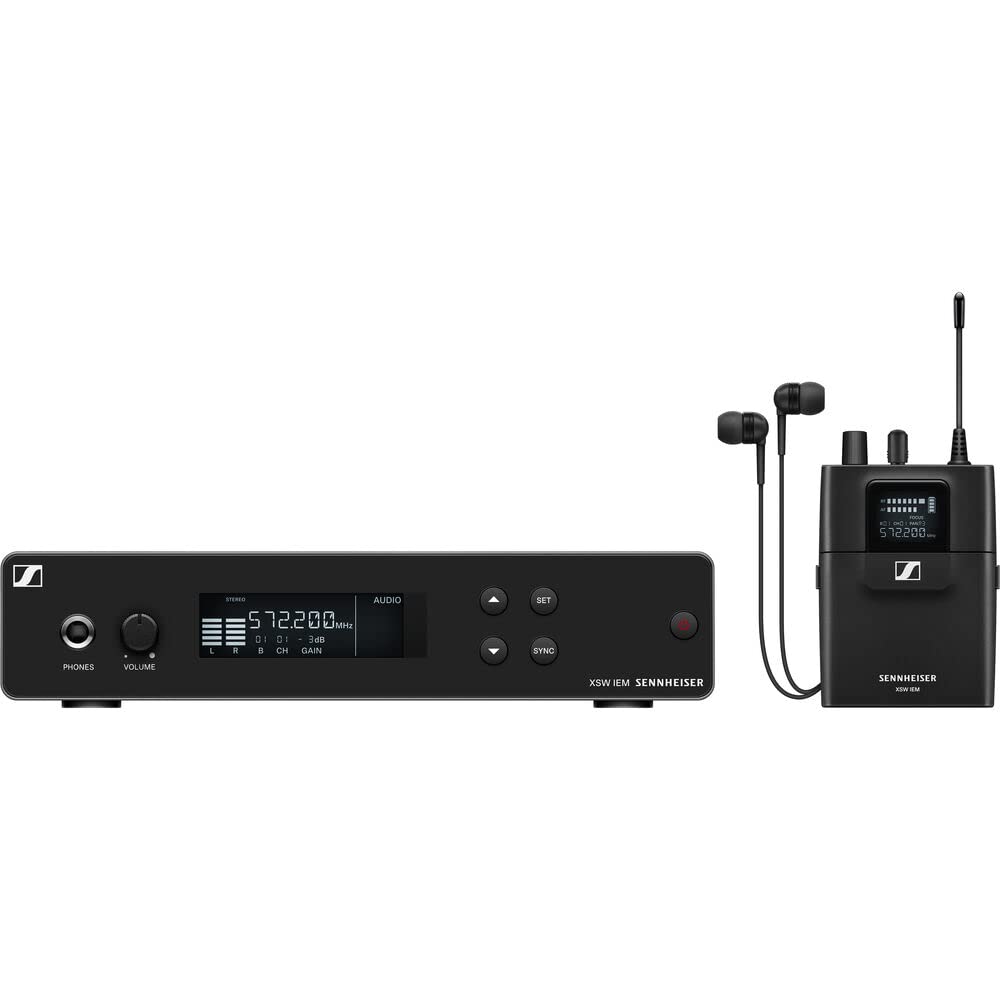

Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System, Band A, 476-500 MHz
The XS Wireless IEM set includes everything you need for an easy start with personal monitoring. Defining new standards for simple, flexible, and reliable wireless in-ear monitoring, this system is designed to help you level up your sound, regardless of your tech experience.
Whether a rehearsal or live performance, on a club stage or for a worship service: Benefit from renowned Sennheiser sound and solid pro-grade wireless UHF reliability packed in a convenient and rugged system - letting you focus on playing your best.
Key Features
- Complete starter set for in-ear monitoring
- Reliable, easy-to-manage wireless connection in the professional UHF range
- Full control with flexible audio modes
- Focus mode to balance your personal mix
- Advanced features like EQ and limiter
- Easy frequency presets or detailed manual control
- Infrared sensor to sync multiple receivers easily to one transmitter
Technical Specifications

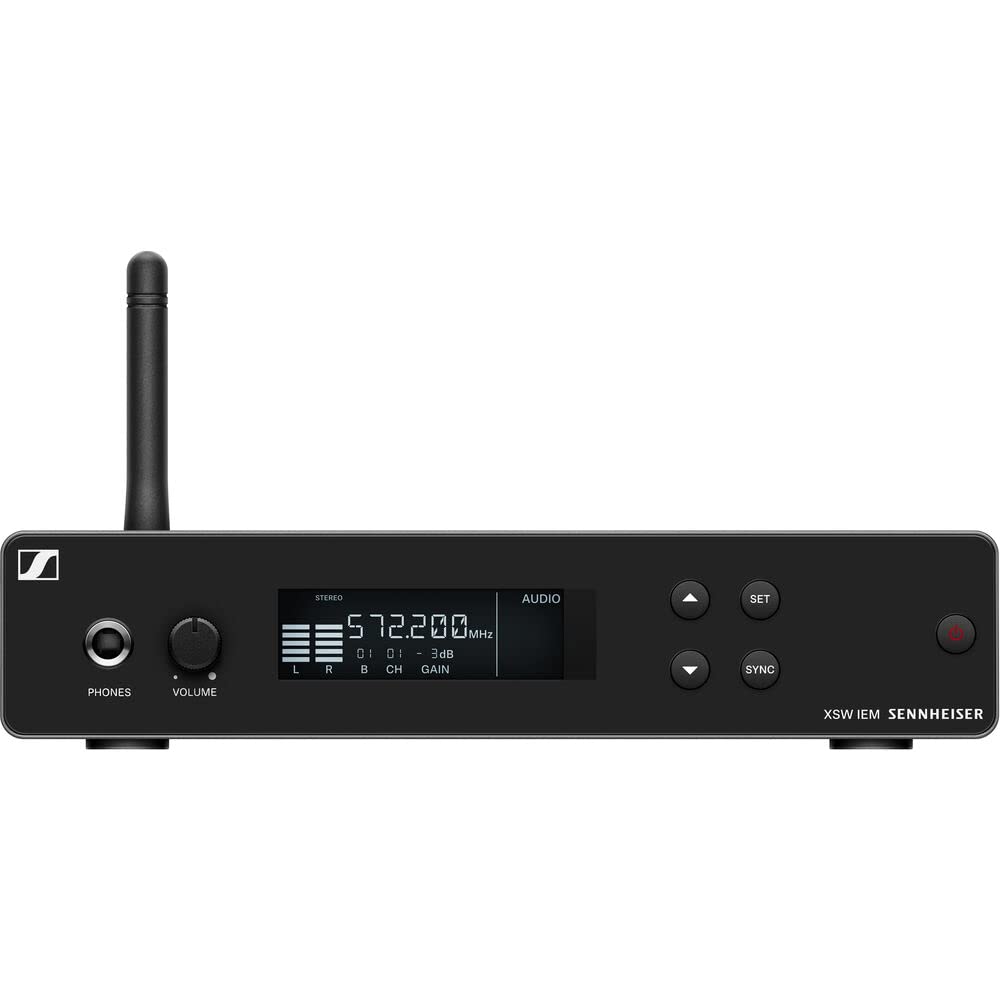

XSW IEM SR - Stereo Transmitter
Overall device
Temperature range
0 °C to +40 °C
Input rating
+12 V DC
Current consumption
Approx. 400mA (Depending on volume level)
Dimensions
Approx. 200 x 128 x 42 mm
Weight
Approx. 700 g
RF characteristics
Modulation
FM stereo
Frequency ranges (max. RF output power)
A: 476 - 500 MHz (30 mW)
B: 572 - 596 MHz (30 mW)
C: 662 - 686 MHz (30 mW)
E: 823.2 - 831.8 MHz (30 mW)
K: 925.2 - 937.3 MHz (10 mW)
Switching bandwidth
up to 24 MHz
Nominal/peak deviation
±15 kHz / ±24 kHz
Antenna output
BNC socket, 50 Ω
AF characteristics
AF frequency response
45 Hz to 15 kHz
AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II)
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Total harmonic distortion (THD)
<0.9 %
Signal-to-noise ratio (At nominal load and peak deviation)
≥88 dB
XSW IEM EK - Stereo Receiver
RF characteristics
Modulation
Wideband FM
Frequency ranges
A: 476 - 500 MHz
B: 572 - 596 MHz
C: 662 - 686 MHz
E: 823.2 - 831.8 MHz
K: 925.2 - 937.3 MHz
Switching bandwidth
up to 24 MHz
Nominal/peak deviation
±15 kHz / ±24 kHz
Squelch
10 µV, fixed
AF characteristics
Signal-to-noise ratio (1 mV, peak deviation)
≥88 dB
Total harmonic distortion (THD)
≤ 1 %
AF output level at 3.5 mm
2 x 1,25 Veff at 16 Ω
High Boost (EQ)
+10 dB at 13 kHz
Limiter
-10 dB
AF frequency response
45 Hz to 15 kHz
Cross talk (50 Hz - 10 kHz)
typically, 45 dB
Overall device
Temperature range
0 °C to +40 °C
Power supply
2 AA batteries, 1.5 V
Nominal voltage
3 V battery
Operating time
Approx. 6 hrs. (Depending on volume level)
Dimensions
Approx. 95 x 70 x 26 mm
Weight (incl. batteries)
Approx. 110 g
IE 4 - In-ear headphones
Transducer
dynamic
Frequency response
40-20.000 Hz
SPL (1 kHz, 1 mW)
106 dB
Nominal impedance
6 Ω
Cable length
1.4 m
Connector
3.5 mm (1/8“) stereo plug, gold-plated
Temperature
-5 °C (23 °F) to +50 °C (122 °F)
