AtlasIED MW100BP‑LM Wireless Lavalier Microphone System
The AtlasIED MW100BP‑LM is a professional wireless mic system featuring a bodypack transmitter, lavalier microphone, and true-diversity UHF receiver. With 100 selectable frequencies in the 566–585 MHz band and up to 100 m range (line-of-sight), it’s ideal for presentations, event venues, houses of worship, and lecture halls.
Receiver outputs include balanced XLR and unbalanced ¼″ mic/line, with dual BNC antennas and IR sync. The compact bodypack runs on AA batteries for up to 16 hours and features LCD channel/frequency readouts. The kit includes everything needed for quick setup, except rack hardware.
Key Features
- Operating Range: 100 m / 328 ft line-of-sight
- Channel Count: 100 UHF frequencies (566–585.5 MHz)
- Diversity Receiver: True diversity with dual antennas
- Outputs: XLR balanced + ¼″ TS unbalanced mic/line
- Bodypack Power: AA batteries, up to 16 hrs runtime
- Attainment: IR sync between transmitter & receiver
Technical Specifications
- Receiver Size: 7.87″ × 5.91″ × 1.73″ (200 × 150 × 44 mm)
- Receiver Weight: 1.39 lb (0.63 kg)
- Transmitter Size: 3.31″ × 2.52″ × 0.91″ (84 × 64 × 23 mm)
- Transmitter Weight: 0.17 lb (77 g)
- Mic Weight: 0.7 oz (20 g)
- Total Kit Weight: ~1.56 lb (0.71 kg)
- RF Power Output: 35 mW
- SNR: > 110 dB; THD < 0.5%
- Receiver Power: 12 VDC, 1.6 A
- Warranty: 12 months

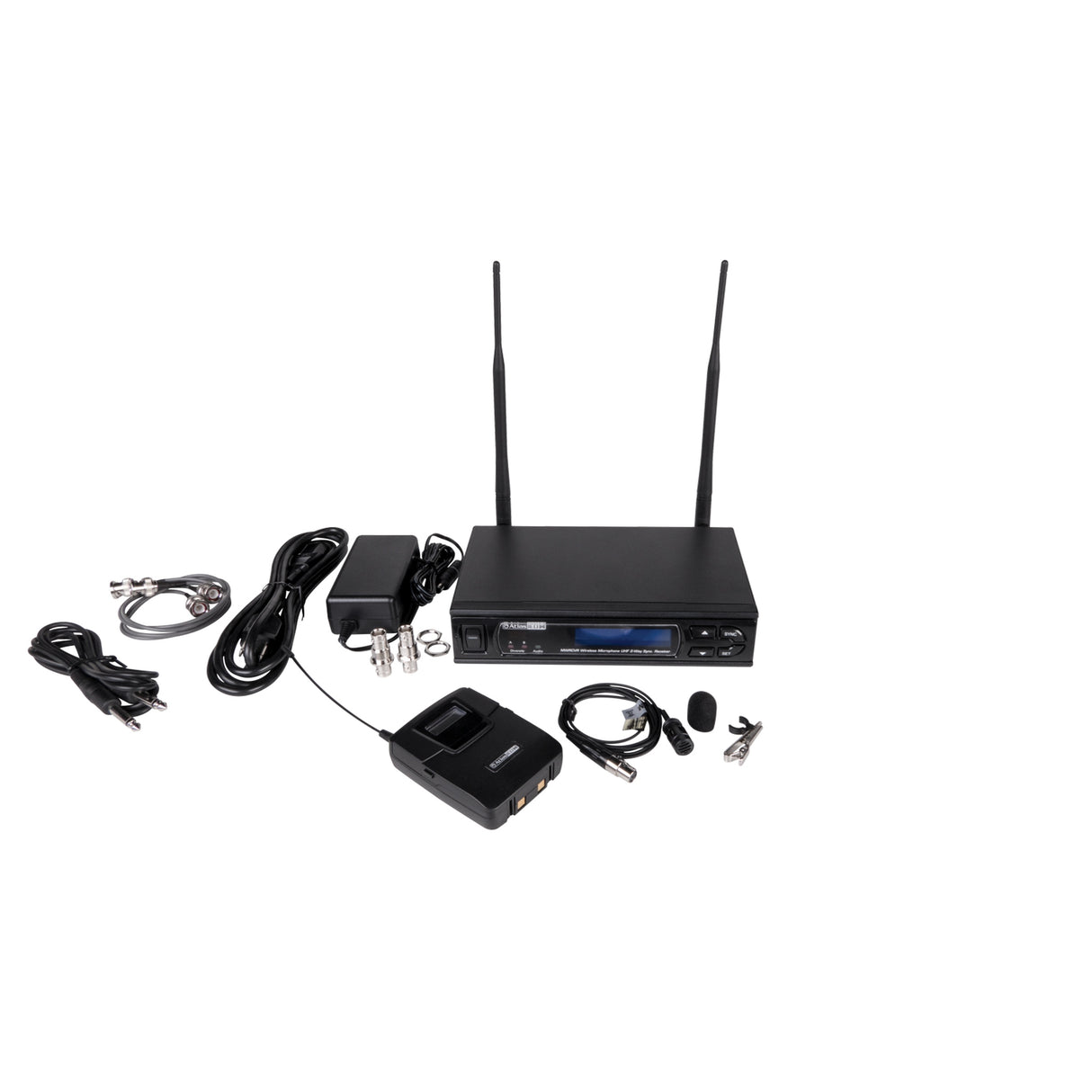

What’s Included

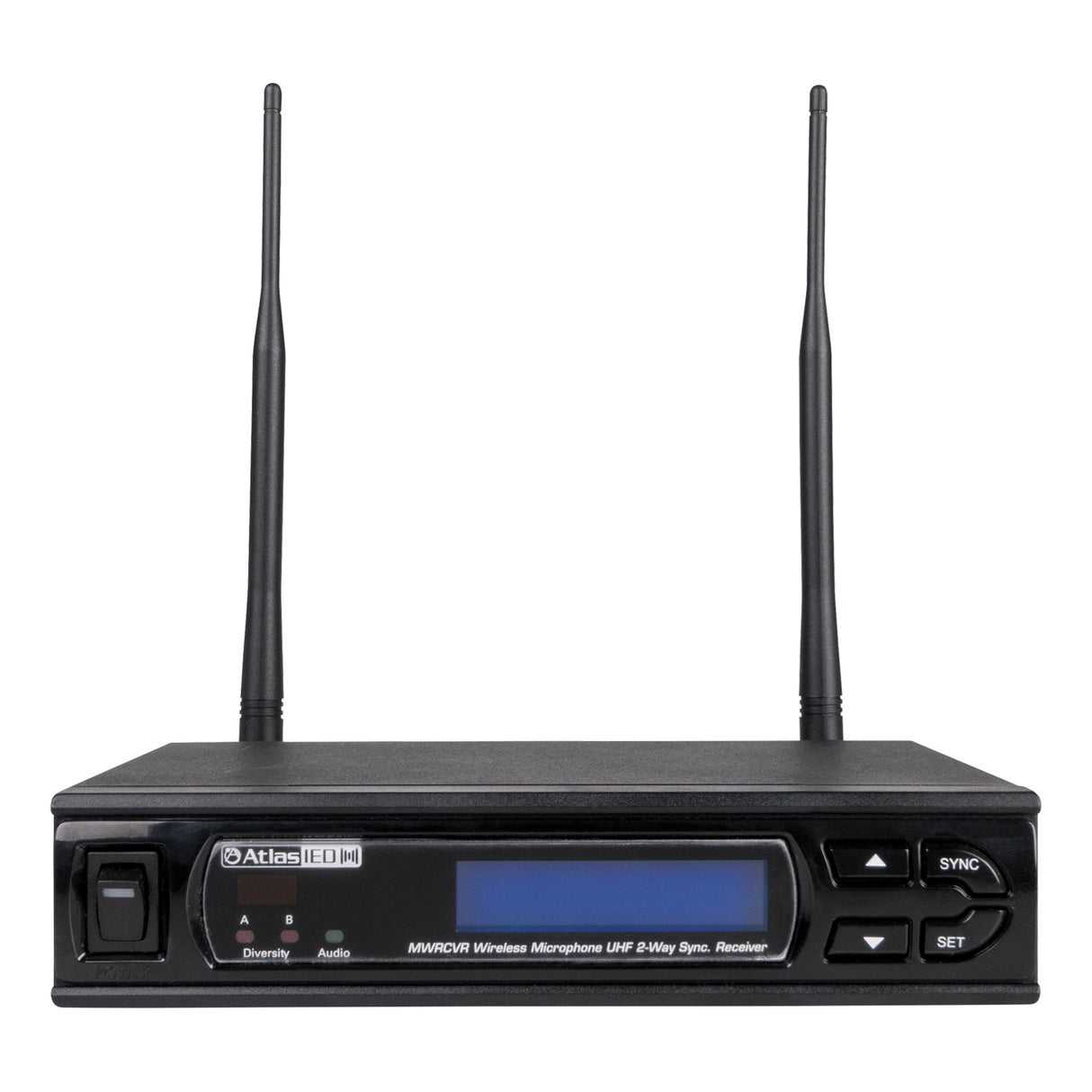

- MWRCVR true-diversity receiver w/ dual antennas

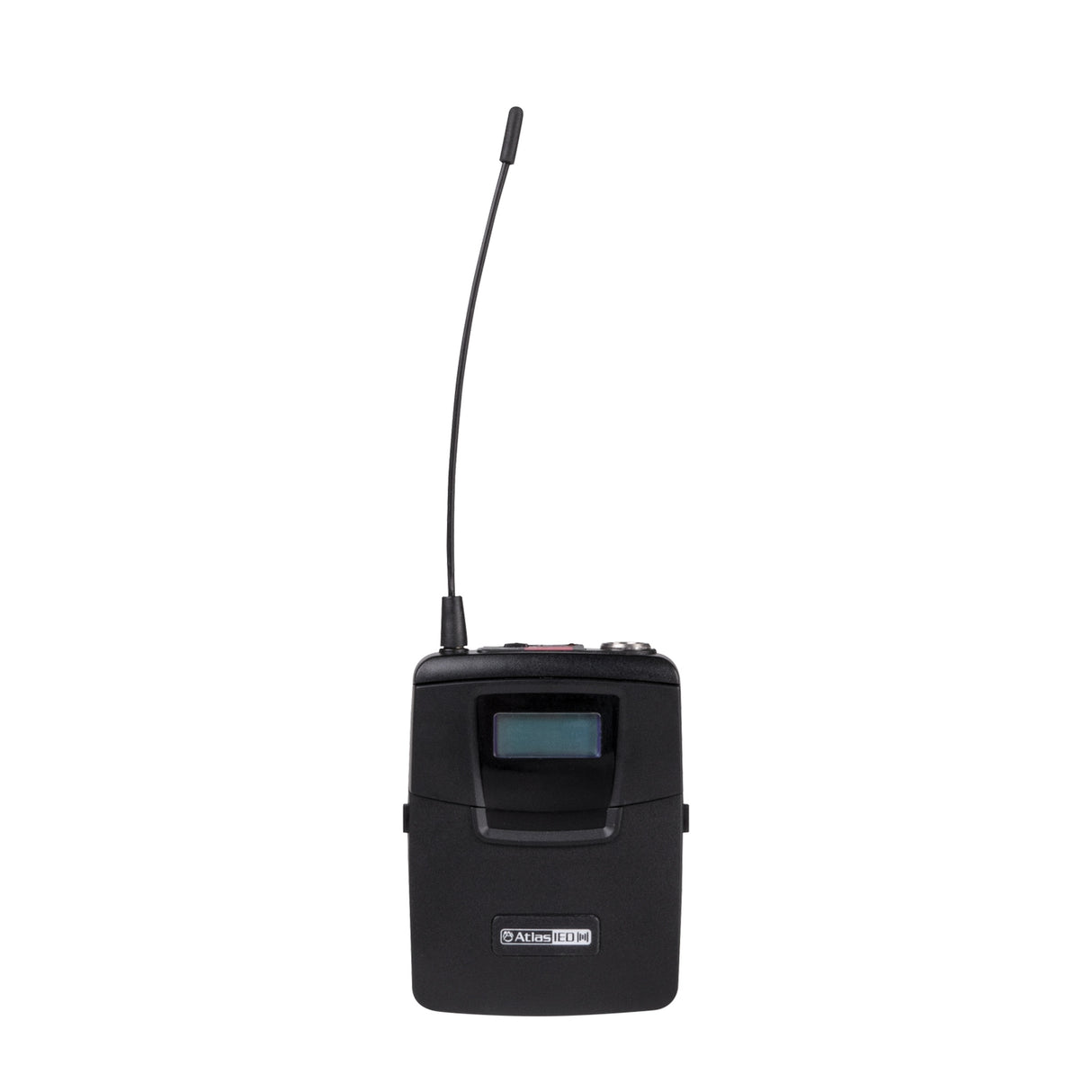

- MWBPT bodypack transmitter w/ belt clip

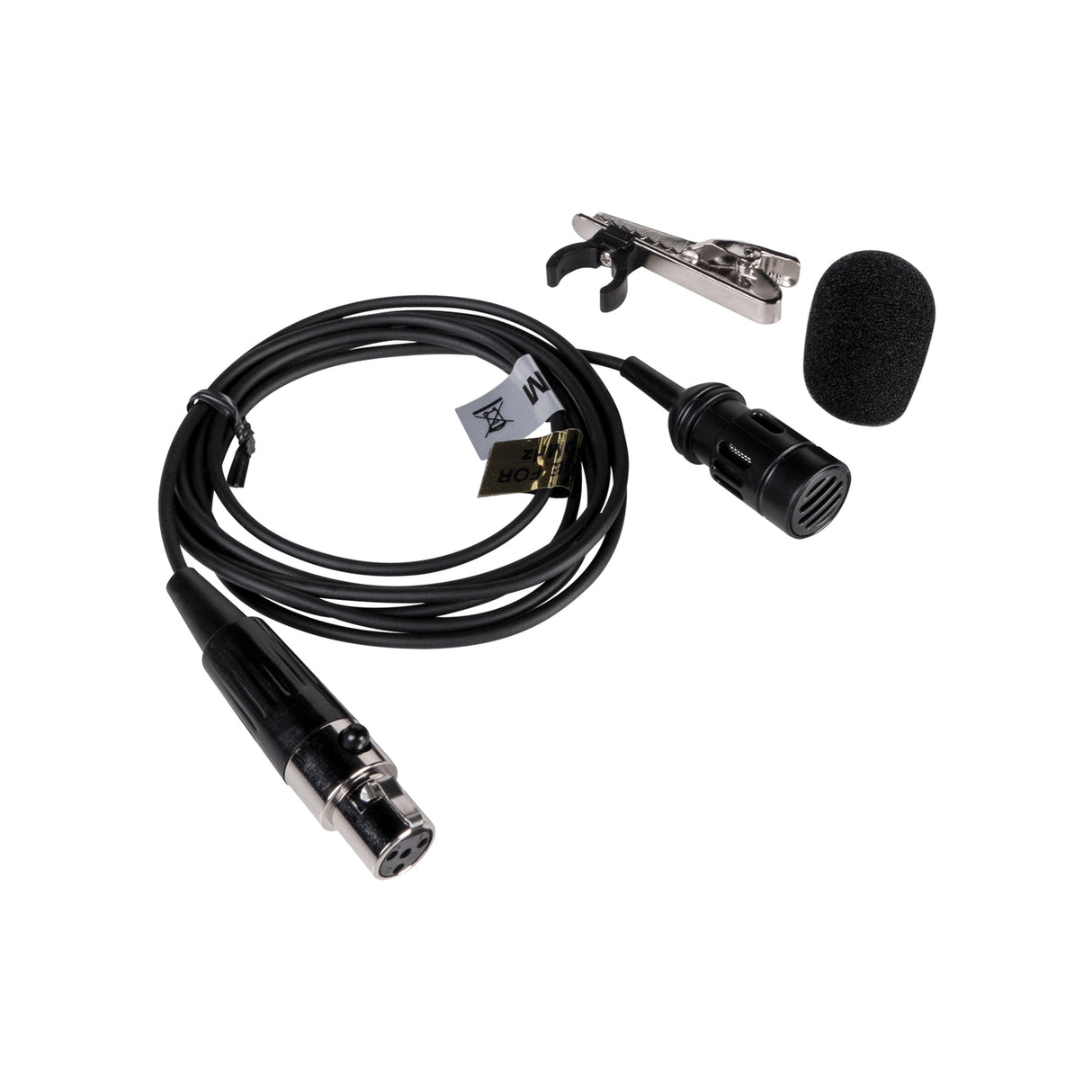

- MWLM lavalier microphone
- AC power adapter
- Interconnecting cables and rack ears (if applicable)
