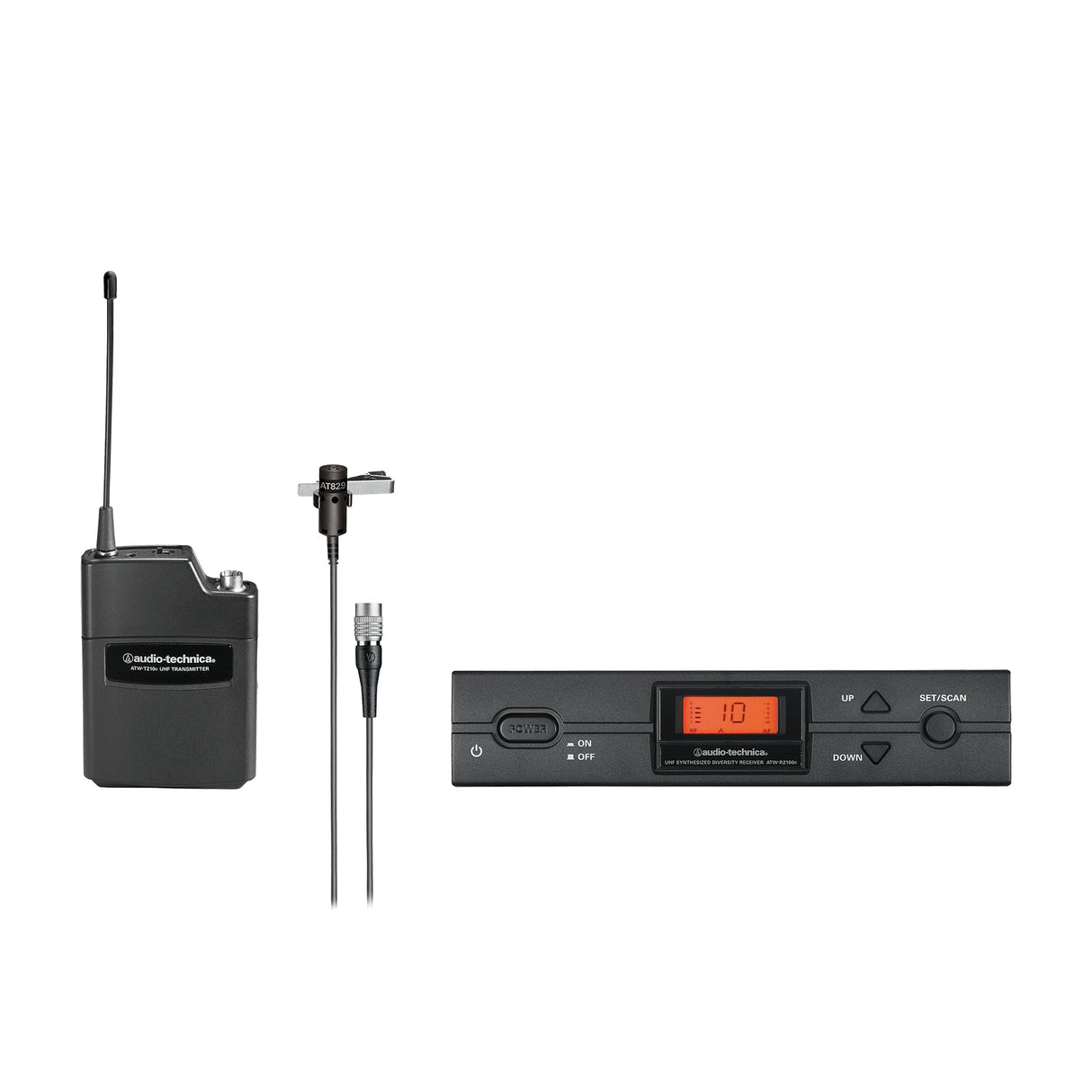

Audio-Technica ATW-2129C Wireless Lavalier Microphone System - I: 487.125 - 506.5 MHz

Audio-Technica ATW-2129C Wireless Lavalier Microphone System

The Audio-Technica ATW-2129C Wireless Lavalier Microphone System is part of Audio-Technica's renowned 2000 Series Wireless System. Designed to be a top-tier, 10-channel frequency-agile UHF wireless system, it includes the ATW-R2100C receiver and the ATW-T210a UniPak transmitter equipped with an AT829cW lavalier microphone, operating within the 487.125-506.500 MHz range (TV 16-20). This system is engineered for high flexibility and is perfect for MI/live performances, fixed installations, public address, A/V rental houses, and places of worship. Despite its professional-level features and capabilities, the 2000 series provides an affordable and high-quality solution to meet your wireless audio needs.

The ATW-2129C Wireless Lavalier Microphone System by Audio-Technica ensures clear sound quality and reliable performance, catering to both beginners and seasoned professionals. It simplifies setup with automatic frequency scanning and offers robust connectivity options, making it highly adaptable to various scenarios. Whether you're performing live, running an event, or installing permanent sound solutions, this wireless system delivers superior audio quality without breaking the bank.

Key Features

• Affordable professional wireless technology with significant advancements
• Ensures clear sound quality and reliable performance
• Simplifies setup with automatic frequency scanning
• Provides flexibility with 10 user-switchable channels
• Supports powered antennas and other RF devices with antenna power availability
• Enhances signal reliability with True Diversity operation
• Minimizes interference with Tone Lock tone squelch system
• Durable metal half-rack receiver with user-friendly controls and LCD display
• Versatile connectivity options with balanced XLR and unbalanced 1/4” output jacks
• Adjustable transmitter power output with high and low settings
• Includes rack-mount kit and detachable UHF antennas for convenience
• Eliminates ground loop hum with ground-lift switch for improved audio quality

Specifications

• Receiving system: True diversity
• Image rejection: 60 dB nominal, 55 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Maximum output level: XLR, balanced: +9 dBV; 1/4" (6.3 mm), unbalanced: +4 dBV
• Balanced audio output attenuator: Two position switch: 0/-12 dB
• Antenna input: BNC-type, 50 ohms, Bias voltage: 12V DC, 60 mA, each
• Power requirements: 12-18V DC, 500 mA
• Dimensions: 210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H (not including BNC connectors or feet)
• Net weight: 1.0 kg (35.3 oz), without accessories
• Accessories included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
• RF power output (50 ohms): High: 30 mW, Low: 10 mW
• Spurious emissions: Following federal and national regulations
• Input connection: Four-pin locking connector (Pin 1: GND, Pin 2: INST INPUT, PIN 3: MIC INPUT, PIN 4: DC BIAS +9V)
• Batteries: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
• Recharging power for NiMH batteries (with ATW-CHG2): U.S./Canada/Latin America: 3.2 V DC - 230 mA x2
• Battery life: High: 7 hours (alkaline), Low: 9 hours (alkaline) (Depending on battery type and use pattern)
• Dimensions: 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
• Net weight: 81 g (2.9 oz), without batteries

Package Contents

• ATW-R2100C receiver
• ATW-T210a UniPak transmitter
• AT829cW lavalier microphone
• Two flexible UHF antennas
• AC adapter
• Rack-mount adapters
