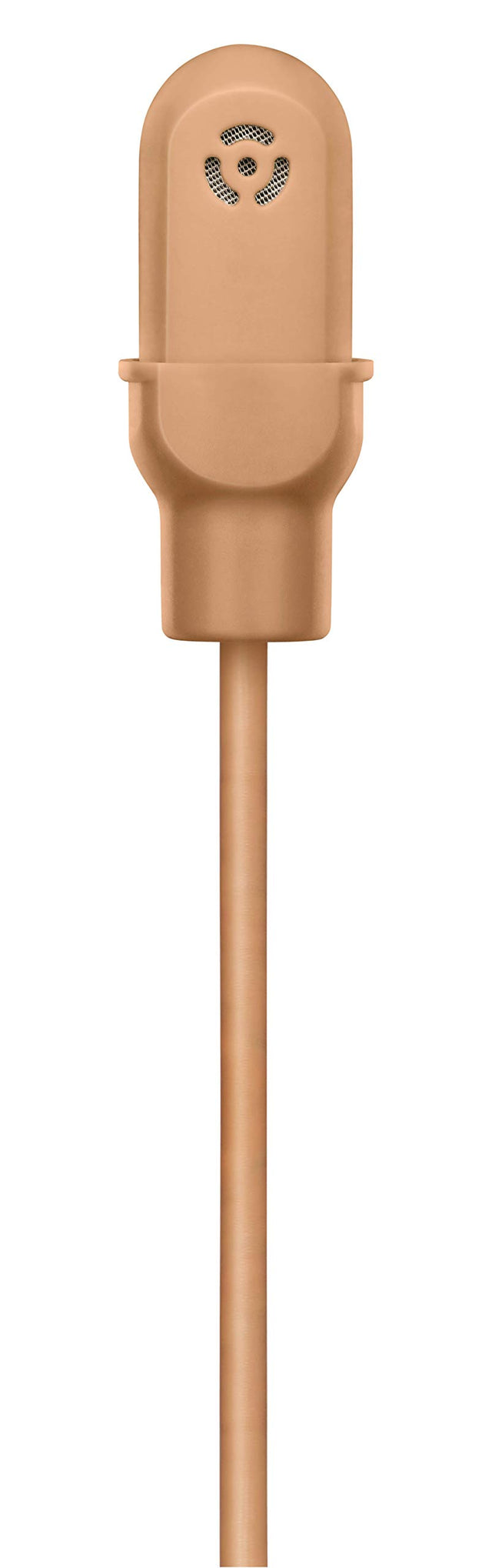

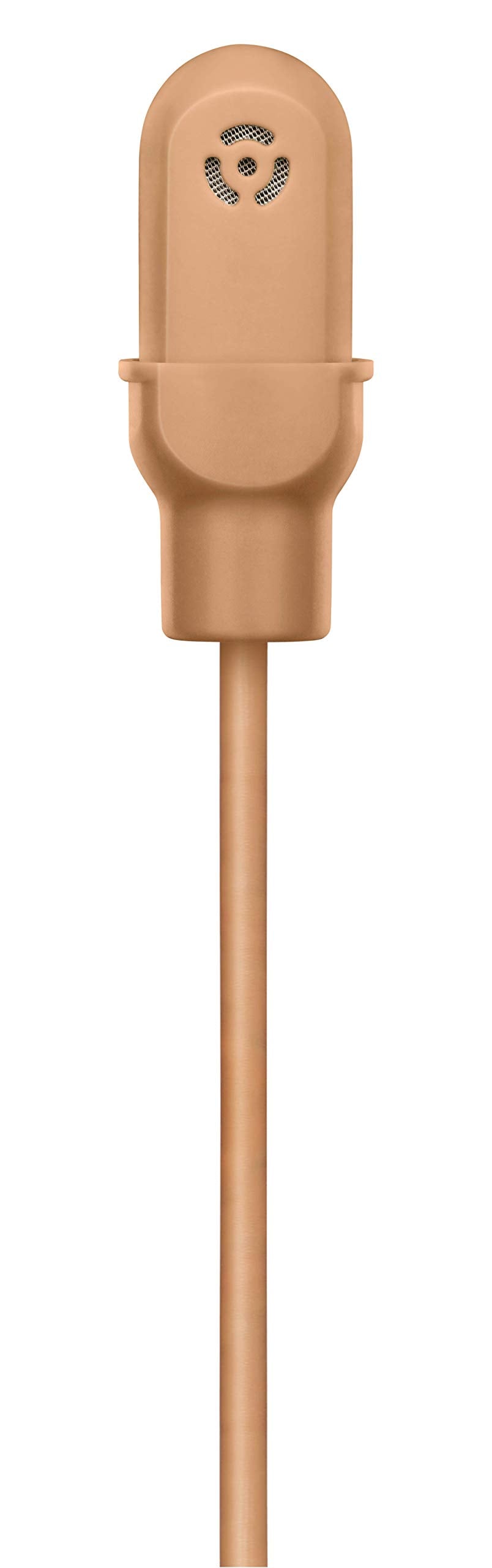

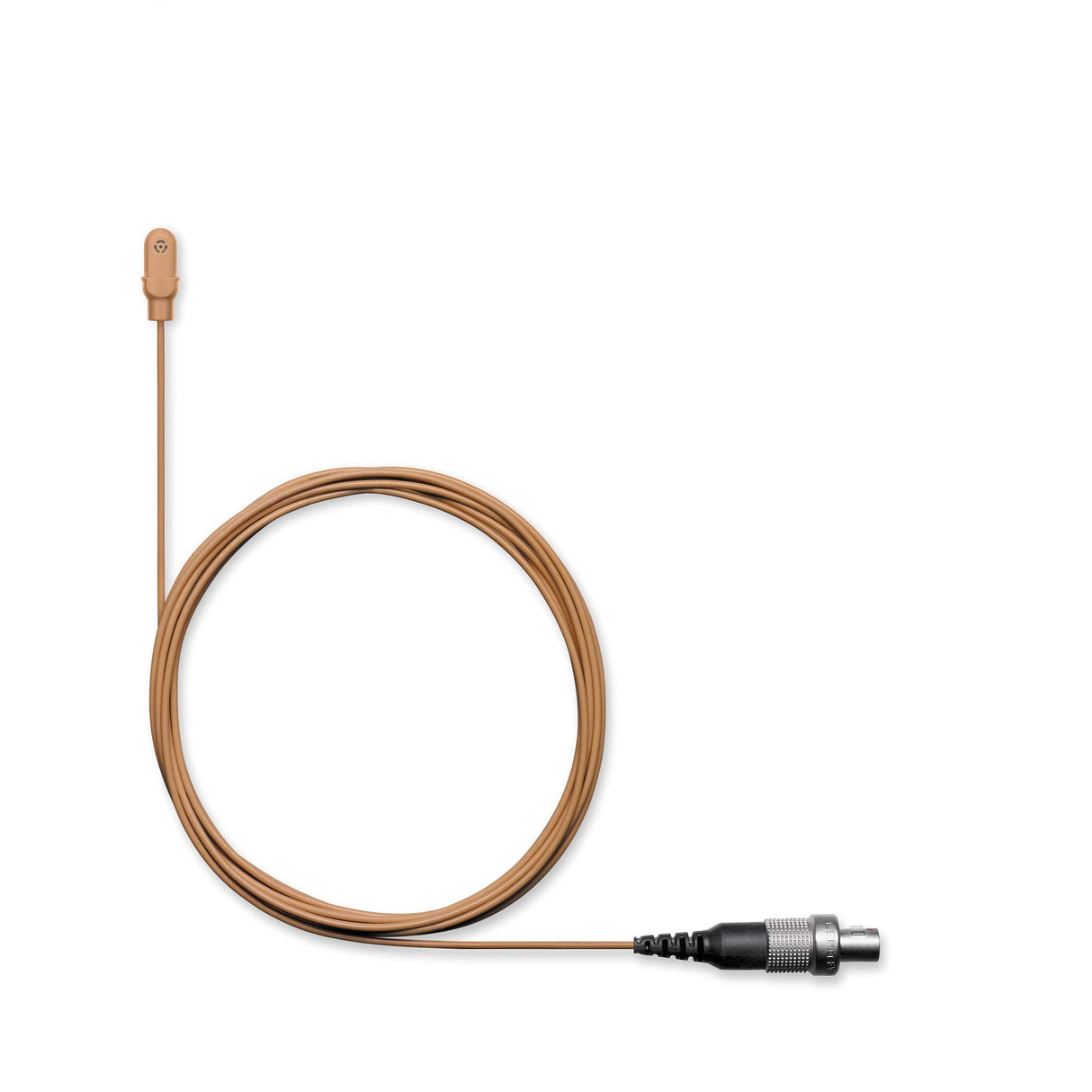

Shure DL4C/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone, Cocoa, MTQG Connector

Shure DL4C/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone, Cocoa, MTQG Connector

The Shure DL4C/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone is an exceptional choice for professionals in need of high-quality audio capture in any environment. With its IP57-rated dust-resistant and waterproof design, this microphone is built to withstand the toughest conditions, from the set of a reality TV show to a professional theatrical tour. It offers neutral, full sound quality that meets the highest audio standards, making it equally at home on the beach or in a broadcast studio.

The revolutionary 1.6 mm Shure Plex cable, originally introduced with the award-winning TwinPlex subminiature microphone, enhances the durability and longevity of the DL4C/O-MTQG-A. This advanced cable features a dual redundant ground that serves as a secondary shield, ensuring robust performance even under demanding conditions. Additionally, the cable exhibits virtually zero memory effect, is resistant to kinks, and can be fully painted to match any aesthetic requirement.

With features like a 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback, the Shure DL4C/O-MTQG-A stands out in its class. The presence cap included with the microphone provides tailored frequency response, offering additional vocal clarity and presence with a 3-4 dB boost near 10 kHz. Available in four different colors and two connector types, this microphone caters to a variety of professional audio needs.

Key Features

• 5 mm omnidirectional subminiature design
• IP57 dust-resistant, waterproof rated
• Neutral, full sound quality for various applications
• Advanced 1.6 mm Shure Plex cable with dual redundant ground
• Immune to memory effect and kinks
• Fully paintable with typical theater paints, pens, and polishes
• Presence cap included for tailored frequency response
• Available in four colors: Black, Cocoa, Tan, White
• Available in two connector types: TA4F (MTQG) and LEMO
• Includes case and multiple accessories

Specifications

• Microphone Capsule: MEMS
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
• Self-Noise: 31 dB SPL-A
• Signal-to-Noise Ratio: 63.0 dB
• Maximum SPL: 132.0 dB SPL @ 1% THD, 1 kHz
• Dynamic Range: 101.0 dB
• Microphone Current Draw: 220 uA, maximum
• Bias Voltage: 5 VDC
• Housing: Molded ABS
• Polarity: MTQG - Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
• Cable Diameter: 1.6 mm
• Cable Length: 66.0 in (1.67 m)
• Net Weight: 15 g (0.53 oz)
• Capsule Dimensions (L x D): 14.5 mm x 5.2 mm

Package Contents

• Shure DL4C/O-MTQG-A DuraPlex Omnidirectional Lavalier Microphone
• Case
• Foam Windscreen
• Snap-fit Windscreen
• Single Tie Clip
• Sticky Mount
• TA4F- MTQG Locking Collar
